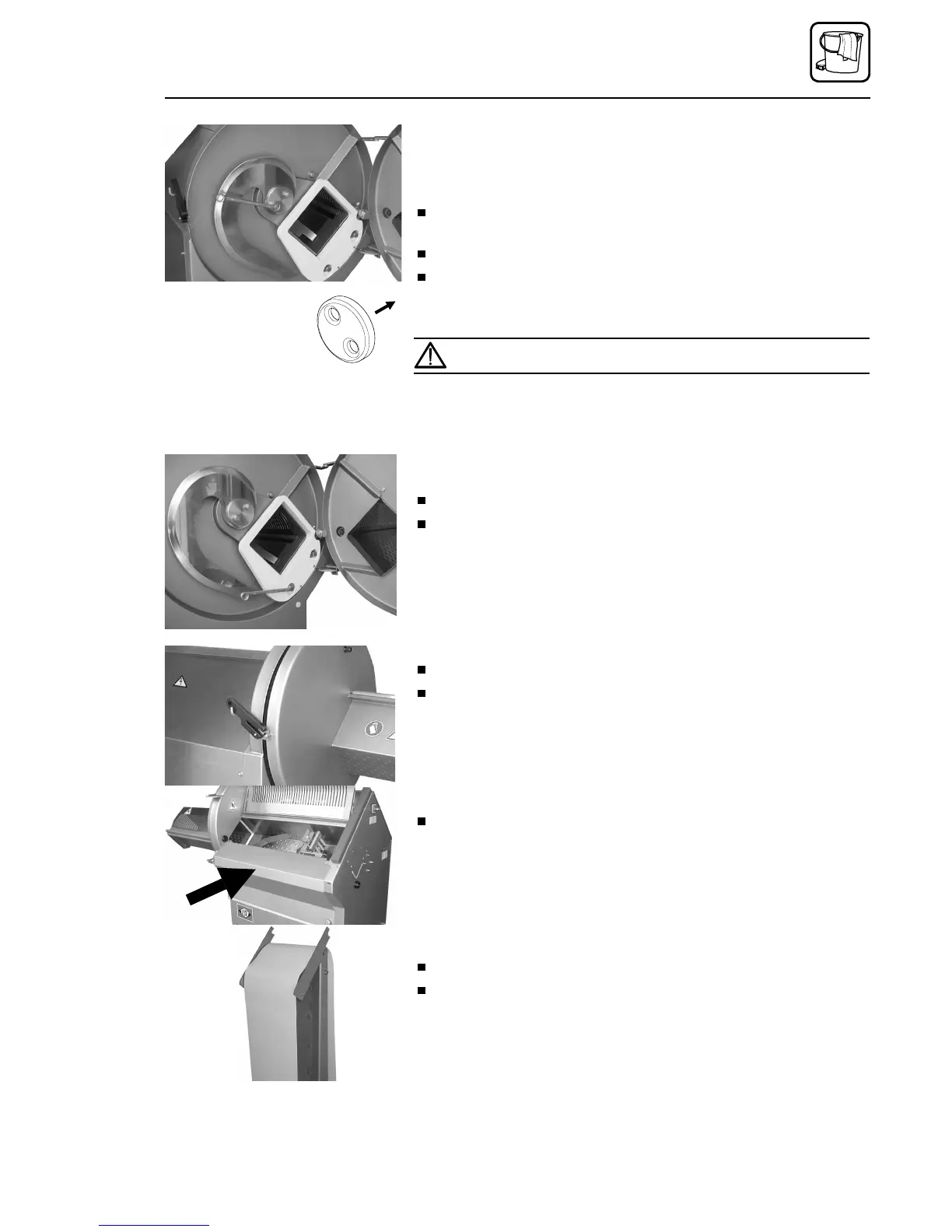

ref. to chapter 14.4: Remounting after cleaning
Mounting of knife:
Place the knife on the knife shaft (wrong fitting is not possible due to
the different diameters of the mounting holes).
Place retaining disc (observe fitting position !).
Tighten hexagon nuts .
Always wear your personal protective clothes and equipment
described in the chapter “ Safety” when handling knifes !
Screw on counterblade:
Fit the conterblade correctly.
Tighten hexagon head cap screws 1.
ATTENTION: the counterblade is fragile. Do not drop it !
Close knife box door:
Place the door latch on the bolt, and relocate it to the left.
Close the knife box door, and move the door latch upright again.
Mounting the feed cover:
Install the feed cover at an angle from above, making sure that it fits
tightly at both ends.
For machines with conveyor
Fit conveyor belt (cf. chapter 7.3)
Mount the conveyor (cf. chapter 7.2)
After this mounting work the machine is ready for operation again.
Cleaning
