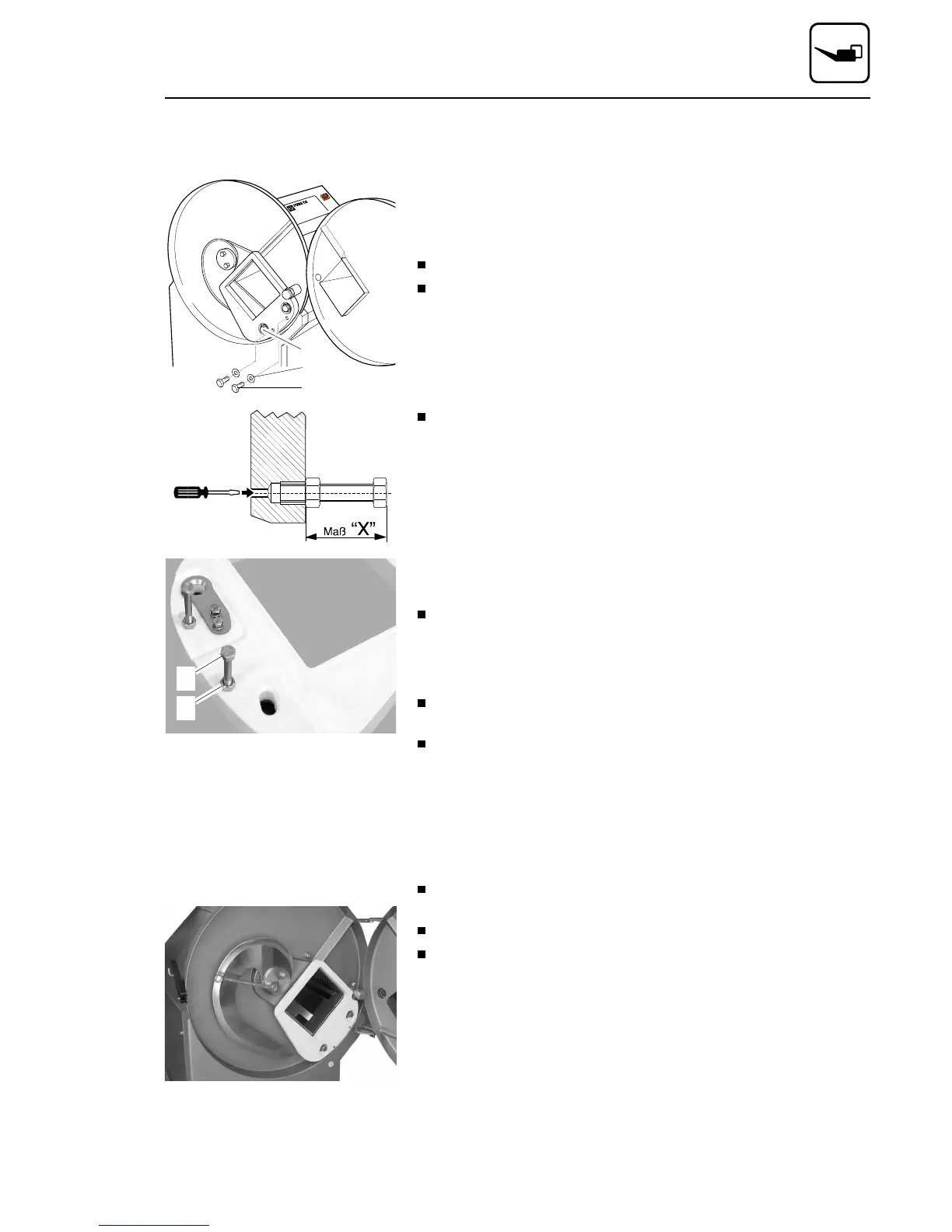

ref. to chapter 15.4. Adjustment of the counterblade
Readjust distance of the counter-blade
Loosen both union nuts 1 half a turn.
Loosen hexagon head screw 3 with washer 2 and unscrew.
Readjust the distance of the counter-blade via hexagon head screws
4 . For this purpose, insert a screwdriver into the front end of the
threaded hole (M6x8) and adjust both hexagon head screws to the
desired degree.
Reduce distance:
Tighten hexagon head screws
Increase distance:
Unscrew hexagon head screws
If the setting is correct
Remove counter-blade and tighten both lock nuts 5 .
Note: Make sure that adjusting screws
4
do not twist thereby!
Insert counter-blade in the correct installation position and secure
with union nuts
1 .
Insert hexagon head screws 2 . with washers 3 . and tighten.
Check:
After this adjustment, turn the knife through the shaft several times
by means of the provided ring spanner.
Close the knife box door
Press the “RELEASE BRAKE” key again:
The “KNIFE BRAKE RELEASED” function is cancelled.
The knife will be adjustet automatically in the correct position. After-
wards the machine is is ready for operation.
5
4
1
2
3
Maintenance
02/2005 123842-GB Page 75
