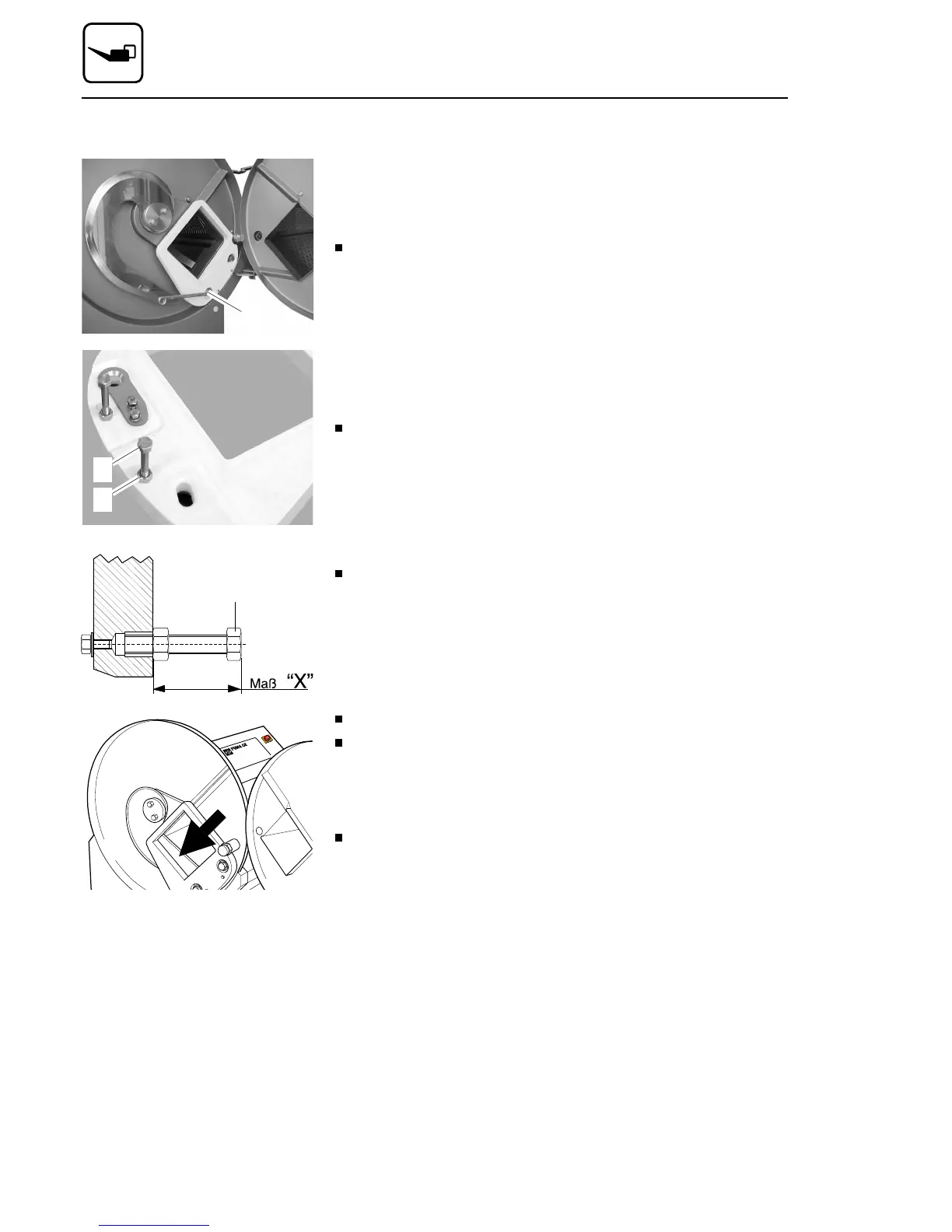

ref. to chapter 15.4. Adjustment of the counterblade
Undo collar nuts 1 and disassemble the counterblade.
Loosen both lock nuts 2 on the back side of the counter-blade
Preset hexagon head cap screws 3 to a height of approx. 49 mm
(Refer to measurement "X" drawing)
Do not tighten lock nuts
2 !
Fit the counterblade correctly, and use collar nuts 1 to screw down.
Check the space between the counterblade and the knife.
The counterblade should be set as closely as possible to the non-
cutting knife edge, but it must not make tight contact !
The gap between cut-off knife and counter-blade should measure 0.5
- 1.0 mm in the lower area (arrow).
If the distance of the counter-blade is too wide or too narrow - readjust
distance. See next page.
3
2
3
1
Maintenance
Page 74 02/2005 123842-GB
