refer to chapter 10.1:Fit / replace conveyor belt in the feeding box

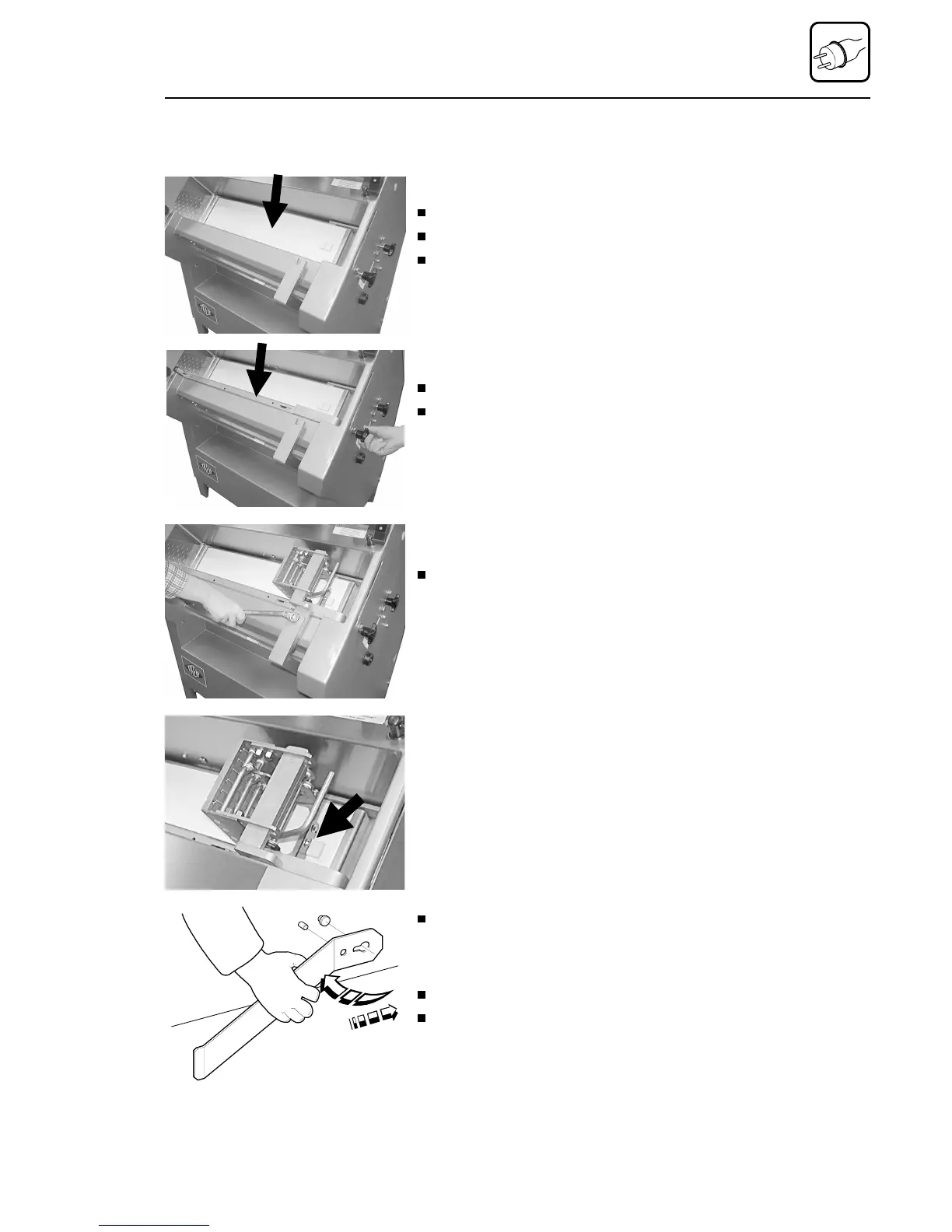

Fitting the conveyor
Open filling cover to the limit stop
Remove feed cover upwards.
Insert the rear conveyor belt (arrow) in the feeding box as shown.
Insert the front conveyor belt (arrow) in the feeding box as shown.
Tighten the star grips.
Install cutting material holder (standard design) and secure.
Note: The raw material holder must be seated in the slot of the guide
block (arrow) of the conveyor belt.
Secure downholder according to the diagram.
Hanging in the feed cover
Close the loading door.
Accessory
02/2005 123842-GB Page 31
