The Sensor front panel

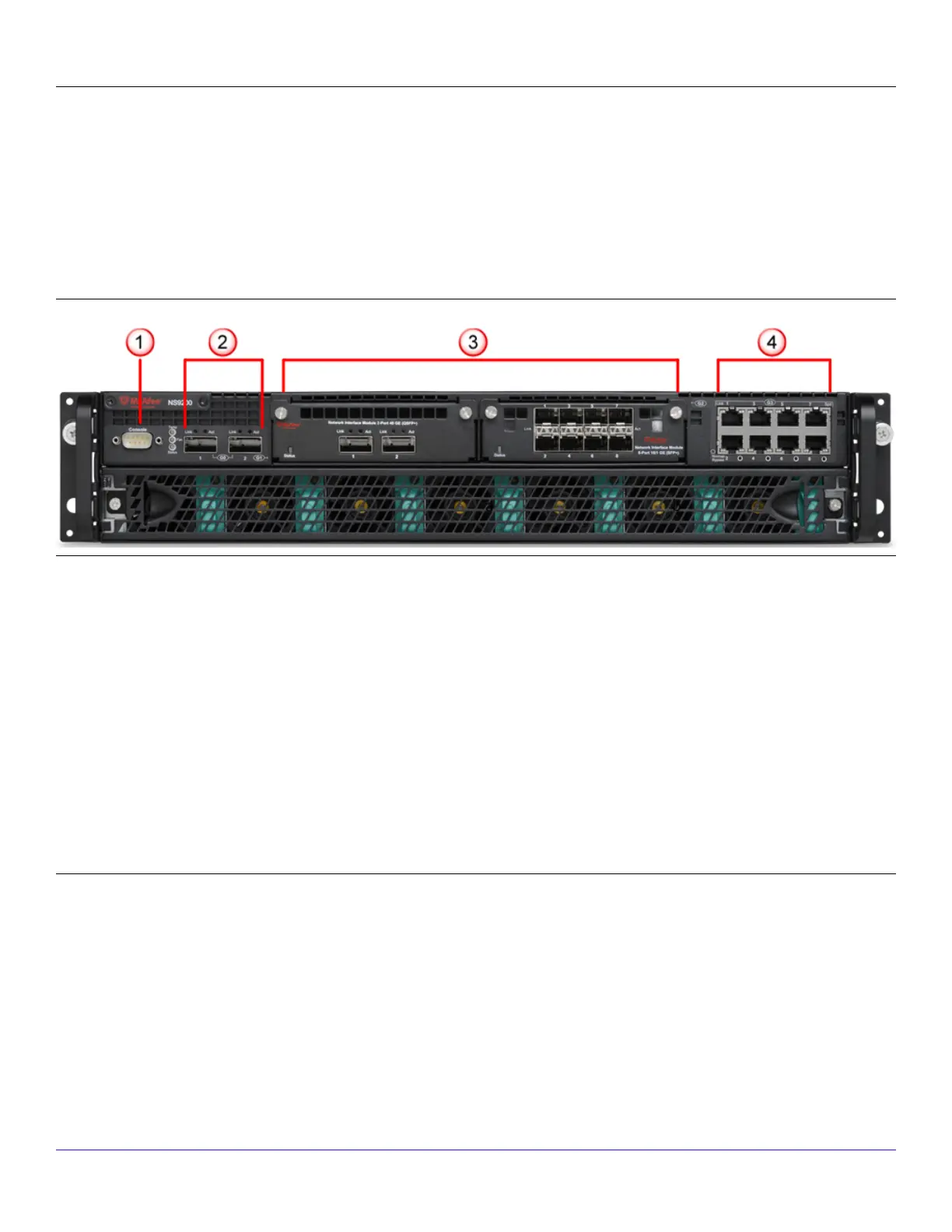

Correlate the pictures with the information following it to understand the components of an NS-series Sensor.
The NS9100/NS9200 Sensor model
Sensor front panel
1. Console port (1)
2. QSFP+ 40 Gigabit Ethernet ports (2)
3. Two slots for I/O modules (Any combination of the interface modules can be used)
QSFP+ 40 Gigabit Ethernet ports (4)
QSFP+ 40 Gigabit Ethernet ports (2)
SFP/SFP+ 1/10 Gigabit Ethernet Monitoring ports (8)
RJ-45 10/100/1000 Mbps Ethernet Monitoring ports (6)
4. RJ-45 10/100/1000 Mbps Ethernet Monitoring ports (8)
The supported transceiver modules are QSFP+, SFP+ (M2M and SM), SFP Fiber (MM and SM) and SFP Copper.
