Selecting the Display Options
The Display Options option on the Display Setup menu allows the user
to customize the main display of the FMS-1650 and select the sources
for each of the displayed parameters. Selecting this option invokes the
Set Display Options configuration popup as shown in Figure 79.
If this FMS-1650 is not monitoring temperature or humidity, then
Temperature and Humidity may be disabled by deselecting these
options on the Set Display Options configuration popup. Similarly, if
the air flow is not being monitored for the purpose of calculating the
air change rate for the monitored room, then Air Changes may be
disabled by deselecting it. The other parameters are always available,
but may be disabled from the display if so desired.
Once the desired parameters to be displayed are selected as shown
in Figure 79, clicking the Next button invokes the Select Source for
Temperature Display configuration popup as shown in Figure 80. Here,
the user may specify the source input for the temperature display. The
default source for the temperature display is Thermistor Input 1. If
so desired, the temperature may be retrieved from the network and
displayed on the main screen by selecting Network Variable on the
configuration popup. The temperature network variable is available
as an analog value object at AV-44. Writing to this variable over the
network effectively updates the displayed temperature when its source
is set to Network Variable.
Clicking the Next button at the temperature source popup invokes
the Select Source for Humidity Display configuration popup as shown
in Figure 82. At this configuration screen, the user may specify the
source input for the humidity display. The default source for the
humidity display is Analog Input 3. If so desired, the humidity reading
may be retrieved from the network and displayed on the main screen
by selecting Network Variable on the configuration popup shown in
Figure 79. This
configuration
popup allows the
main display to be
customized based on
the parameters being
monitored.

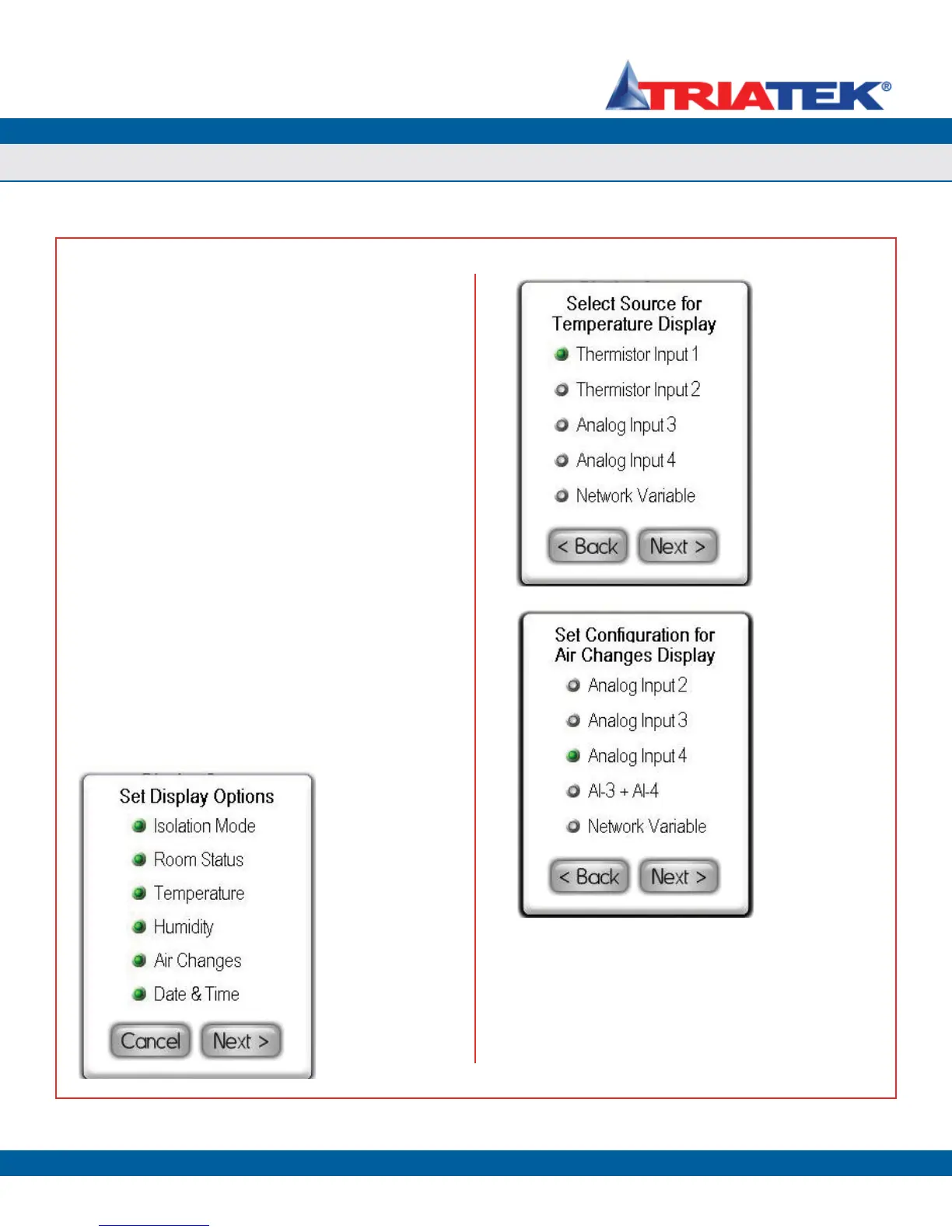

Figure 80. The
temperature value
displayed on the main
screen may originate
from one of five (5)
sources.
Figure 81. The
calculated air change
rate displayed on
the main screen may
originate from one of
five (5) sources.
DISPLAY SETUP
FMS-1650
TRIATEK reserves the right to change product specifications without notice.
- 44 -
Selecting the Display Options
