20

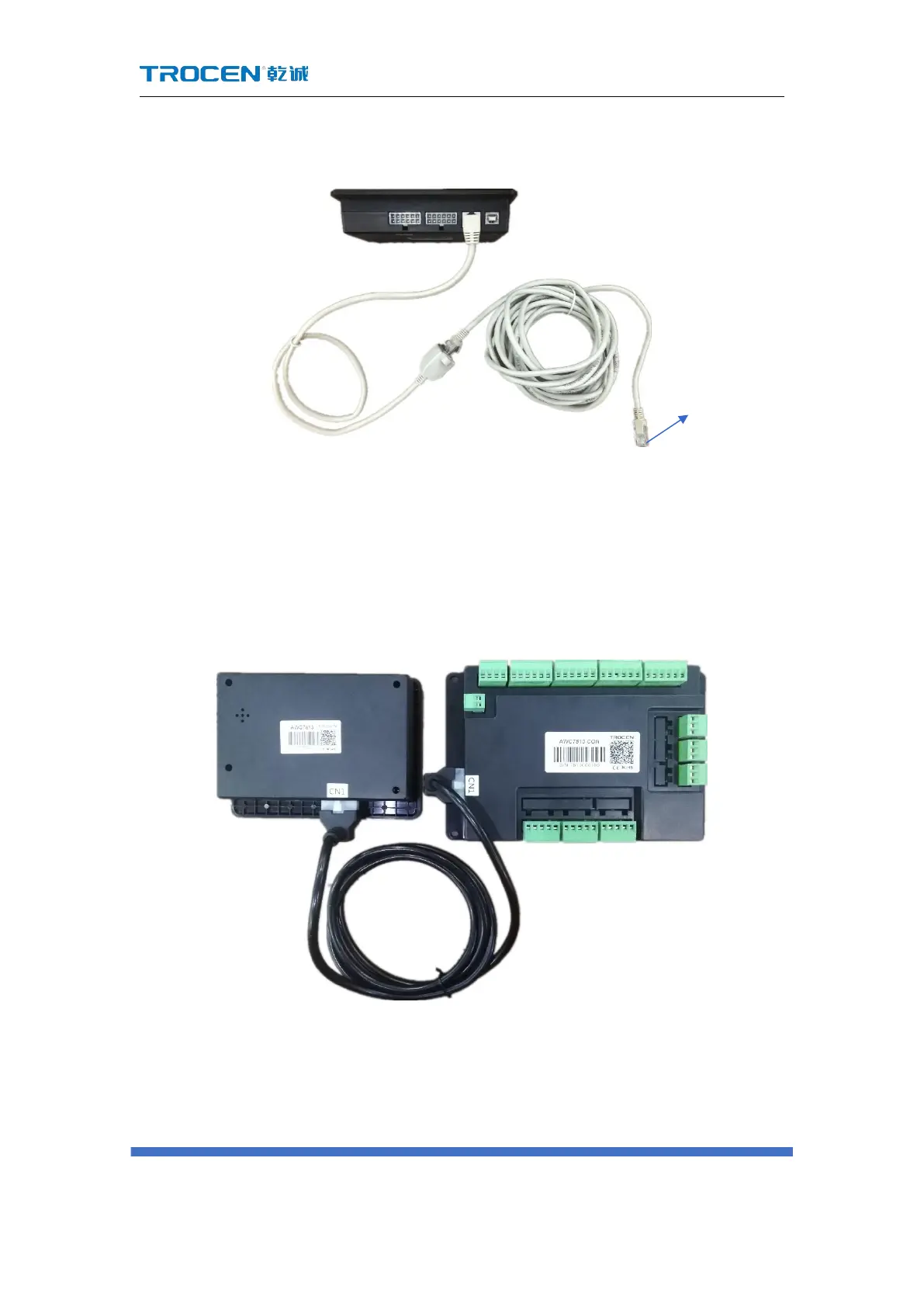

Figure 2-3-3-2 Ethernet interface (side view)
2.3.4 Panel and terminal board interface
Connect the CN1 port of the mainboard and the wiring board through the CN
line.
Figure 2-3-4 Connection port of panel and wiring board
Connect to PC
