AWC7813 motion controller user manual
WWW.SZTROCEN.COM
33
（
0
，
Y
-
Max
）
（X
-
Max，0）
（0，Y
-
Max）
（X
-
Max，0）
（0，0）

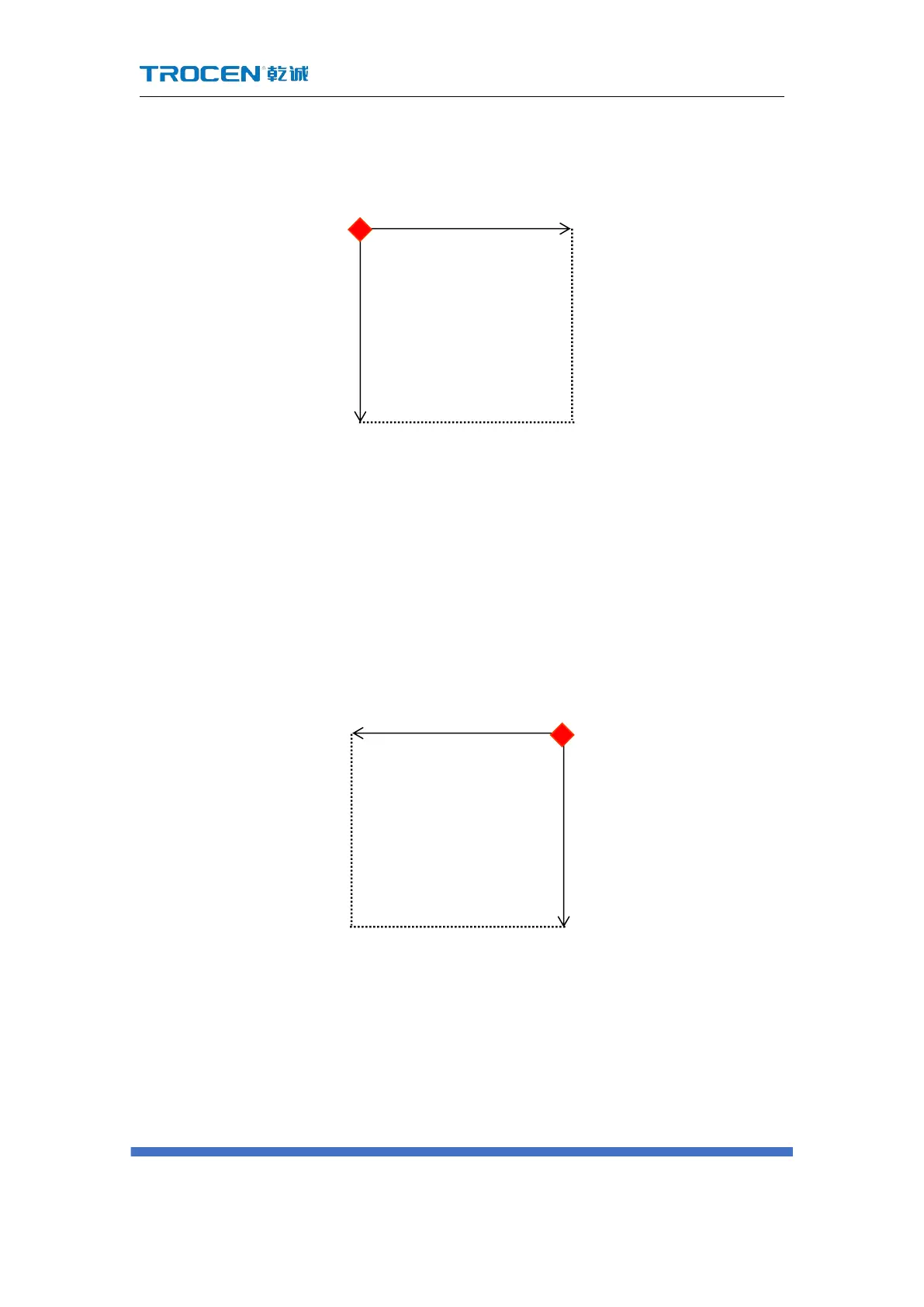

Y-axis coordinate increases when the laser head moves down, as shown in the
following figure:
3.6.2 The coordinate system with the machine zero in the upper
right corner
When the machine zero ( the machine limit position) is in the upper right corner,
the X-axis coordinate increases when the laser head moves to the left, and the Y-axis
coordinate increases when the laser head moves down, as shown in the following
figure:
3.6.3 The coordinate system with the machine zero in the lower
left corner
When the machine zero (the machine limit position) is at the lower left corner,
the X-axis coordinate increases when the laser head moves to the right, and the
（0，0）
