Trocen AWC7813 - The Coordinate System with the Machine Zero in the Lower Right

AWC7813 motion controller user manual
WWW.SZTROCEN.COM
34
（0，Y
-
Max）
（
X
-
Max
，
0
）
（
0
，
0
）
（X
-
Max，0）
（0，Y
-
Max）

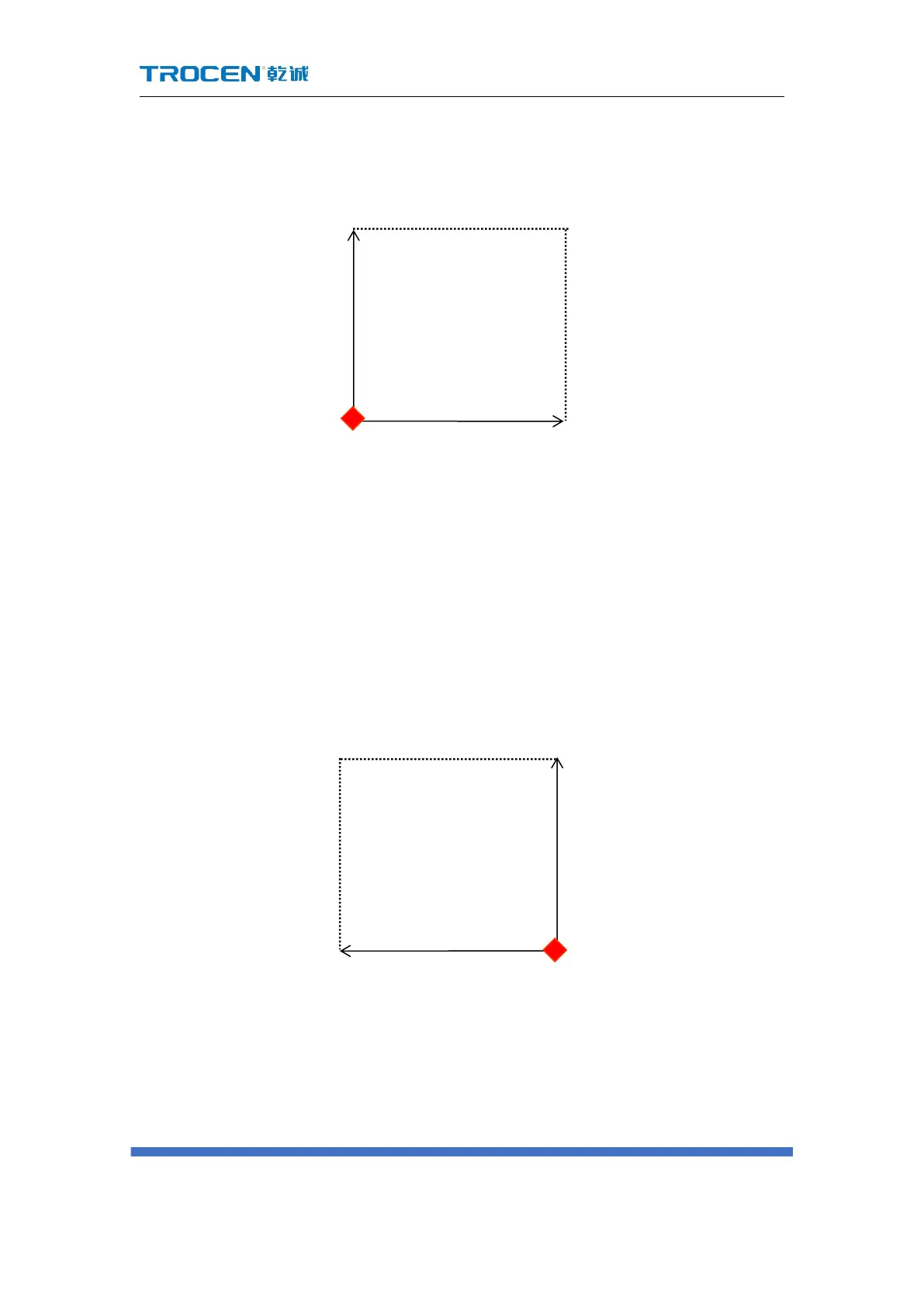

Y-axis coordinate increases when the laser head moves up, as shown in the following
figure:
3.6.4 The coordinate system with the machine zero in the lower
right corner
When the machine zero ( the machine limit position) is in the lower right corner,
the X-axis coordinate increases when the laser head moves to the left, and the Y-axis
coordinate increases when the laser head moves up, as shown in the following
figure:
（0，0）
