The number of arrays on the X axis.
The number of arrays on the Y axis.
The horizontal length of the graphic.
The longitudinal length of the graph. 【X size】 and 【Y size】
indicate the size of the graphic. Combining the two with the
coordinates of the anchor point can determine whether the
graphic is beyond the interface. For details, please refer to 4.3
Why does the prompt "Beyond border limit! Continue?" appear.
3.7.2 Layer parameters of processing files
In the Figure3-1-3 Main interface area division interface, click the numeric key after
【File name】→【Layer1】→【Speed】/【Power1】to modify the speed and power
of the processing file.

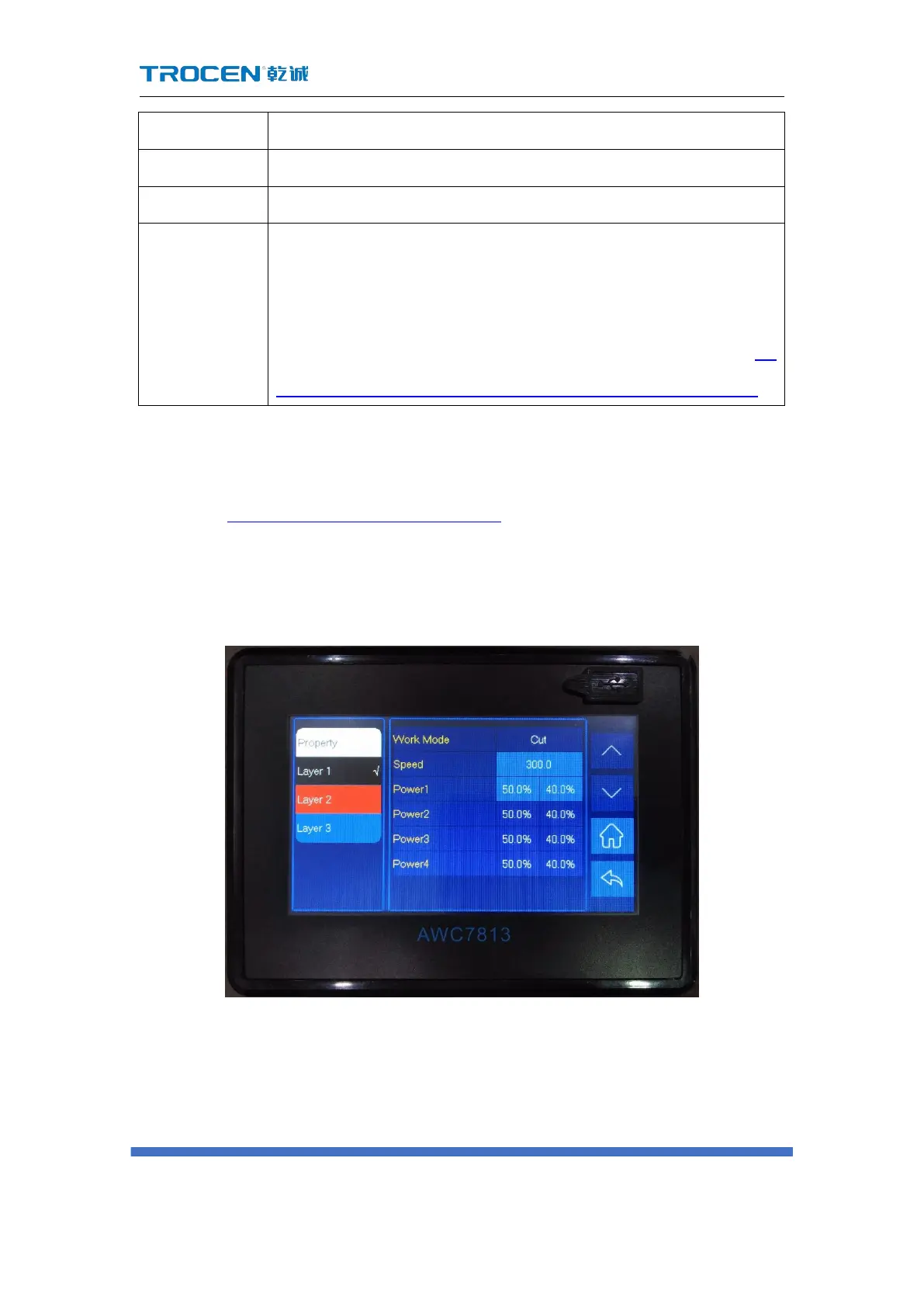

Figure3-7-2 Layer parameters graph
