AWC7813 motion controller user manual

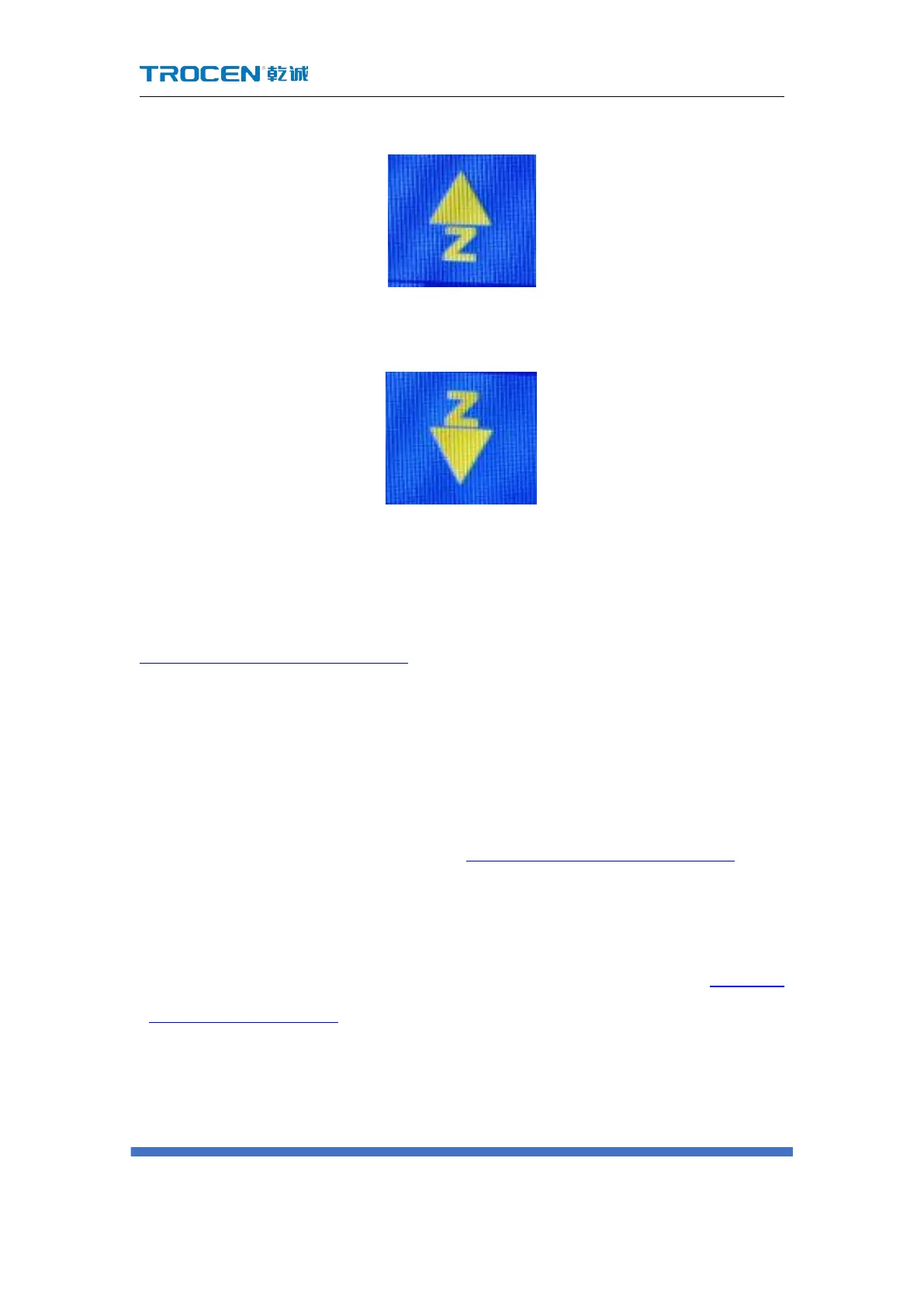

Figure3-3-3-1 Z axis up key
2) Z axis down move key, control Z axis to move down.
Figure3-3-3-2 Z axis down key
3.4 Processing time display area
Mainly shows the working time of the current file, for details, please refer to
Figure3-1-3 Main interface area division.
3.5 Status display area
When working, the status display area shows the proportion of the current file
completed; when not working, it shows as idle; when the current work is paused, it
shows as pause. For details, please refer to Figure3-1-3 Main interface area division.
3.5.1 Lock screen, unlock screen
To prevent misoperation, the screen can be locked if necessary. In the Figure3-1-3
Main interface area division interface, click anywhere in the time and status area in the
lower left corner, a lock screen will appear, and all buttons on the screen will be
invalid; click the lock screen again to unlock.
