AWC7813 motion controller user manual

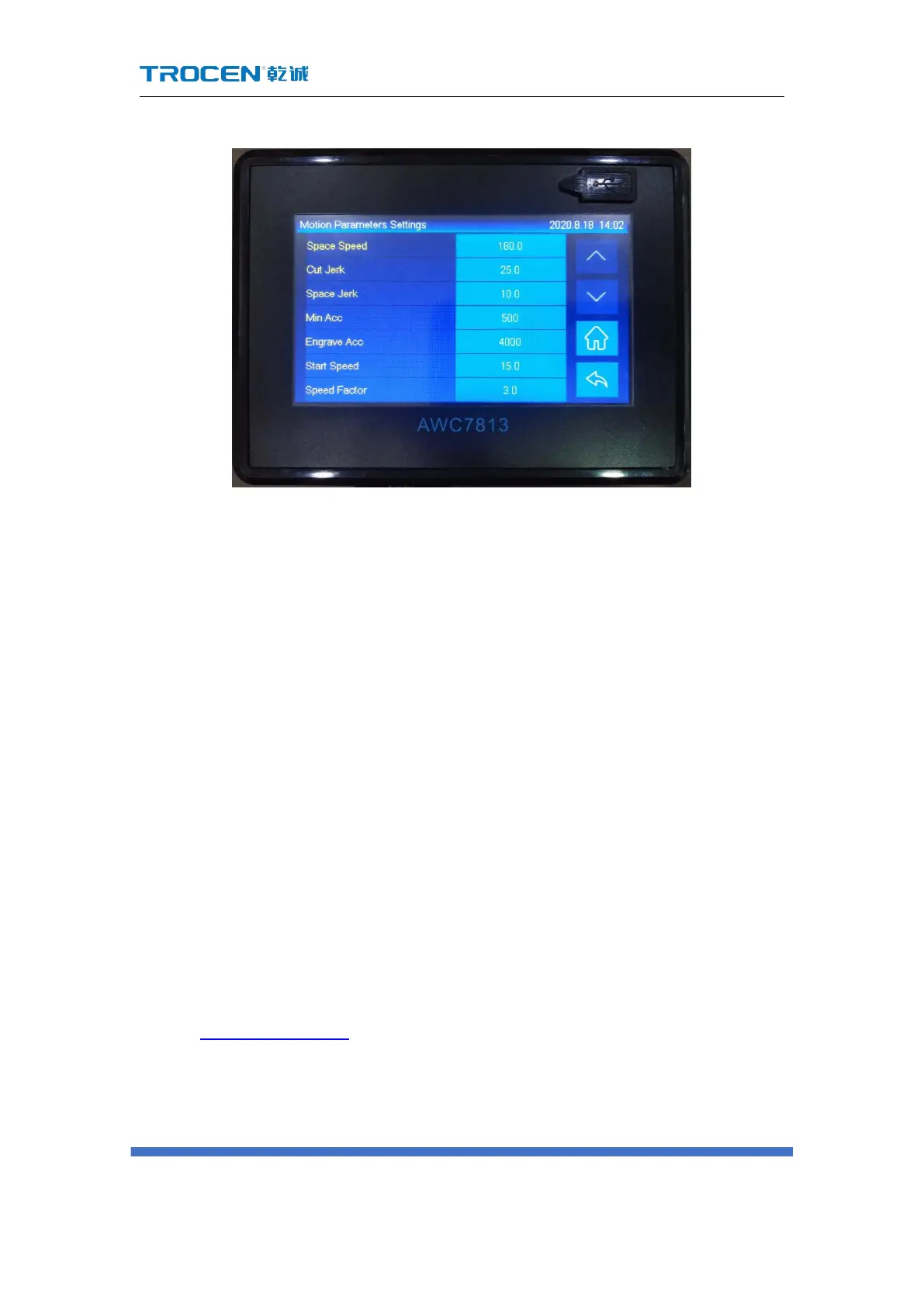

Figure3-14 Motion parameters settings
3.14.1 Description of each parameter
3.14.1.1 Space Speed
（1）Definition
The moving speed of the laser head when the laser tube does not emit light
under working conditions. The unit is mm/s.
（2）Value Ranges
Depending on the machine's endurance speed, the value increases or decreases
in units of 50. The maximum value is the smaller value of【Max Speed】of X and Y axis
parameters. For example, the【Max Speed】 in 【X Axis Parameters】 is 500, and the
【Max Speed】in【Y Axis Parameters】 is 600. At this time, the maximum value of
【Space Speed】 is 500.【Space Speed】 cannot be set too small, otherwise the
efficiency of processing files will be too low.【Max speed】 of axis parameters please
refer to 3.16.1.9 Max Speed.
