TSC TTP-244 Plus Programming Manual

TSC AUTO ID Technology Co., Ltd. 69 Copyright 2013 All Rights Reserved.
 200 DPI: 1 mm = 8 dots
300 DPI: 1 mm = 12 dots
 Recommended max. height of reversed black area is 12 mm at 4” width. Height of reversed
area that is larger than 12 mm may damage the power supply and affect the print quality.
 Max. print ratio is different for each printer model. Desktop and industrial printer print ratio
is limited to 20% and 30% respectively.
 This command has been supported since V6.56 EZ and later firmware.

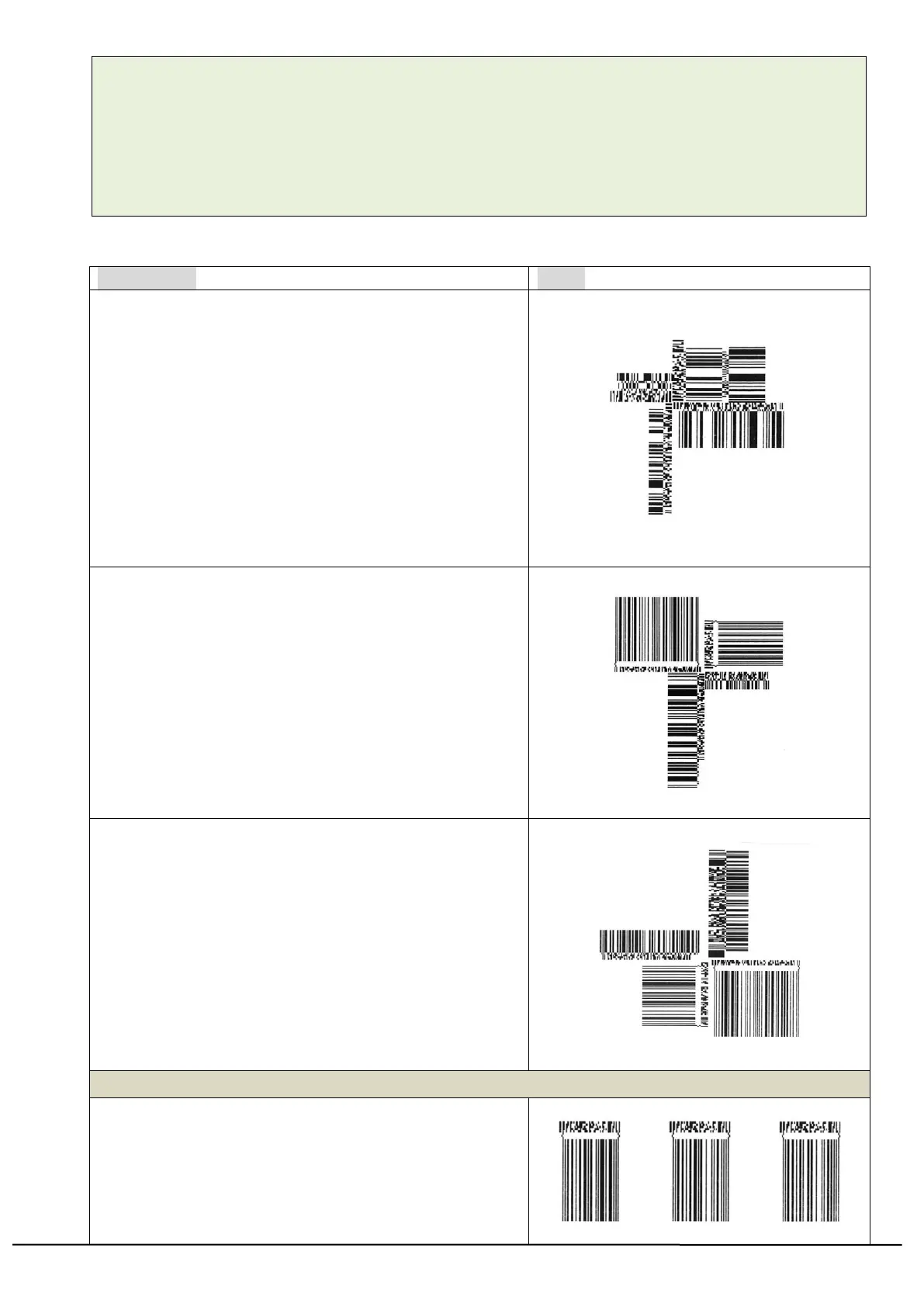

Example
Sample code
Result
SIZE 100 mm,100 mm
GAP 0,0
DIRECTION 1
CLS
RSS 300,300,"RSS14",0,2,2,"1234567890|ABCDEFG"
RSS 300,300,"RSS14T",90,2,2,"1234567890|ABCDEFG"
RSS
300,300,"RSS14S",180,2,2,"1234567890|ABCDEFG"
RSS
300,300,"RSS14SO",270,2,2,"1234567890|ABCDEFG"
PRINT 1,1
SIZE 100 mm,100 mm
GAP 0,0
DIRECTION 1
CLS
RSS 300,300,"RSSLIM",0,2,2,"1234567890|ABCDEFG"
RSS
300,300,"RSSEXP",90,2,2,22,"1234567890|ABCDEFG"
RSS 300,300,"UPCA",180,2,2,"1234567890|ABCDEFG"
RSS 300,300,"UPCE",270,2,2,"000|ABCDEFG"
PRINT 1,1
SIZE 100 mm,100 mm
GAP 0,0
DIRECTION 1
CLS
RSS 300,300,"EAN13",0,2,2,"123456789012|ABCDEFG"
RSS 300,300,"EAN8",90,2,2,"1234567|ABCDEFG"
RSS
300,300,"UCC128CCA",180,2,2,25,"1234567890|ABCDEFG"
RSS
300,300,"UCC128CCC",270,2,2,25,"1234567890|ABCDEFG"
PRINT 1,1
Example of UPCE mode
SIZE 4,1
GAP 0,0
DIRECTION 1
CLS
REM UPCE Rule 1: 00abc0000hij = abhijc, where c = 0-2
RSS 10,10,"UPCE",0,2,2,"001200000456|ABCDEFG"
RSS 210,10,"UPCE",0,2,2,"001210000456|ABCDEFG"

TSC TTP-244 Plus Specifications

General

Resolution	203 dpi
Print Speed	4 ips
Print Method	Thermal Transfer / Direct Thermal
Weight	2.5 kg
Max. Print Width	4.25 inches
Max. Print Length	90 inches
Processor	32-bit RISC CPU
Interface	RS-232
Label Width	1 inch to 4.4 inches
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	5°C to 40°C
Storage Temperature	-40°C to 60°C
Humidity	25% to 85% non-condensing
Label Thickness	0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Dimensions	232 mm (W) x 156 mm (H) x 288 mm (D)
