Unipulse F325 User Manual

57
7 Settings and Operations Related to Hold
57
Settings and Operations Related to Hold
Chapter
7

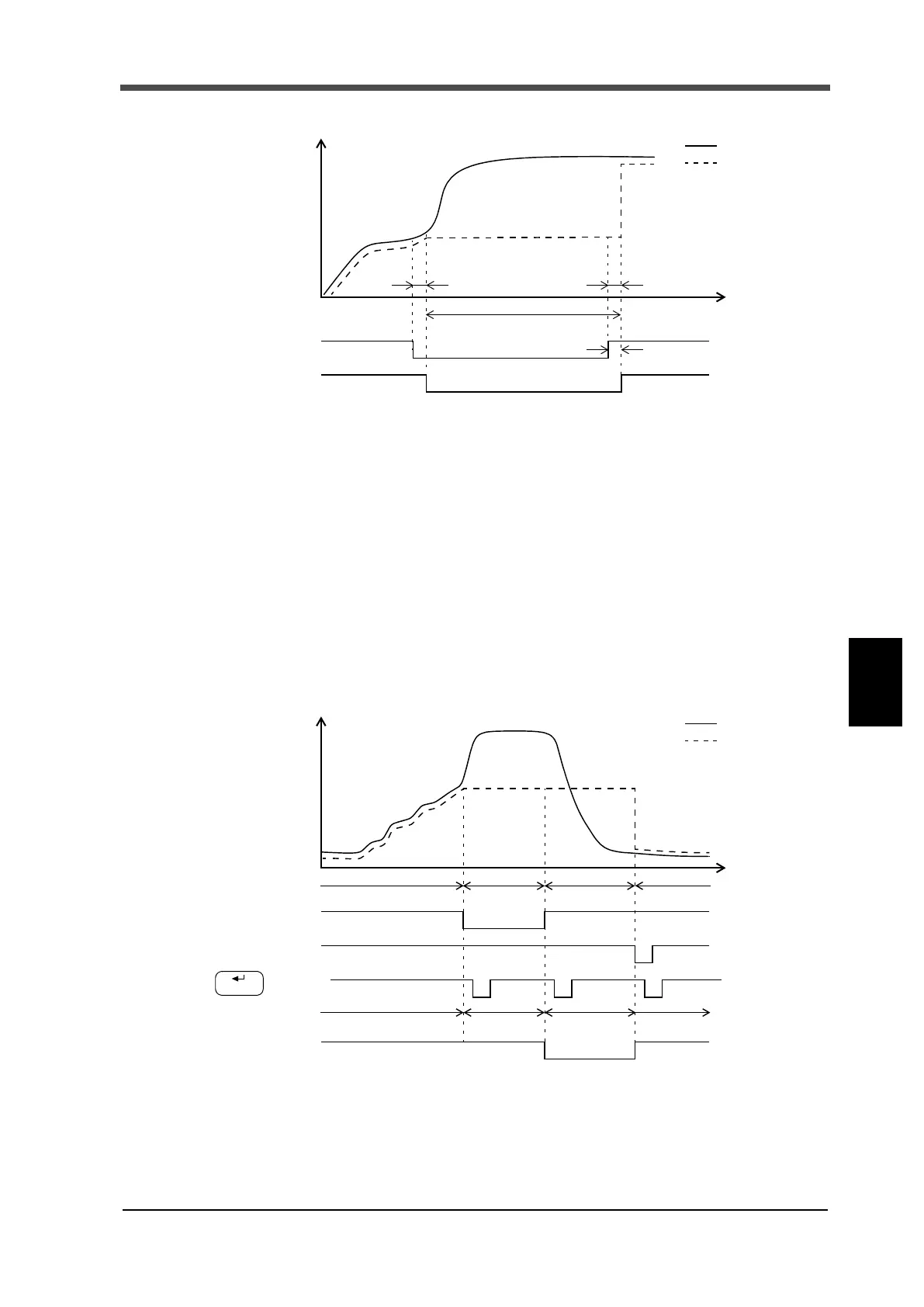

●Timing chart
* Hold output is performed if a hold is set to output selection 1 or output selection 2.
t1: The time from the point where a HOLD signal is input to the point where an indicated value is
held.
t2: The time from the point where a HOLD signal is canceled to the point where an indicated value
returns to tracking.
t3: Minimum reset signal range required for releasing a hold.
When hold fix section is 1: ON
●Sample hold operation
* Hold output is performed if a hold is set to output selection 1 or output selection 2.
Time
Sensor input value
Indicated value
HOLD input
OFF
ON
Hold
t3
t2t1
Hold output
OFF
ON
t1 to t3: Sampling rate is
2: 3000 times/sec. Approx. 2mS
1: 300 times/sec.
0: 30 times/sec.
Approx. 11mS
Approx. 101mS
Time
Sensor input value
Indicated value
HOLD LED
Off Flashing Off
HOLD input
OFF
ON
Hold output
OFF
ON
Hold
input
HOLD
OFF
ON
key
Fixed
Hold reset
H.RESET
OFF
ON
On
input
