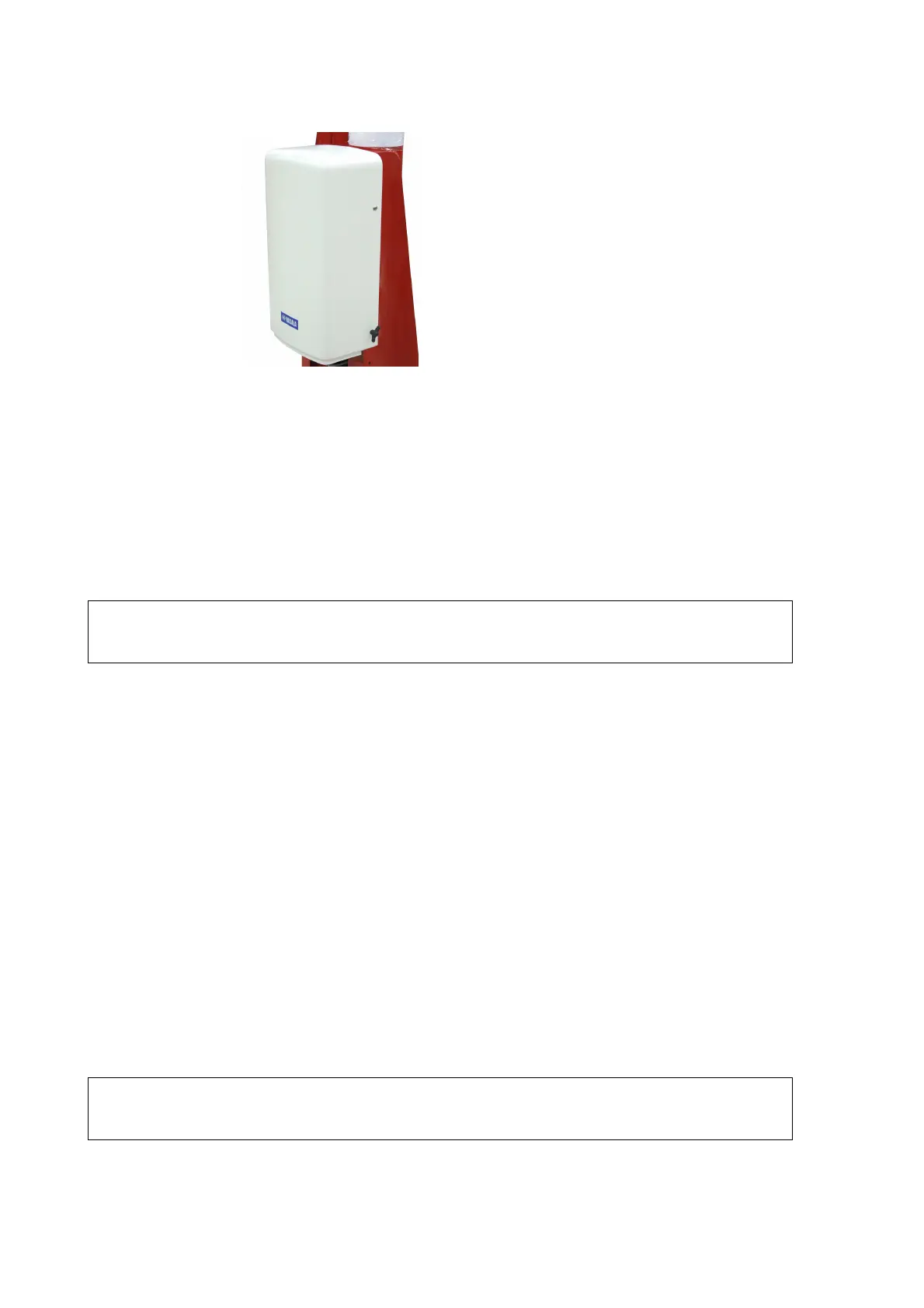

Figure 101 Upper Interface Unit Cover
Disassembly for Transportation
If the LT31 system or a single LT31 transmitter or receiver has to be
transported to a different location, the instrument has to be disassembled
to the same degree as during delivery and shipment.
NOTE
Only in a disassembled state, the LT31 system can be protected from
damages due to transportation shocks.
1. Remove upper and lower interface unit covers.
2. Remove measurement head cover.
3. Remove measurement unit and store it carefully in a separate box.
4. Remove weather protection hood.
5. Store interface unit covers, measurement head cover, weather
protection hood and separately packed measurement unit together
with the mast in the original transportation box.
6. Remove PWD Forward Scatter Sensor and store it carefully in the
provided box.
7. Remove optional LM21 with support arm and store it carefully in a
separate box.
8. Remove optional LT31OBS and store it carefully in a separate box.
For an illustration of the disassembled state, see Figure 46 on page 93
and Figure 65 on page 109.
NOTE
Use the original boxes from the delivery during the transportation of the
equipment.
