Item List

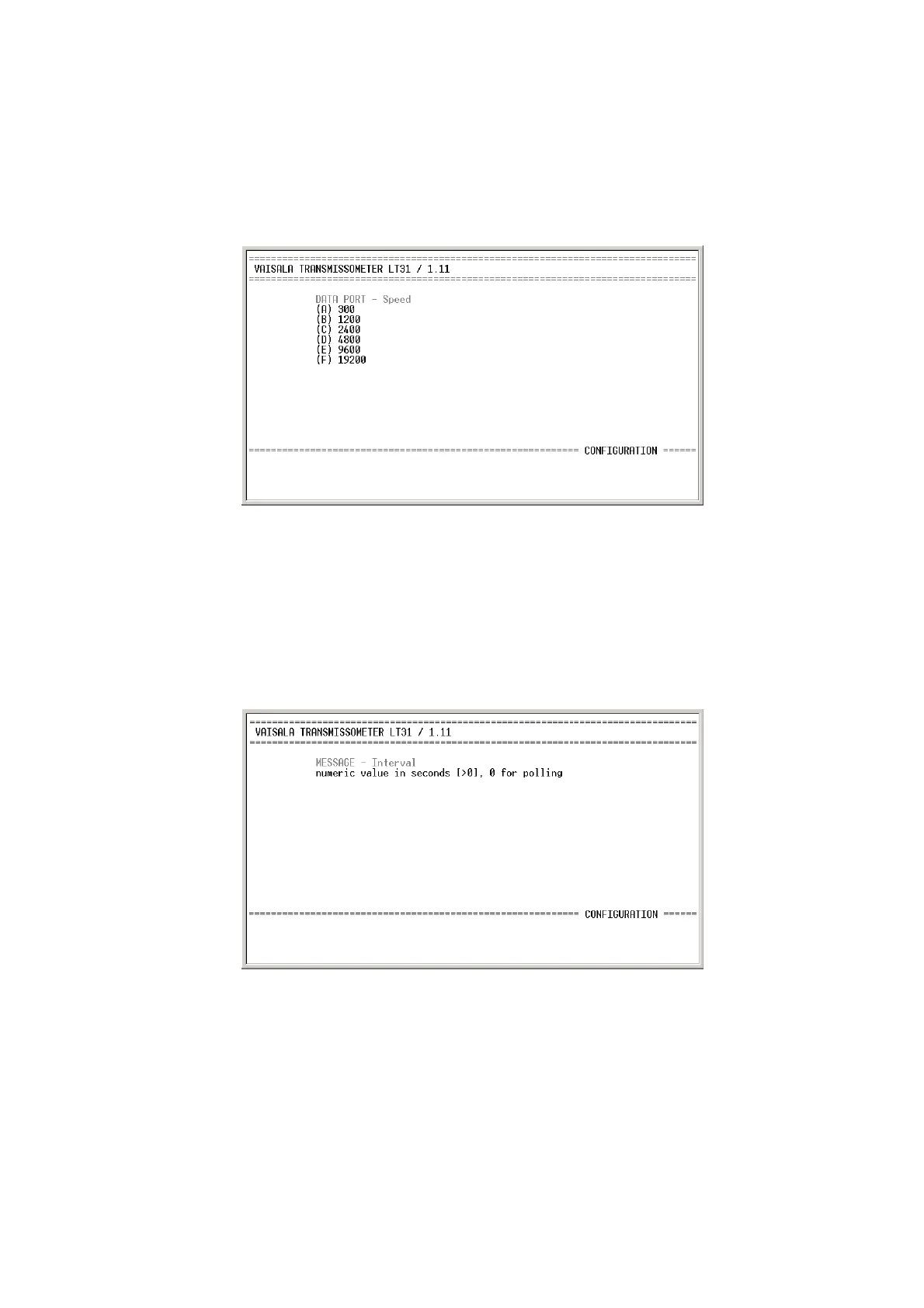

In Figure 104 below, the configuration is completed by choosing an
offered speed from the list by typing the appropriate character, in this
case, E for 9600 bps.
0401-128
Figure 104 Configuration Menu: Data Port Speed
Free-form Input
In Figure 105 below the configuration is completed by giving a valid
value for the message interval. For example, 15 for 15 s automatic
message interval or 0 for disabling automatic message interval (polled
mode).
0401-129
Figure 105 Configuration Message Interval
System Status
The System Status menu (see Figure 106 on page 159) gives the
possibility to have a quick overview into the entire LT31 system. All
To Next Page
