User's Guide ______________________________________________________________________
246 _________________________________________________________________ M210667EN-C
0401-119

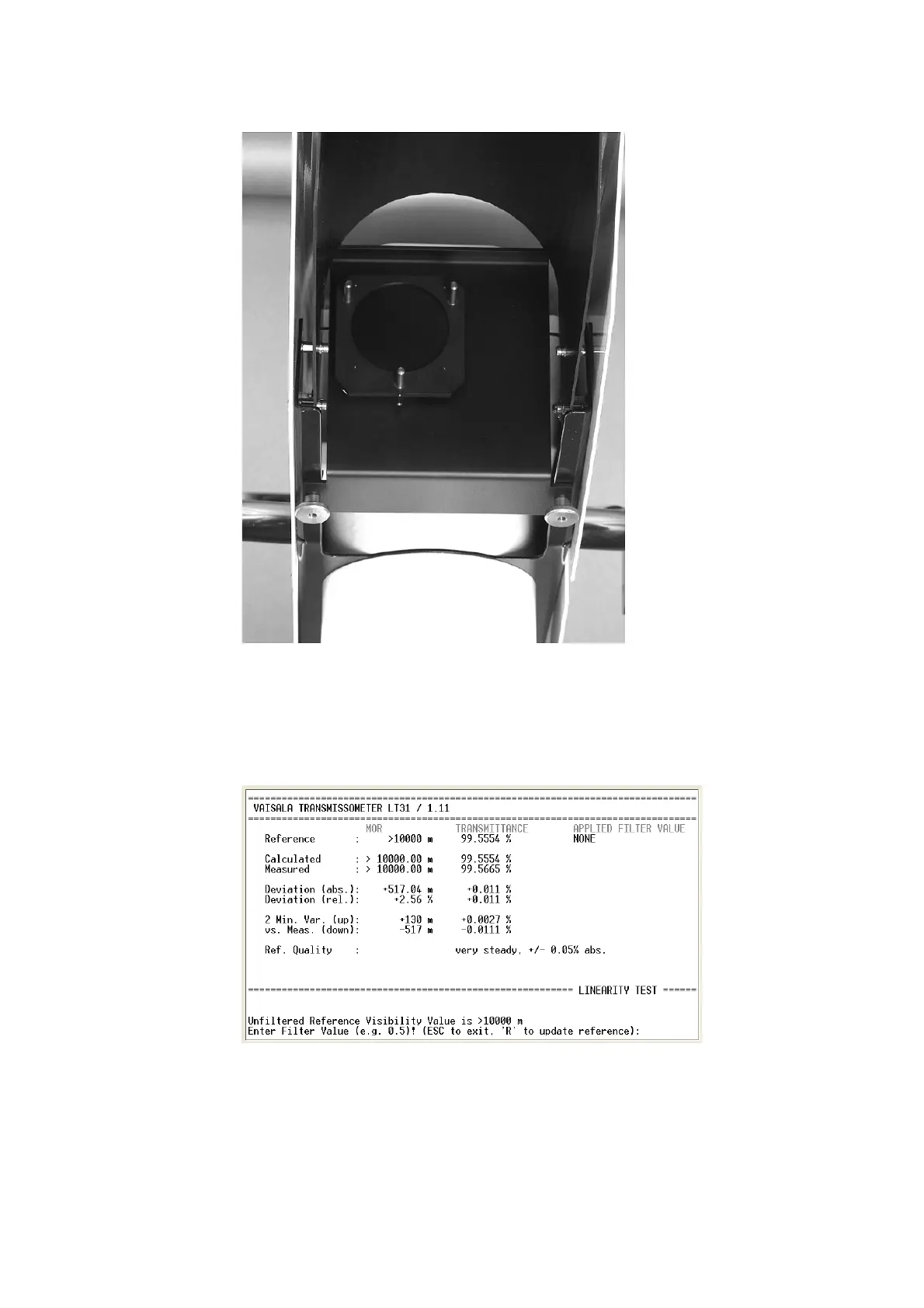

Figure 142 Filter Holder Mounted to the Receiver Support Unit
The filter holder is able to hold up to three optical filters. By combining
optical filters, a wide variety of filter values can be applied to the optical
path.
0401-120
Figure 143 Linearity Test Menu
For MOR readings and measured transmittance, a reference value, a
calculated value, a measured value and deviation values are given (see
Figure 143 above). In addition, two items are displayed to judge the
