Setting up Receiver Mast to Foundation
1. Screw one nut on the three foundation screws (see Figure 47
below), until the distance between the foundation surface and the
nut top is 5 cm.
2. Place a washer on top of the nuts.
0401-049

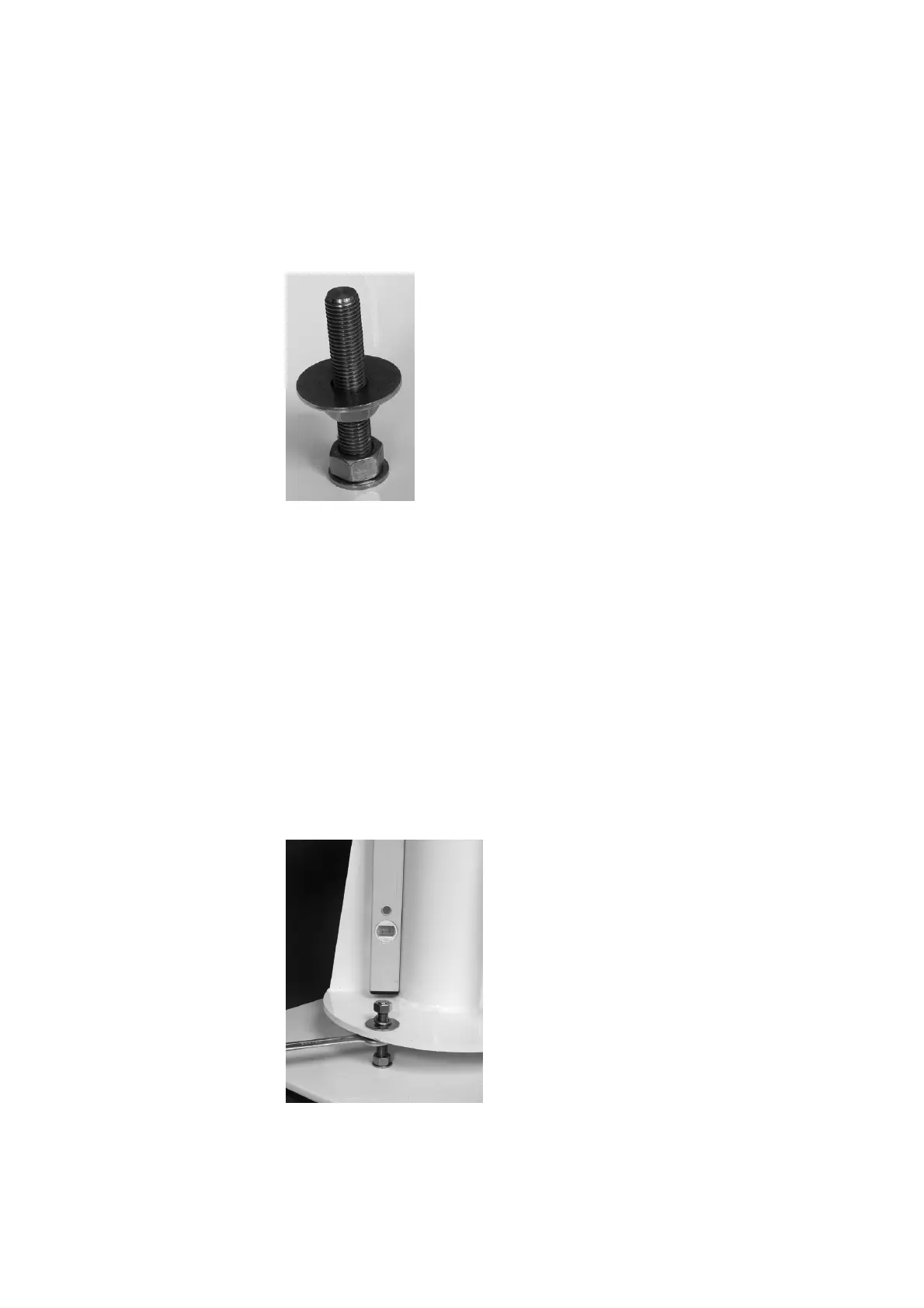

Figure 47 Foundation Screws
3. Place the receiver mast on the prepared foundation screws. The
interface unit at the mast base must be oriented backwards from the
baseline between the two installation places.
4. Secure this preliminary mast position. Use a washer and nut on
each of the tree foundation screws, fix it only hand-tight.
5. Ensure that the base plate of the mast has settled on the nuts and
washers mounted below.
6. Use the level and find a perfect vertical alignment for the mast by
loosening the respective securing nut and aligning the complete
mast construction by turning the nut below the base plate. See
Figure 48 below.
0401-051
Figure 48 Vertical Mast Alignment
