Appendix A ________________________________________________________ Options Installation
VAISALA ______________________________________________________________________ 287
0401-053

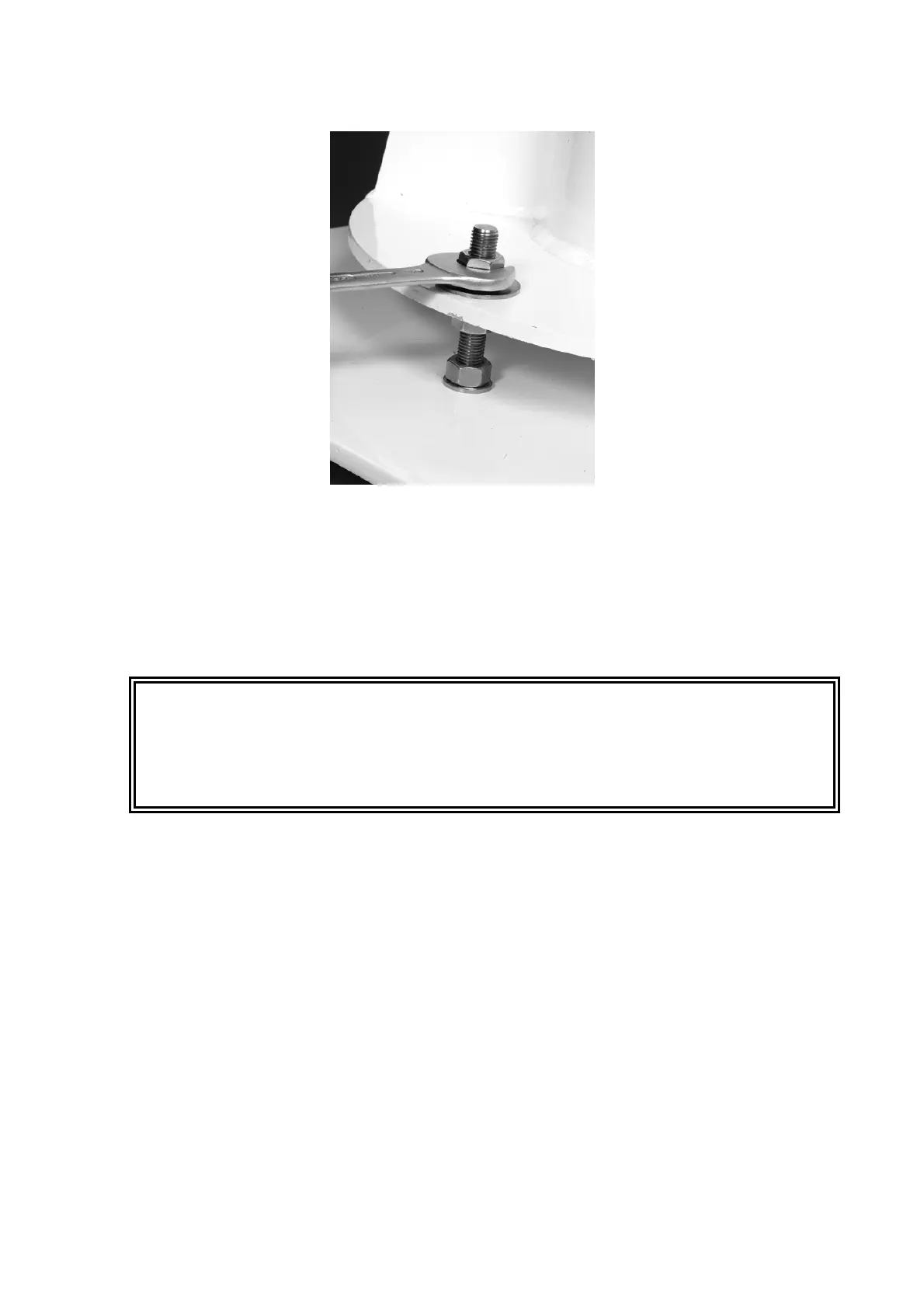

Figure 156 Tightening Nuts
9. Mount the LT31 receiver/transmitter unit mast on the installed
extension pole using M16x80 bolts, washers and nuts. Keep in
mind that the interface unit at the mast base must be oriented
backwards from the baseline between the two installation places
(see Figure 156 above).
WARNING
Use only appropriate utilities to lift the LT31 for installation on
extensions poles.
Take all necessary precautions to avoid any harm to involved personnel
when lifting and mounting the LT31.
10. Install the grounding connection between LT31 receiver/transmitter
unit using the grounding cable as shown in Figure 157, Detail A on
page 288.
11.
Continue the LT31 installation by following the directions given in
Section Setting up Weather Protection Hood to Support Unit on
page 110 of the User's Guide.
12.
Continue the LT31 installation by following the directions given in
section Setting Up Weather Protection Hood to Support Unit on
page 95 of the User's Guide.
