106 lite blue Installation Manual

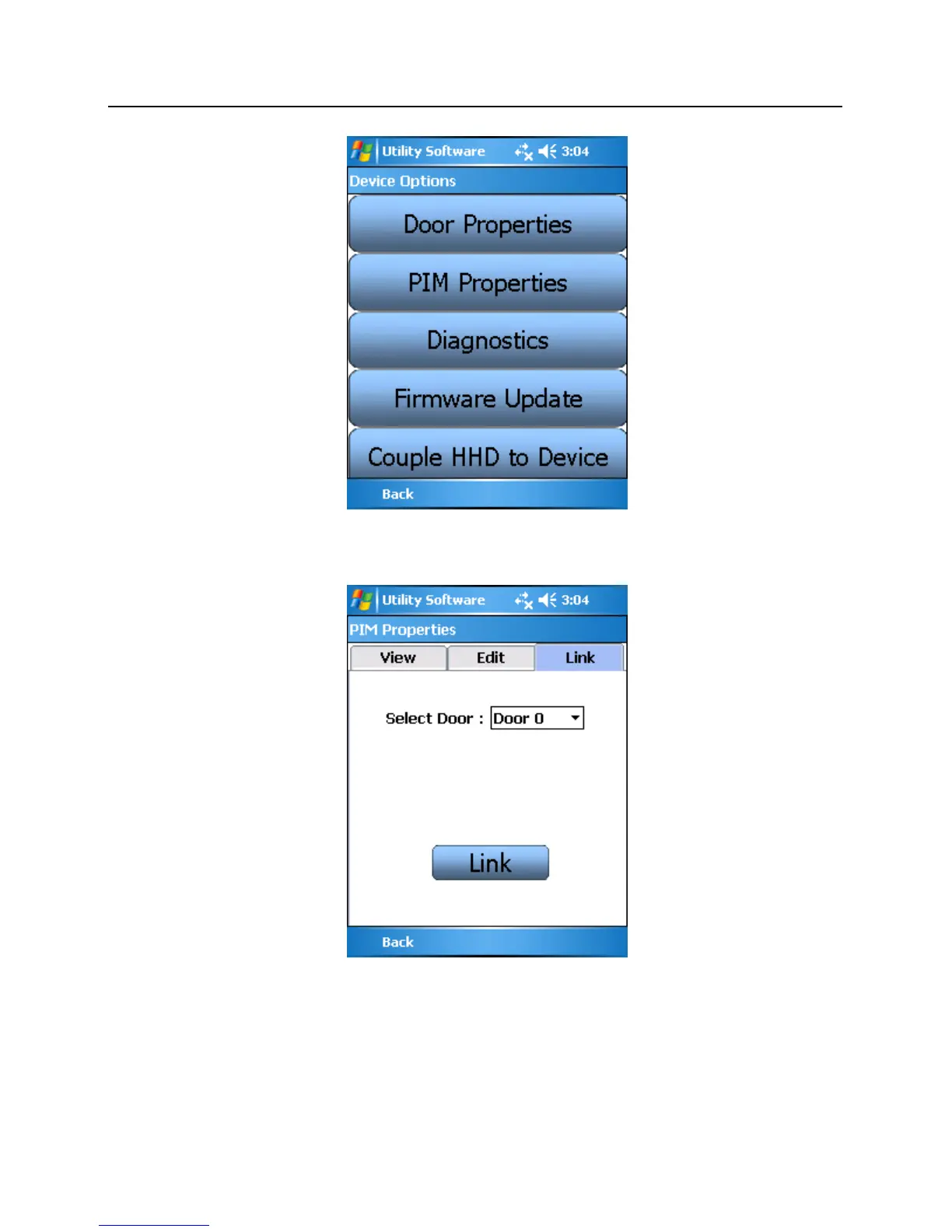

8 Click on the PIM Properties option.
9 Go to the Link tab.
10 Use the Select Door drop down menu to Set the address of the AD-400. This number will be the AD-400's
address.
11 Click Link.
12 Put the AD-400 Lock into Linking Mode:
a) Hold down the Exit Request Lever.
b) While holding down the lever, present a credential.
