48 lite blue Installation Manual
Powering VBB-RI
The VBB-RI should receive power directly from a UL 294 Listed Power Limited power supply. Power will be
supplied independently from the lite blue controller.

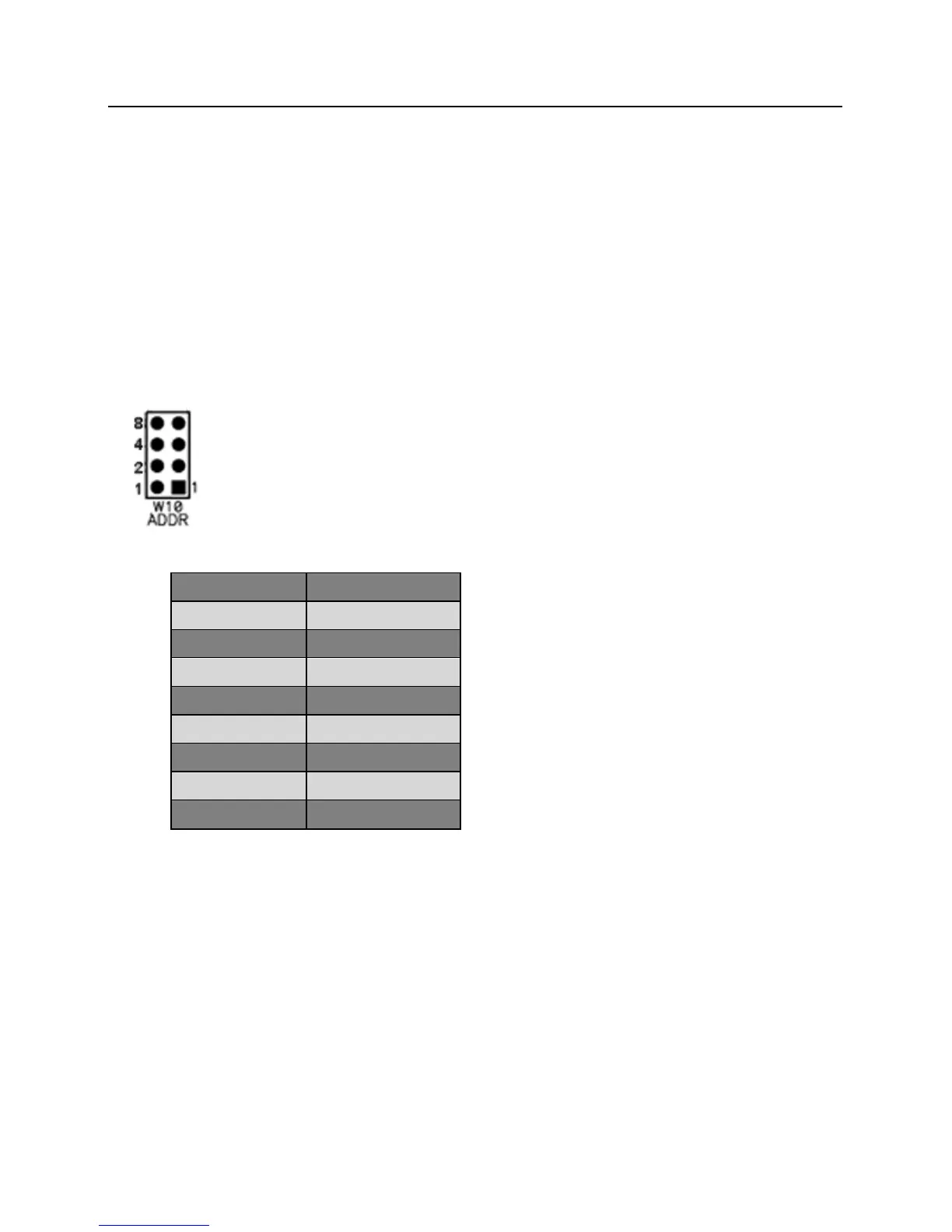

Addressing the VBB-RI
W10 on the VBB-RI consists of four jumpers that can be combined to set the address for the device. Each VBB-RI
on a lite blue controller RS-485 data channel must have a unique address (1 – 8).
Make a note of the address of the VBB-RI and which channel it is connected to. This information will be required to
set up the lock in the software.
VBB-RI Address Chart
VBB-RI Address
Jumper Locations
1
1 2 4 8
2
2 4 8
3
1 4 8
4
4 8
5
1 2 8
6
2 8
7
1 8
8
8
