Vanderbilt lite blue User Manual

VLBIM06/15/15 v4.1.0
Chapter 3 VBB-OBRI 57

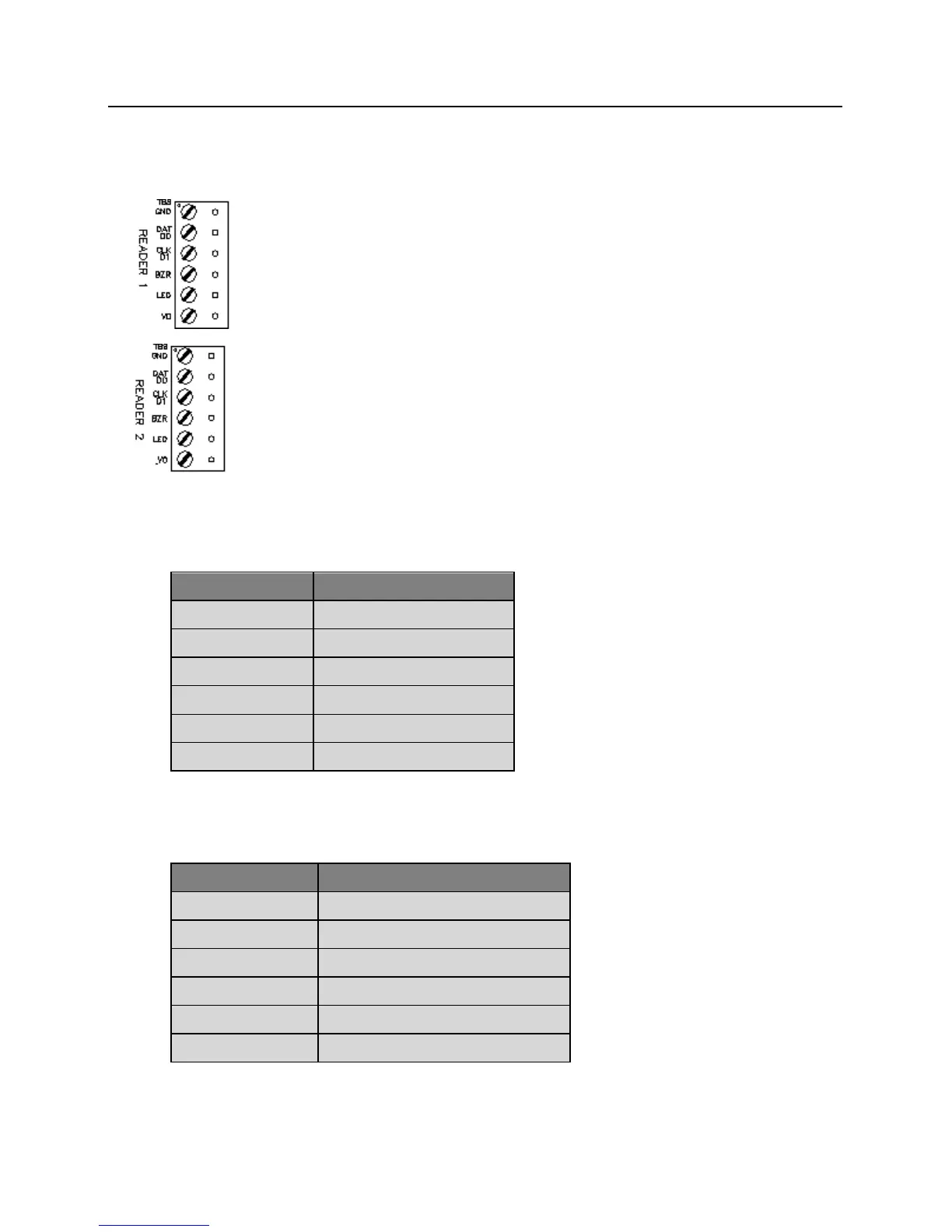

VBB-OBRI Pin Connections
XCEED ID XF 1050 Proximity Reader
Proximity Read Head Pin Connections
VBB-OBRI
Proximity Reader
PIN 1 (GND)
GROUND (BLACK)
PIN 2 (DAT/D0)
DATA 0 (GREEN)
PIN 3 (CLK/D1)
DATA 1 (WHITE)
PIN 4 (BZR)
NOT USED
PIN 5 (LED)
LED (ORANGE)
PIN 6 (VO)
POWER (RED)
Magnetic Stripe Reader
Magnetic Stripe Read Head Pin Connections
VBB-OBRI
Magnetic Stripe Reader
PIN 1 (GND)
GROUND (BLACK)
PIN 2 (DAT/D0)
DATA 0 (WHITE)
PIN 3 (CLK/D1)
DATA 1 (GREEN)
PIN 4 (BZR)
NOT USED
PIN 5 (LED)
LED (ORANGE)
PIN 6 (V0)
POWER (RED)
