Vanderbilt lite blue User Manual

50 lite blue Installation Manual

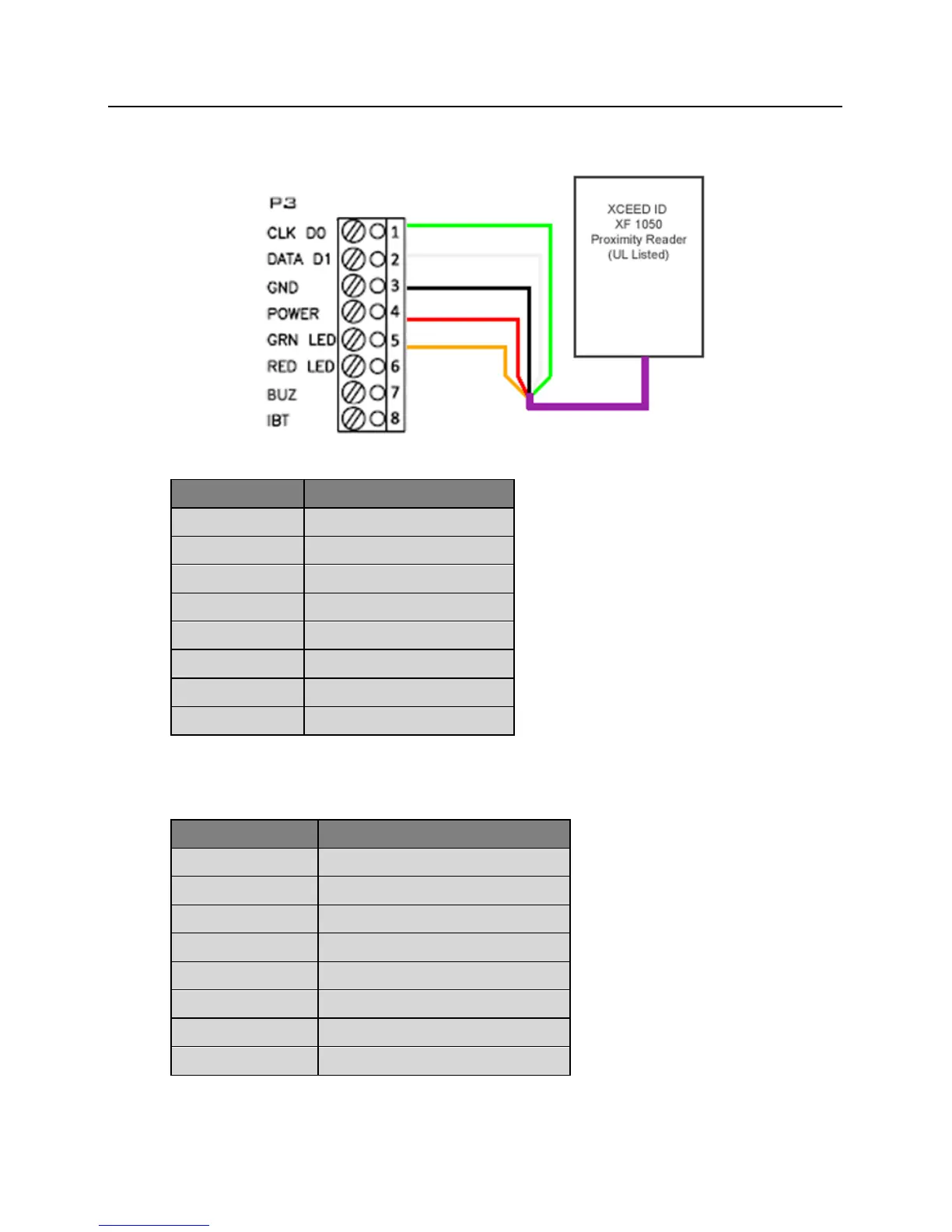

XCEED ID XF 1050 Proximity Reader
Proximity Read Head Pin Connections
VBB-RI
Proximity Reader
PIN 1 (CLK)
DATA 0 (GREEN)
Pin 2 (DAT)
DATA 1 (WHITE)
Pin 3 (GND)
GROUND (BLACK)
Pin 4 (PWR)
POWER (RED)
Pin 5 (GRN)
LED (ORANGE)
Pin 6 (RED)
NOT USED
Pin 7 (BUZ)
NOT USED
Pin 8 (IBT)
NOT USED
Magnetic Stripe Reader
Magnetic Stripe Read Head Pin Connections
VBB-RI
Magnetic Stripe Reader
PIN 1 (CLK)
DATA 0 (WHITE)
Pin 2 (DAT)
DATA 1 (GREEN)
Pin 3 (GND)
GROUND (BLACK)
Pin 4 (PWR)
POWER (RED)
Pin 5 (GRN)
LED (ORANGE)
Pin 6 (RED)
NOT USED
Pin 7 (BUZ)
NOT USED
Pin 8 (IBT)
NOT USED

Vanderbilt lite blue Specifications

General

Brand	Vanderbilt
Model	lite blue
Category	Controller
Language	English
