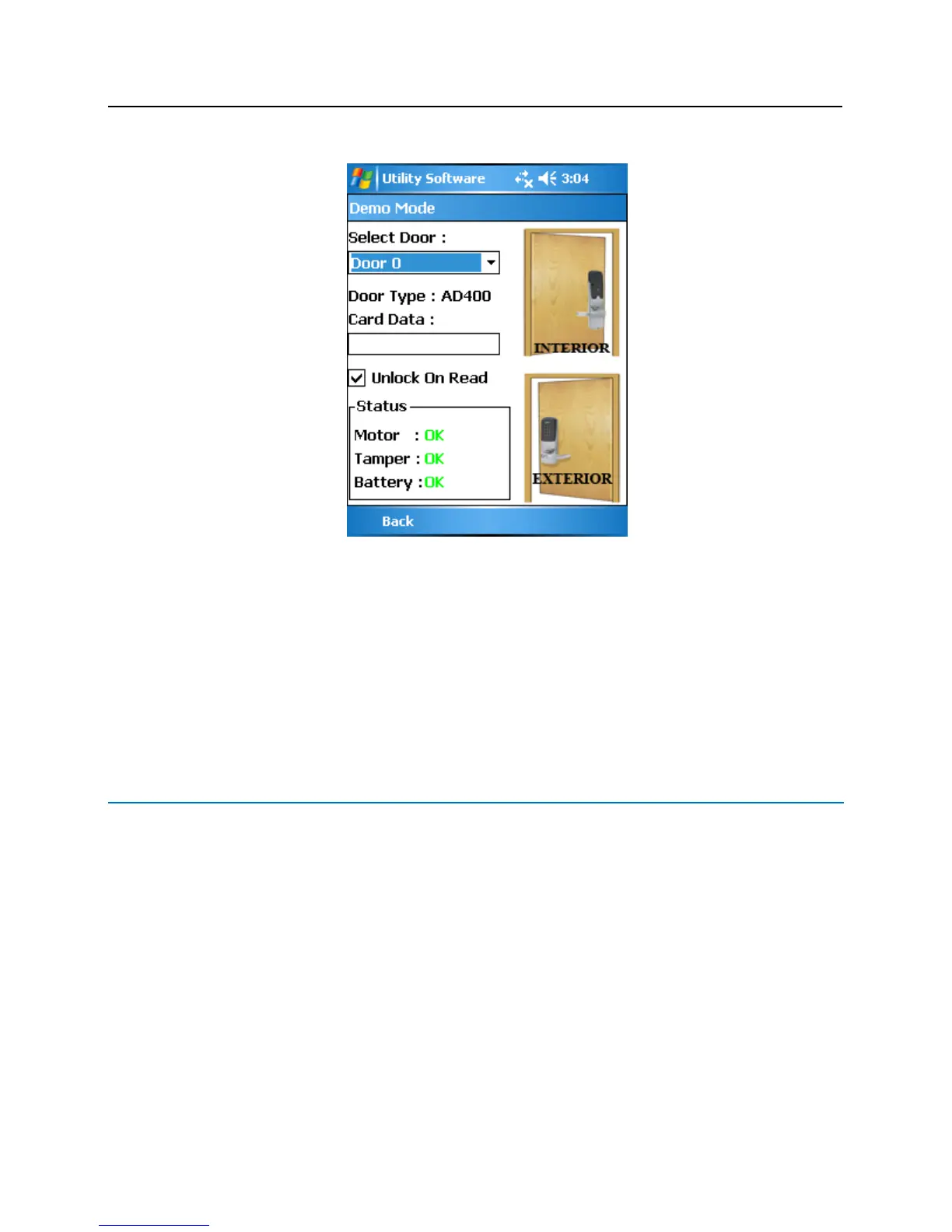

4 Click on the Diagnostics option. The Demo Mode window will open.
5 Using the Select Door drop down, select the door you wish to test.
If the Status section shows OK, then you have successfully linked the AD-400.
Now, to perform a complete operational test of the AD-400:
1 Present your credential to the AD-400. If the door is functioning correctly the card data will appear in the
Card Data field.
2 Depress the Internal Lever. If the door is functioning correctly the Interior image will show an open door.
3 Depress the External Lever. If the door is functioning correctly the Exterior image will show an open door.
WRI400 Configuration
Configuration of the WRI400 is accomplished by the SUS while the HHD is connected to the PIM400. After the
PIM400 has been configured you can Link the WRI400 to the PIM400 and address it.
Connecting to HHD/Coupling/Linking
The HHD is used to configure the WRI400. Follow the steps below to connect to the HHD, couple with the HHD,
and Link to the PIM400. For information about the HHD and WRI400 settings, see the Schlage Utility Software
(SUS) User Guide at www.schlage.com/support.
Connecting to the HHD
To connect the HHD to the WRI400:
1 Verify power is connected to the WRI400.
2 Loosen the 4 screws and remove the WRI400 cover. The Power LED should blink when the cover is off.
