Vanderbilt lite blue User Manual

116 lite blue Installation Manual
Abbreviations
Terms and description
Term
Description
PIM
Panel Interface Module
WAPM
Wireless Access Point Module
WRI
Wireless Reader Interface
The Schlage Wireless Access product line contains several variations of the same module.
Wireless Access Modules
Name
Acronym
Type
Panel Interface Module
PIM
PIM
Wireless Access
WA
WAPM
Wireless Reader Interface
WRI
WAPM
Schlage Wireless System Components
There are various wireless devices that are used to integrate with lite blue. The Schlage wireless system
contains two different types of modules:
 One wireless panel interface module (PIM)
 Up to 16 wireless access point modules (WAPM)
.

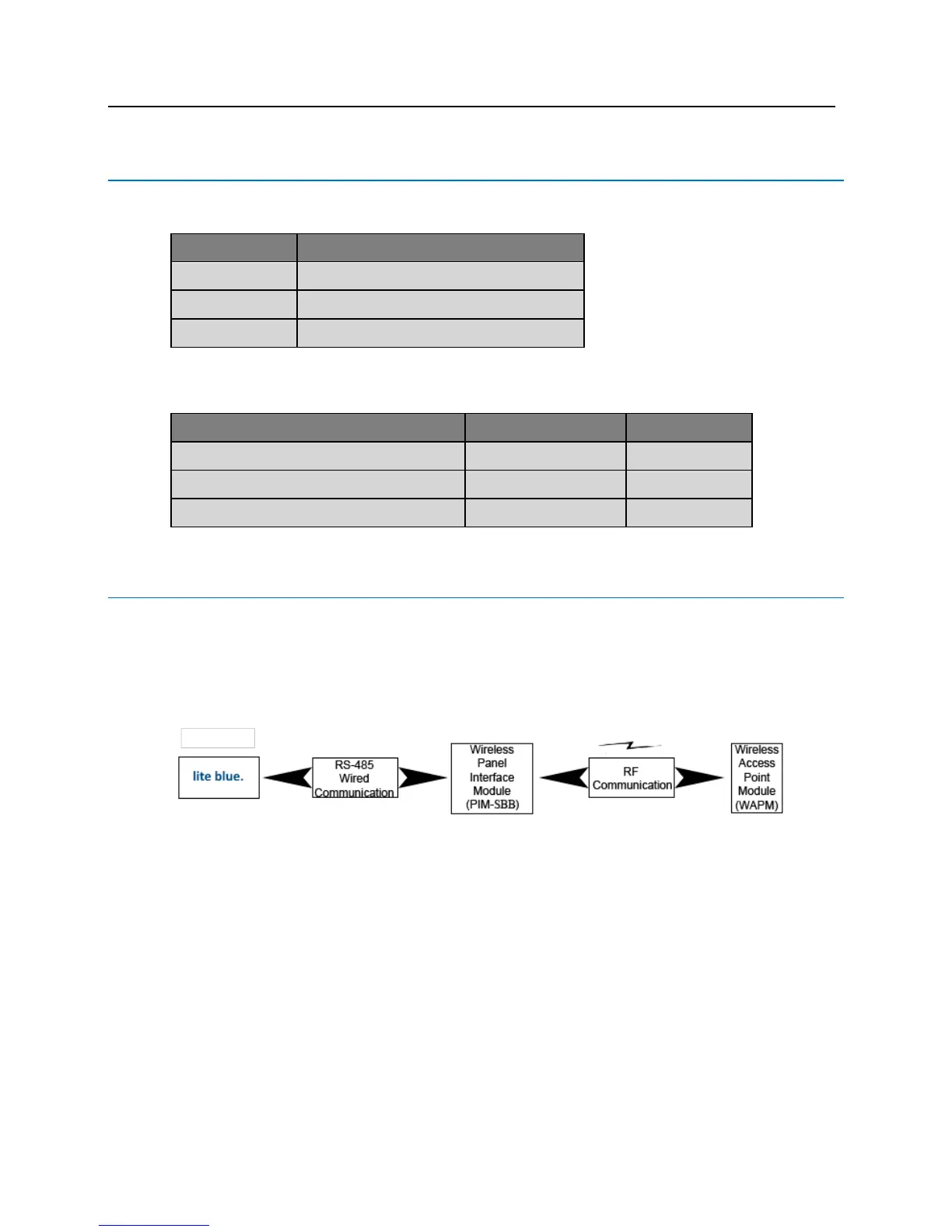

Wireless system block diagram
The PIM (PIM-SBB Legacy) is hard wired to the lite blue power and communication channels via RS-485
protocol. The PIM installation location is determined by the location of the WAPM with which it will communicate
via radio frequency (RF).
The WAPM is installed at the access point where access will be controlled and/or monitored. Some wiring at the
access control point may be required, depending on the application being applied to the WAPM .
Regardless of which WAPM is used, the communication link is always RF.
