122 lite blue Installation Manual

Wiring instructions

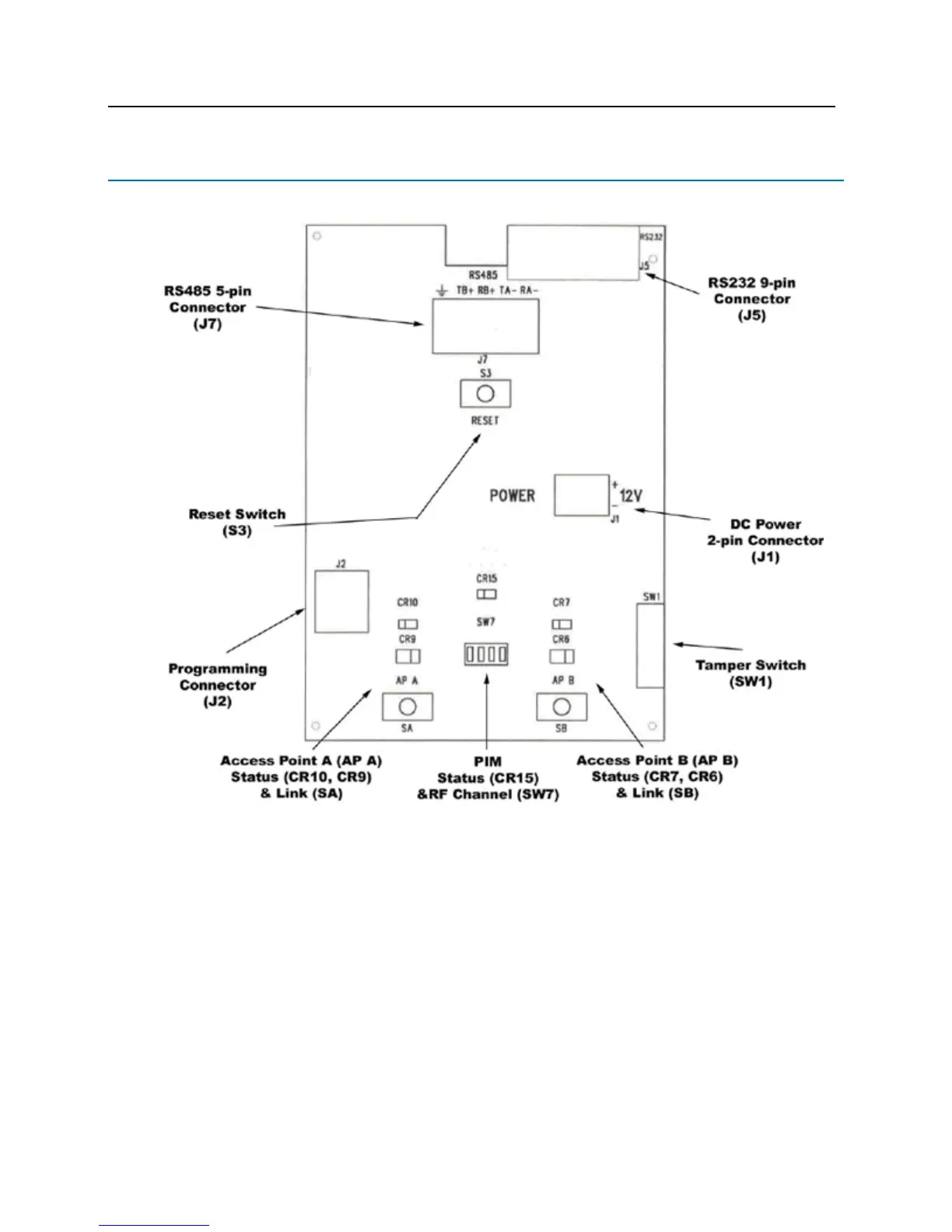

All Schlage wireless devices should be powered with a 12VDC power supply. The PIM-SBB (Legacy) can be

powered directly from any data channel of the lite blue controller that is supplying 12VDC or separately from a

local power supply. lite blue and the PIM-SBB communicate via RS-485 protocol.
