Chapter 2 VBB-RI 45
Environmental conditions
 Ambient Temperature: 0º to 49º C or 32º to 120º F
 The room must be dust free and clean.
 It is optimal to mount the enclosure on fire rated plywood which is affixed to a cinder block wall or a wall
covering i.e. sheetrock
 Mount the cabinet in a secure, but generally accessible location
Mounting the enclosure
 Field Wiring - It is recommended that you drill holes or punch the knockouts in the metal enclosure for field
wiring before mounting the enclosure to the wall.
 A non-metallic sleeve is recommended to protect the wiring where it enters the cabinet.
 Mount the enclosure to the wall using the provided mounting holes. Recommended mounting hardware:
Four 1/4” x 1” lag bolts.
 To secure the VBB-RI enclosure use two screws through the openings provided on the cover. Alternately a
lock can be added using the provided punch out section on the cover.

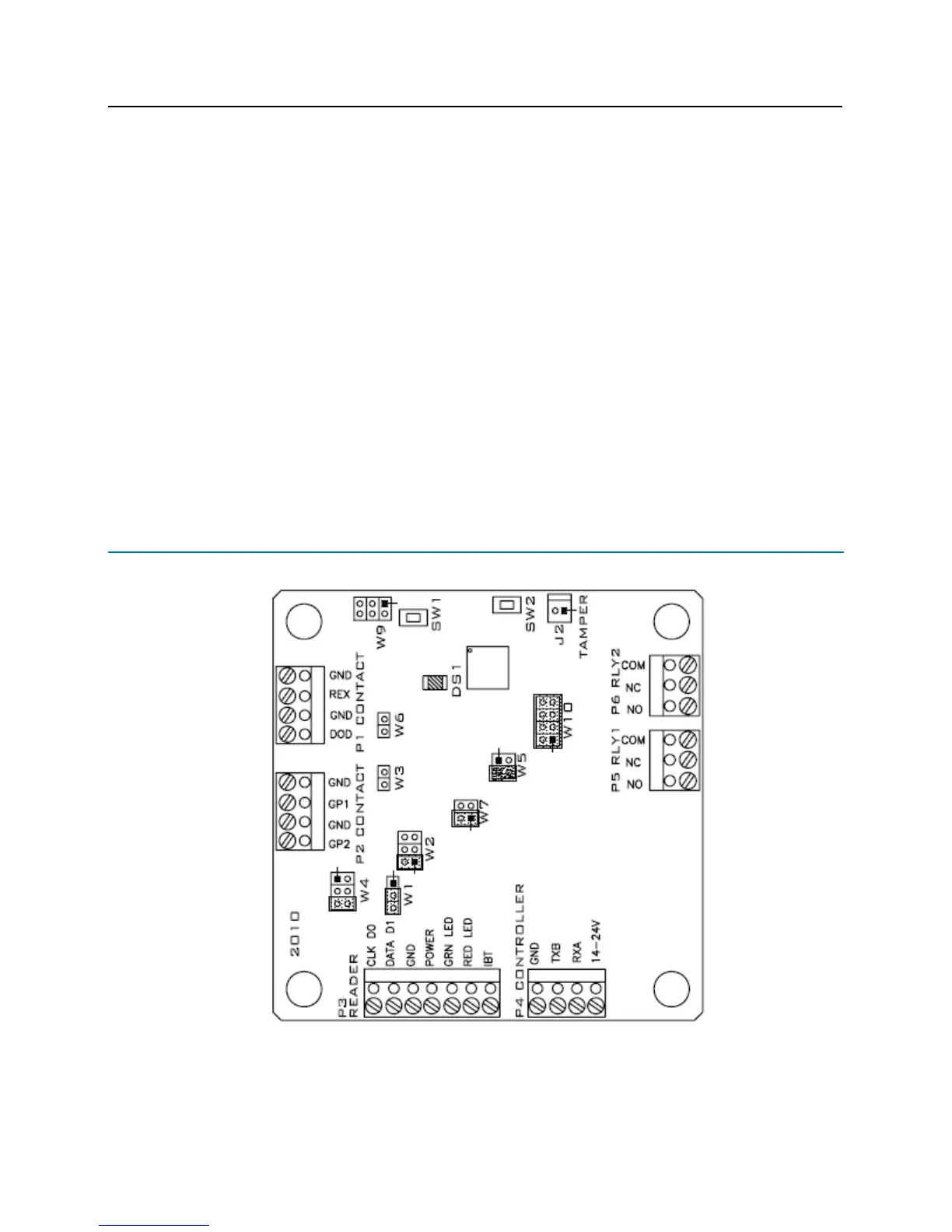

VBB-RI Pin Layout
