Vanderbilt lite blue User Manual

VLBIM06/15/15 v4.1.0
Chapter 8 Schlage Adaptable AD-400 Series 107
c) The Schlage button will blink as will the Internal Push Button. The lock is now in Linking Mode.
d) Release Exit Request Lever.
13 Once the Stop option is enabled, the AD-400 is now linked to this PIM400 with the specified address.
Diagnostics
Follow the steps below to determine if you have correctly Linked your AD-400 lock to your PIM400:
1 Log in to SUS (see steps above).
2 Connect the PDA to the PIM400 using the supplied USB cable.

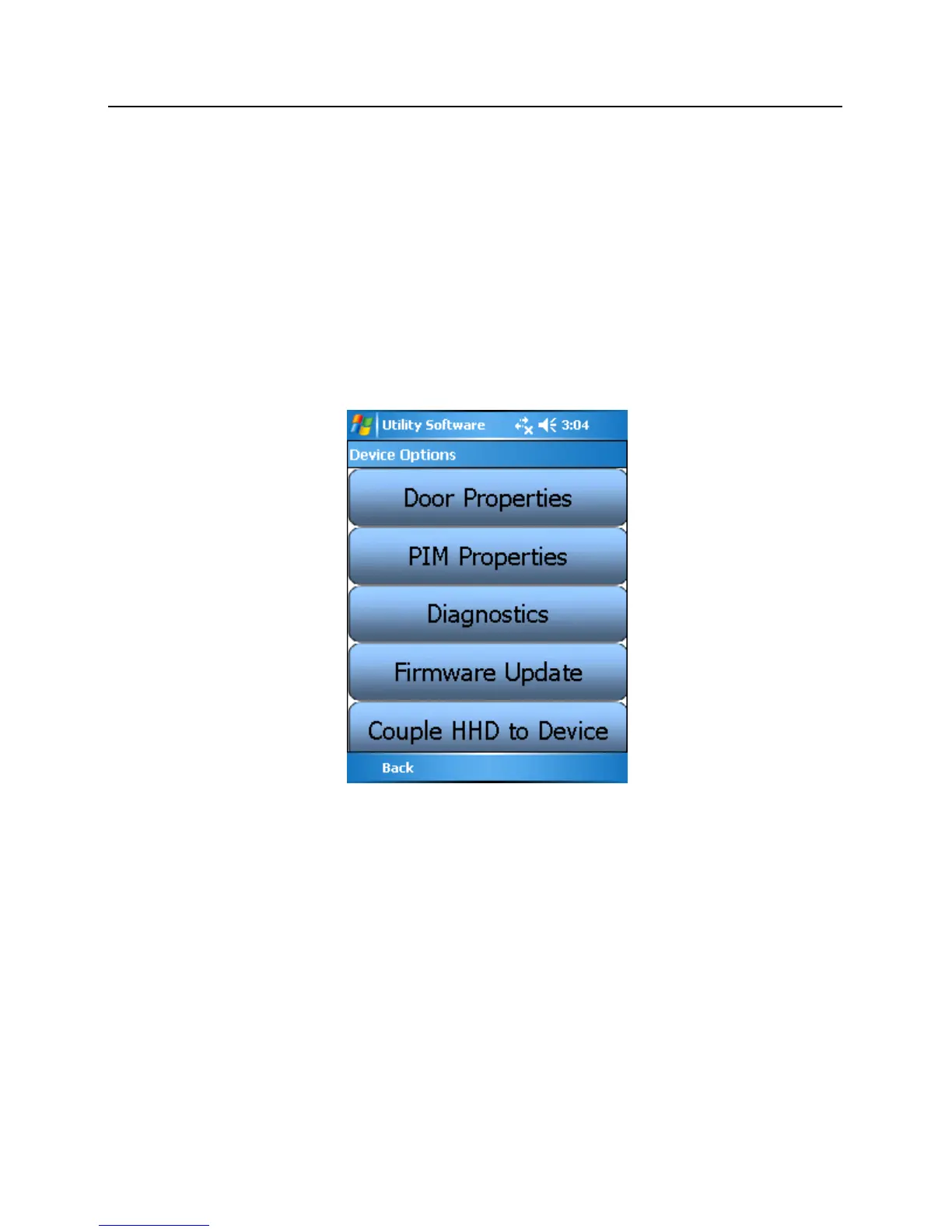

3 Click on the Device Options button.
