Chapter 6 Schlage Adaptable AD-300 Series Locks 87
C H A P T E R 6
Schlage Adaptable AD-300 Series Lock
Overview

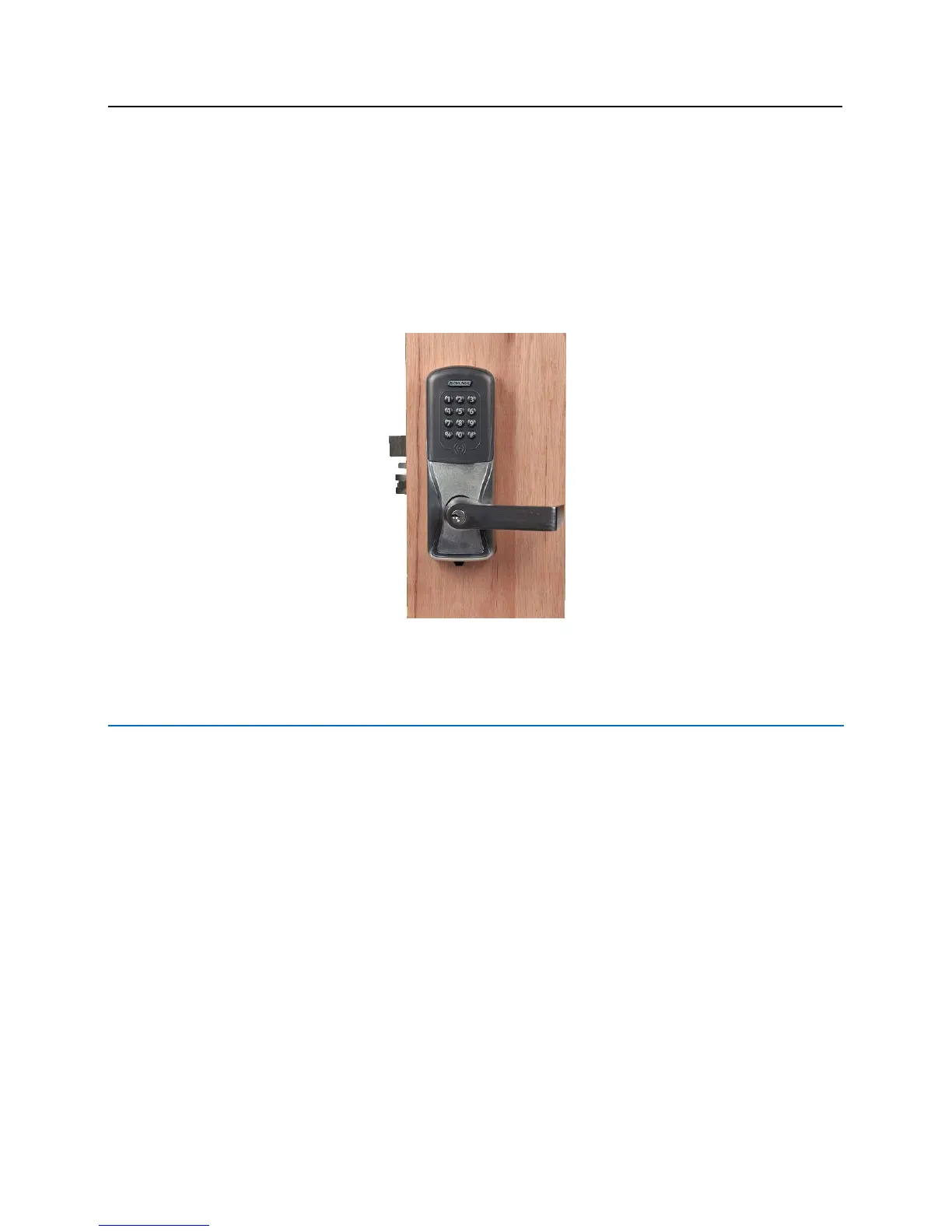

The AD-300 Lock is an integrated, modular lock that includes all the standard peripheral devices at a secured door
opening. AD-300 Locks can be integrated directly into the lite blue controller. The communication protocol is RS-
485 to any of the communication channels on the lite blue controller.
Features
 Connects directly to the lite blue controller via RS-485 protocol to one of the communication channels.
 Available with mortise, cylindrical lock and exit device trim.
 Available with (HID) proximity or magnetic stripe credential technologies.
 Integrated PIN pad allows for PIN+Credential access.
Specifications
 Power is received from the lite blue controller.
 Power Requirements - 12VDC or 24VDC
 Power Consumption - 300mA max.
Schlage Adaptable AD-300 Series Locks

Vanderbilt lite blue Specifications
