Viewports can be any scale. You may have multiple
Viewports or drawings on a sheet layer. Sheet layers are
always in 1:1 scale. For our purposes we are only going to
have one viewport on each sheet layer, but each set piece
in this document could be isolated by class and viewed
individually for construction.
When Viewporting scenic elements I create one viewport on
a sheet and then duplicate the viewport by either alt/option
and dragging or copy and paste. I will then change the view
and rendering mode using the OIP.

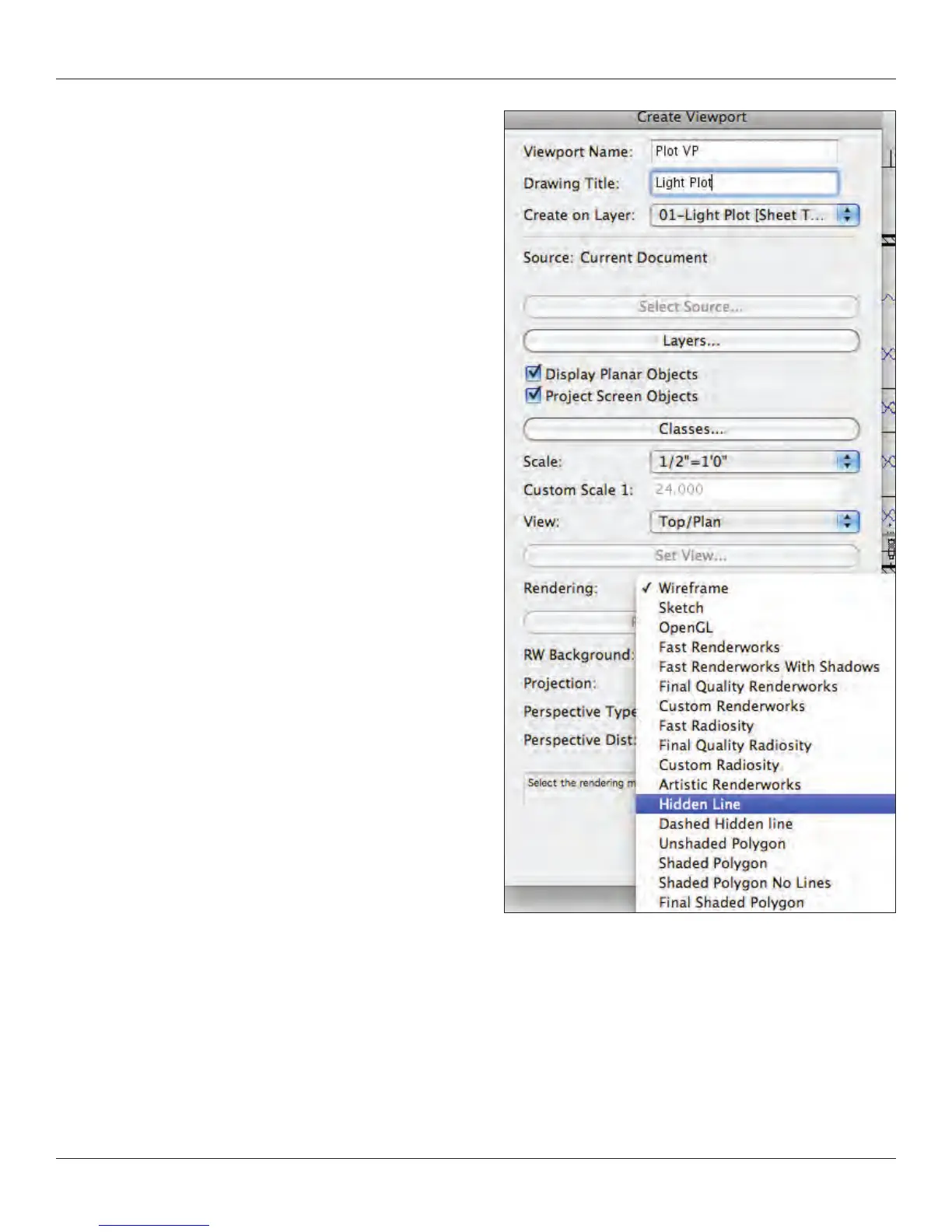

Let’s take a look at the Create Viewport dialogue, there are
many things you can accomplish here. Naming the VP is good,
it helps you nd your own information. The Drawing Title is
linked to the Drawing Label Tool in the Dims/Notes Tool Set.
