50-6 Operation D7x11 Series II Navigator Directional Drill
Step 2: Align centerline of machine with centerline of trailer to minimize steering while loading.
Step 3: SLOWLY drive machine
squarely onto trailer.
Step 4: Stop machine when tie-down
position is reached. The tie-
down position distributes
machine weight on the trailer
as recommended by trailer
manufacturer.
Step 5: Lower rear stabilizer and drill
rack frame until firmly in
contact with trailer deck.
Step 6: Follow “Shutdown Procedure,” page 50-3.

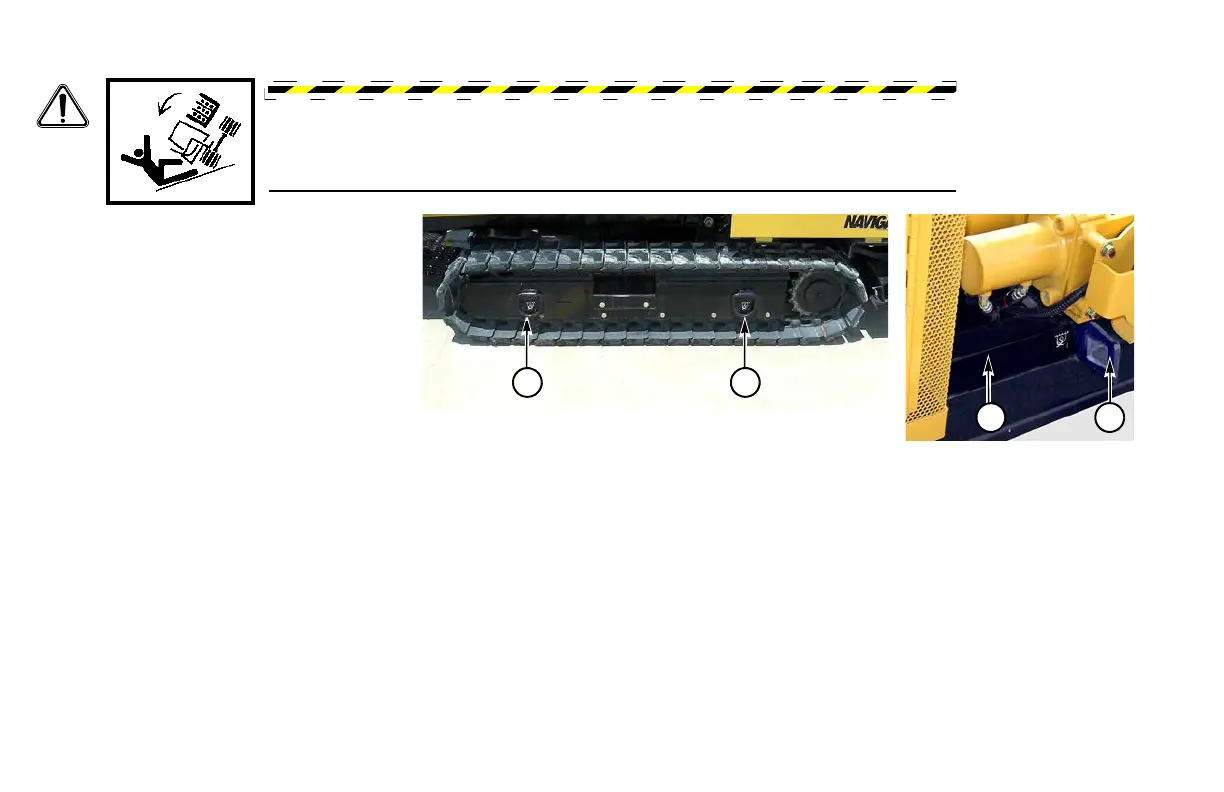

Step 7: Use tie-down points on track frames (1) and rack (2) to secure drill unit to trailer with chains and binders.
RETRIEVAL
The following procedures are intended to be used when towing a machine which has become mired or disabled.
Connect tow chain/cable to the front tie-down ring (3).
IMPORTANT: Disengage park brakes and bypass ground drive pump to allow hydraulic fluid to circulate.
Contact your Vermeer dealer for instructions.
IMPORTANT: Towing device (chain, cable, or strap) must have a minimum working load of 6000 lb (2700 kg).
IMPORTANT: Do not tow machine more than 500 ft (150 m), and do not exceed 1 mph (1.5 km/h).
WARNING: Do not attempt to steer machine while its weight is balanced on the
end of the trailer. Slight steering changes may cause the machine to turn abruptly
and slide back down the loading ramps. Serious injury or death can occur if
crushed by the machine.
