30-6 Overview D7x11 Series II Navigator Directional Drill
HYDRAULIC LOCKOUT OR ENGINE SHUTDOWN OPTION
The Remote Lockout system is equipped with an option to operate as either a hydraulic
lockout (default) or an engine shutdown system.

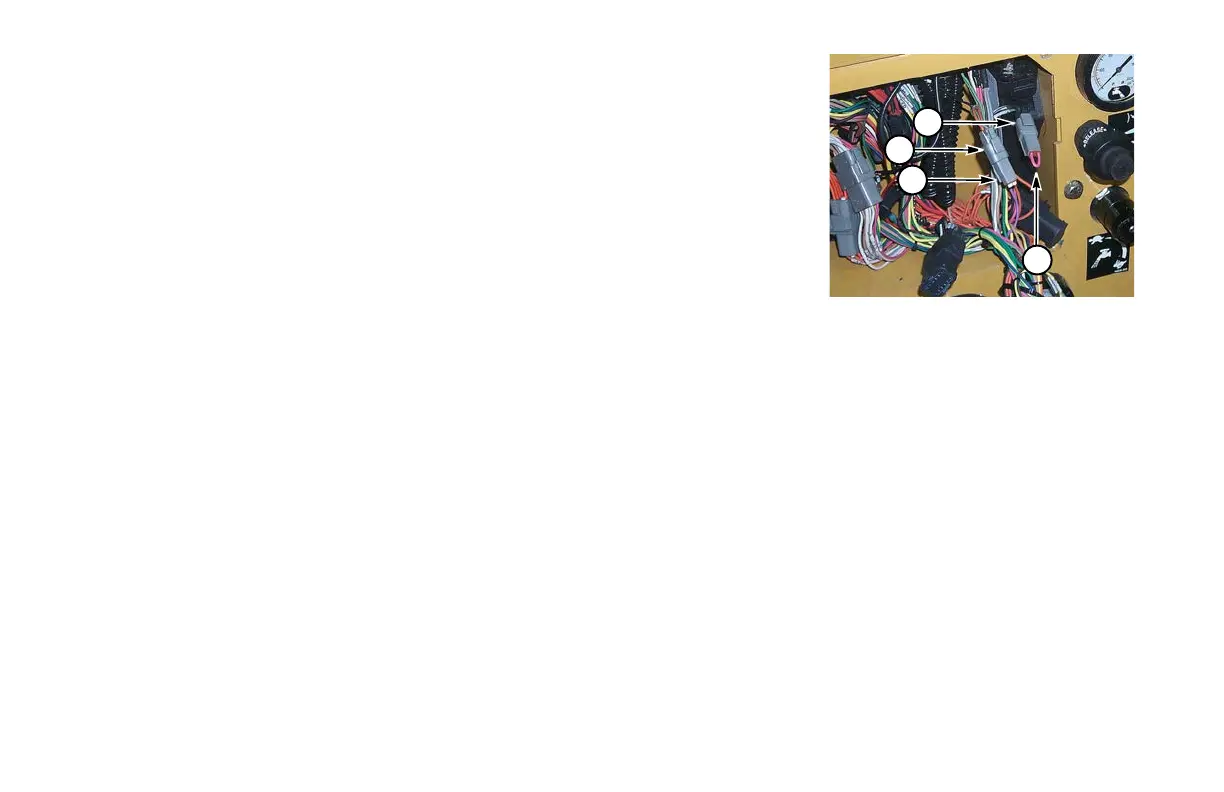

(1) Engine Lockout Connector (light green and black wires)
(2) Hydraulic Lockout Connector (light green and orange wires)
To change system to Engine Shutdown:
Step 1: Move ignition key to OFF position and remove shield on control panel.
Step 2: Insert jumper plug (3) into engine lockout connector.
Step 3: Insert plug (4) into hydraulic shutdown connector.
Step 4: Install shield and follow “Starting Procedure,” page 50-1.
When machine is in Drill mode, a lockout command will disable the fuel and start circuits. To restart machine
after lockout, turn ignition key to ON, select RUN mode, and wait for the solid green light, then turn ignition
key to start position.
To change system back to Hydraulic Lockout:
Step 1: Move ignition key to OFF position and remove shield on control panel.
Step 2: Insert jumper plug (3) into hydraulic lockout connector.
Step 3: Insert plug (4) into engine shutdown connector.
Step 4: Install shield and follow “Starting Procedure,” page 50-1.
A lockout command will now disable hydraulic functions.
Hydraulic Lockout Backup Engine Shutdown
To ensure machine remains locked out during a confirmed hydraulic lockout, rotation and thrust hydraulic
pressures are monitored. If any of the hydraulic pressures increase, or if drilling fluid system is turned on,
engine will be shut down. The engine cannot be restarted until Run Button is pushed.
2
1
3
4
