Vermeer Navigator D7 11 Series User Manual

20-2 Controls D7x11 Series II Navigator Directional Drill
Remote Lockout Controls

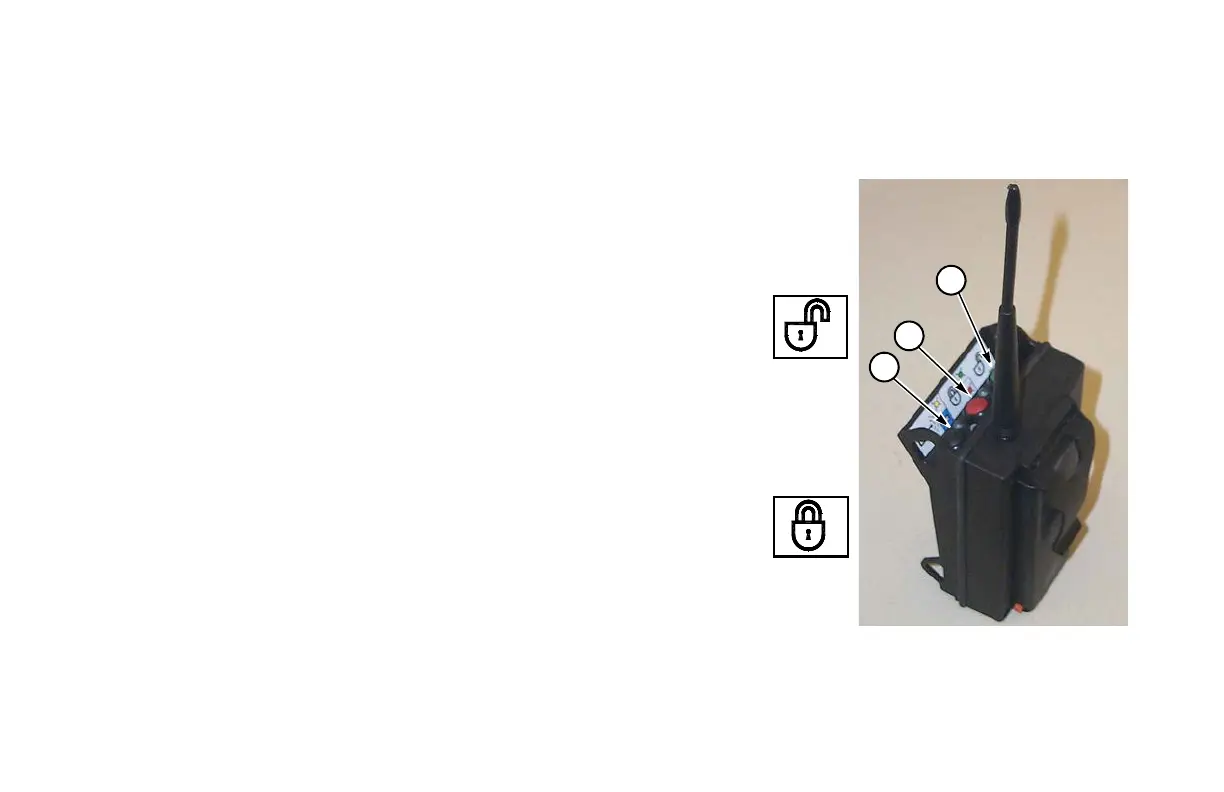

REMOTE LOCKOUT TRANSMITTER CONTROLS
NOTE: In order for the remote transmitter to function, machine ignition key must be ON.
(1) Power ON/OFF Button
Press and hold until yellow light flashes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ON
Press and hold until all lights are off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OFF
Remote shuts off automatically if there is no communication with machine after
20 minutes.
(2) Run Button
With transmitter ON:
Press and hold until yellow light flashes. . . . . . . . . . . . . . RUN mode requested
When green light comes on steady, Remote Lockout system is in RUN mode.
With transmitter OFF:
Press and hold. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TEST mode
to initiate testing of transmitter buzzer, vibrator and indicator lights
(3) Lockout Button
With transmitter ON:
Momentarily press and release . . . . . . . . . . . . . . . . . LOCKOUT mode requested
When lockout is complete, red light will come on (takes approximately 2–5
seconds).
With transmitter OFF:
Press and hold until yellow light flashes. . . . . . . . . . LOCKOUT mode requested
When lockout is complete, red light will come on (takes approximately 2–5
seconds).
1
2
3
4_00
