Vermeer Navigator D7 11 Series User Manual

D7x11 Series II Navigator Directional Drill Operation 50-11
Machine - Anchor with Power Stakes
Drive stakes completely into the ground.
If desired, install anchor stakes in rear stabilizer.

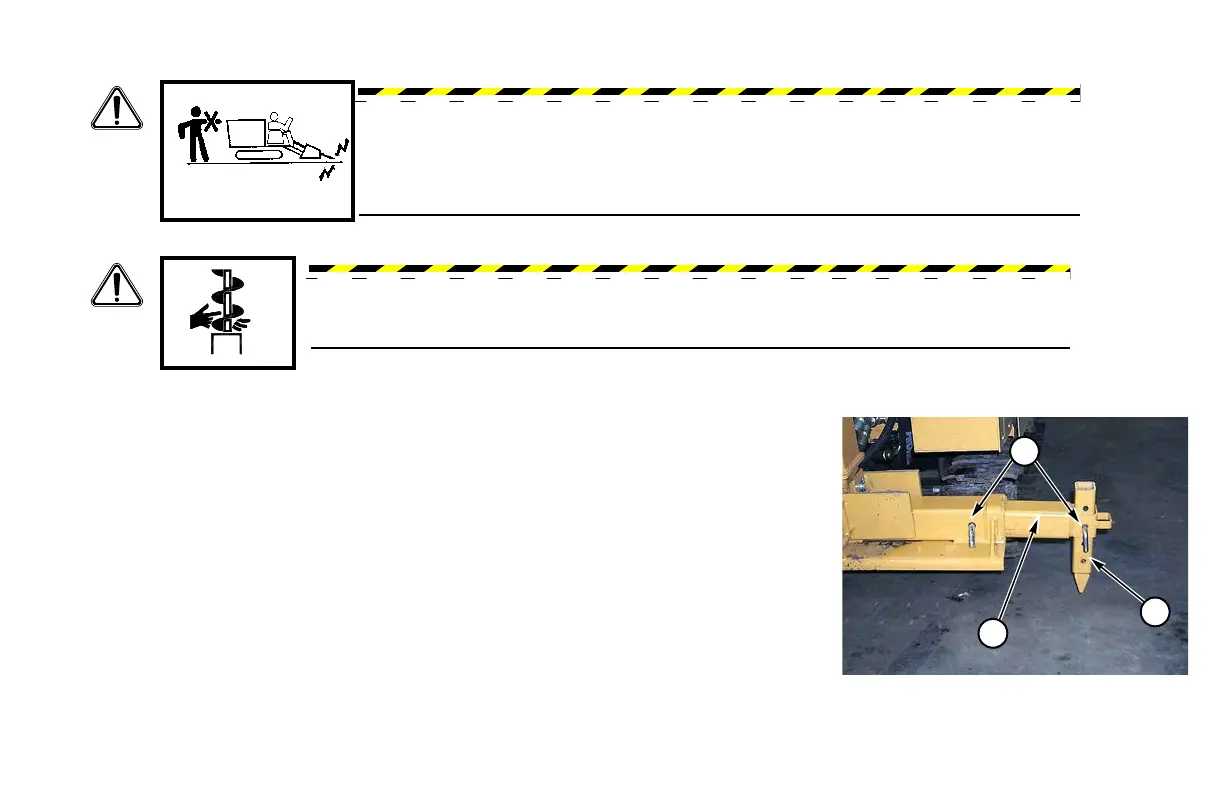

Step 1: Remove hairpins and pins (1).
Step 2: Pull out extension (2) until holes line up.
Step 3: Install anchor stakes (3).
Step 4: Install pins (1) and hairpins.
DANGER: Contact with machine while standing on the ground may result in serious
injury or death from electrical shock if anchor stakes make contact with underground
electric power.
• Drive anchor stakes only while wearing electrically insulated gloves and boots.
• Keep everyone away from machine when anchors are being installed.
WARNING: Contact with moving anchor stakes can result in serious injury. Stay away
from rotating stakes. Ensure everyone is away from anchor stakes and the guards are
closed and secured before operating.
2
1
3
