D7x11 Series II Navigator Directional Drill Controls 20-11
Setup Controls

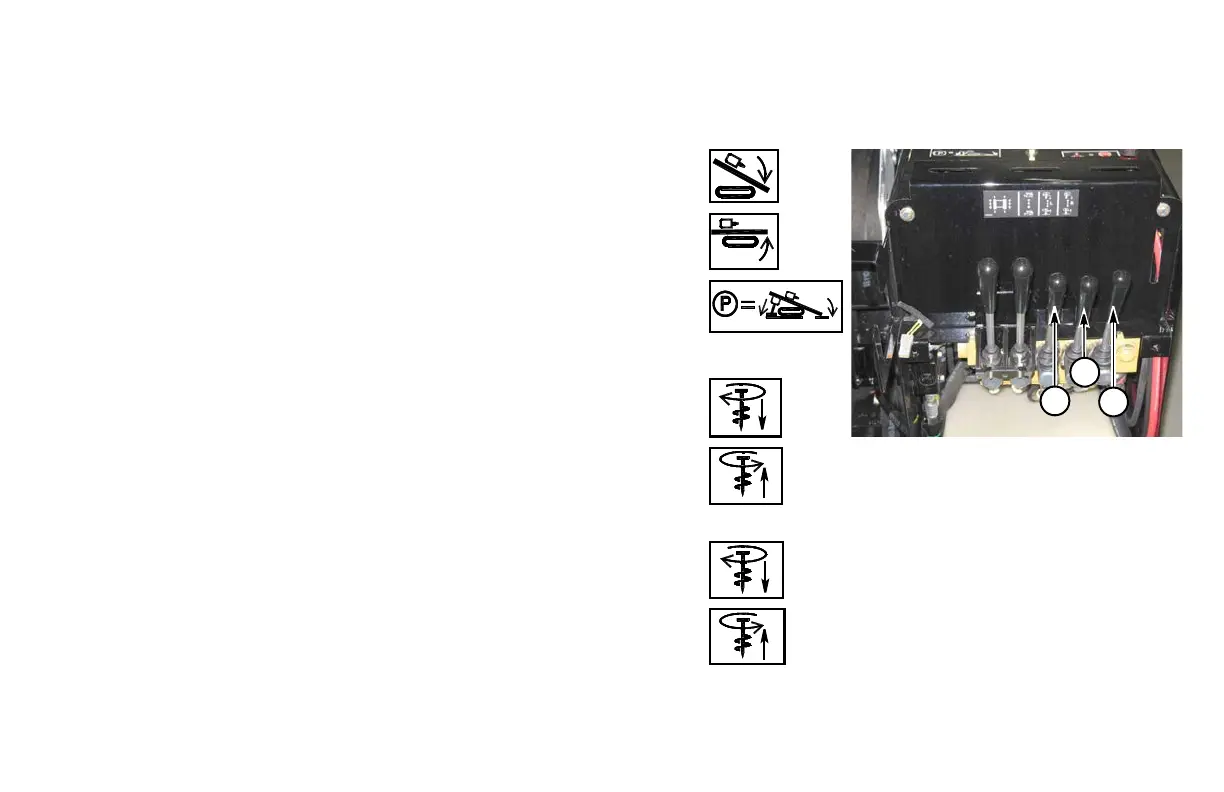

RACK/STABILIZER CONTROL - TRANSPORT STATION
(1) Rack Angle/Rear Stabilizer
Push . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . tilts rack
Pull . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .levels rack
IMPORTANT: Keep front of rack and rear stabilizer firmly on the
ground when parking the machine or leaving it unattended.
(2) Left Power Stakedown
Push . . . . . . . . . . . . . . . . . . . . . . . drive left stake into the ground;
. . . . . . . . . . . . . . . . . .cylinder retracts, left stake turns clockwise
Pull . . . . . . . . . . . . . . . . . . . . . . remove left stake from the ground
. . . . . . . . . . . .cylinder extends, left stake turns counterclockwise
(3) Right Power Stakedown
Push . . . . . . . . . . . . . . . . . . . . . . drive right stake into the ground;
. . . . . . . . . . . . . . . . cylinder retracts, right stake turns clockwise
Pull . . . . . . . . . . . . . . . . . . . . . remove right stake from the ground
. . . . . . . . . . cylinder extends, right stake turns counterclockwise
