D7x11 Series II Navigator Directional Drill Overview 30-23

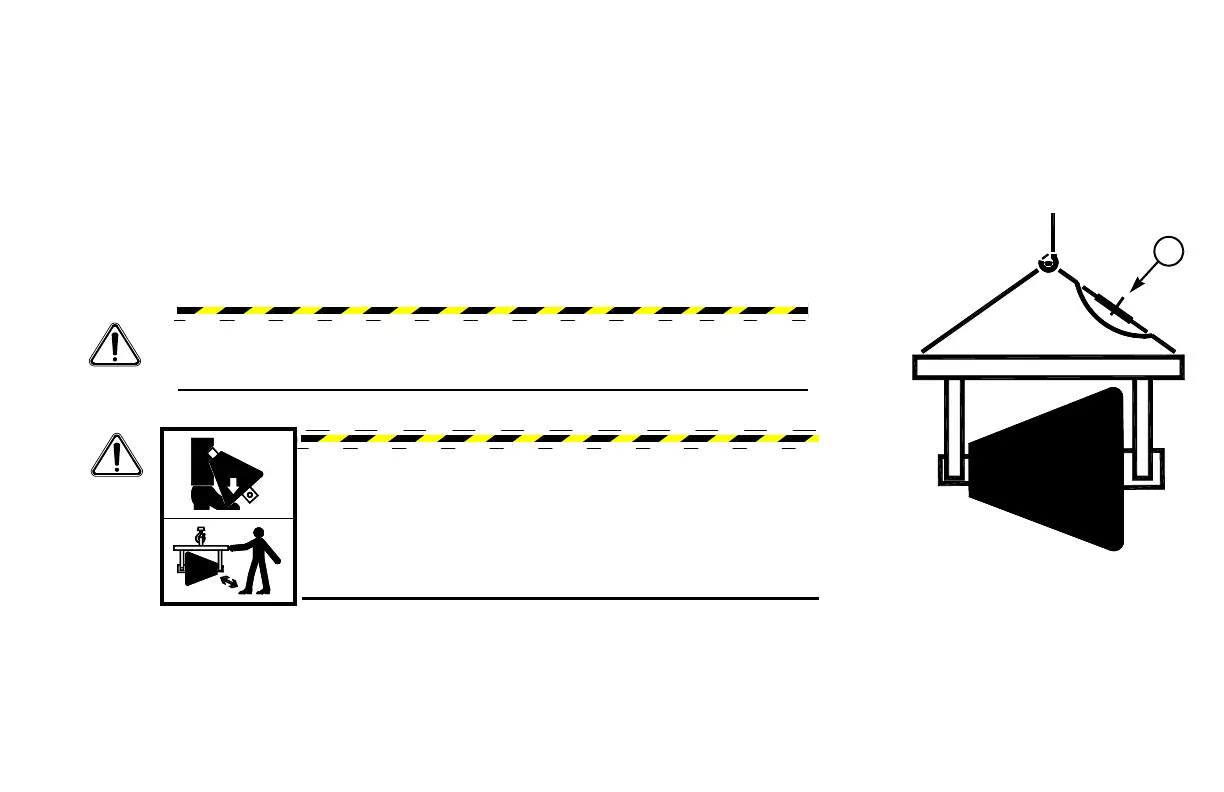

Reamer Carrier - Lift
Step 1: Ensure drilling machine has been locked out.
Step 2: Attach chain to lift points (3) on reamer carrier.
Step 3: Securely attach chain to hook on a suitable lifting device, such as a backhoe.
Step 4: Carefully lift reamer carrier and position reamer to align reamer with drill rod/starter drill rod.
Turnbuckle - Adjust
A turnbuckle (1) may be used for angular adjustment of reamer to drill rod/starter rod. Use
appropriate-sized chain and turnbuckle for reamer and reamer carrier weight.
WARNING: Do not lift a reamer that exceeds the weight limit of the
carrier.
WARNING: Falling load can injure you.
Do not work under raised load.
