D7x11 Series II Navigator Directional Drill Controls 20-13

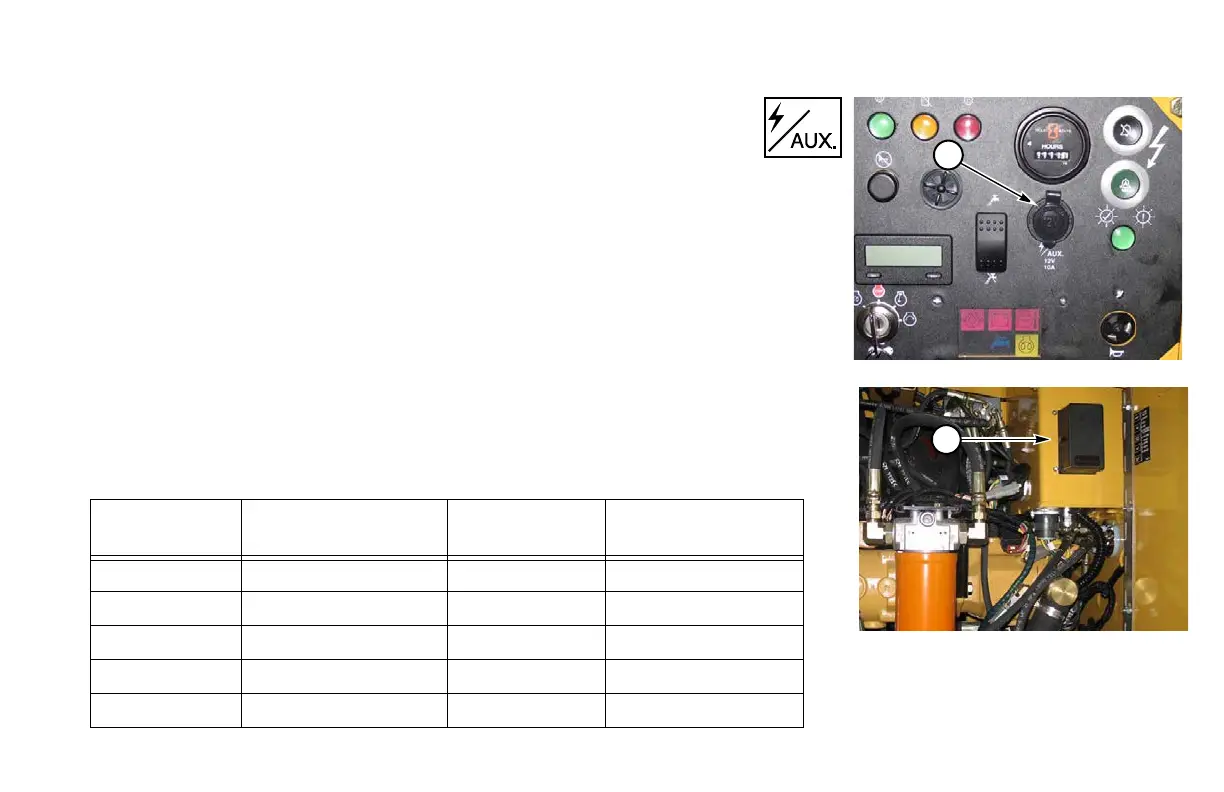

AUXILIARY OUTLET
FUSES
Fuses (1) protect electrical circuits and are located inside the engine compartment.
When replacing them, use fuses with the correct rating to prevent damaging electrical
system.
(1) 12-Volt Accessory Outlet
Use connector (1) to operate a 12-volt 150-watt electrical accessory.
A 15-amp breaker protects the circuit.
Fuse
Location
Function
Fuse
Location
Function
F01-10A Starter F02-10A Engine Functions
F03-10A Auxiliary F04-15A DSR
F05-10A Remote Lockout F06-20A Electric Fan
F07-10A Spare F08-10A Spare
F09-15A Spare F10-20A Spare
1
1
