30-4 Overview D7x11 Series II Navigator Directional Drill
Remote Lockout - Hydraulic Lockout Test
The Remote Lockout system is equipped to operate as either a hydraulic lockout (default)
or an engine shutdown system. Refer to “Hydraulic Lockout or Engine Shutdown Option,”
page 30-6.
Step 1: Start machine and remain in operator’s seat.

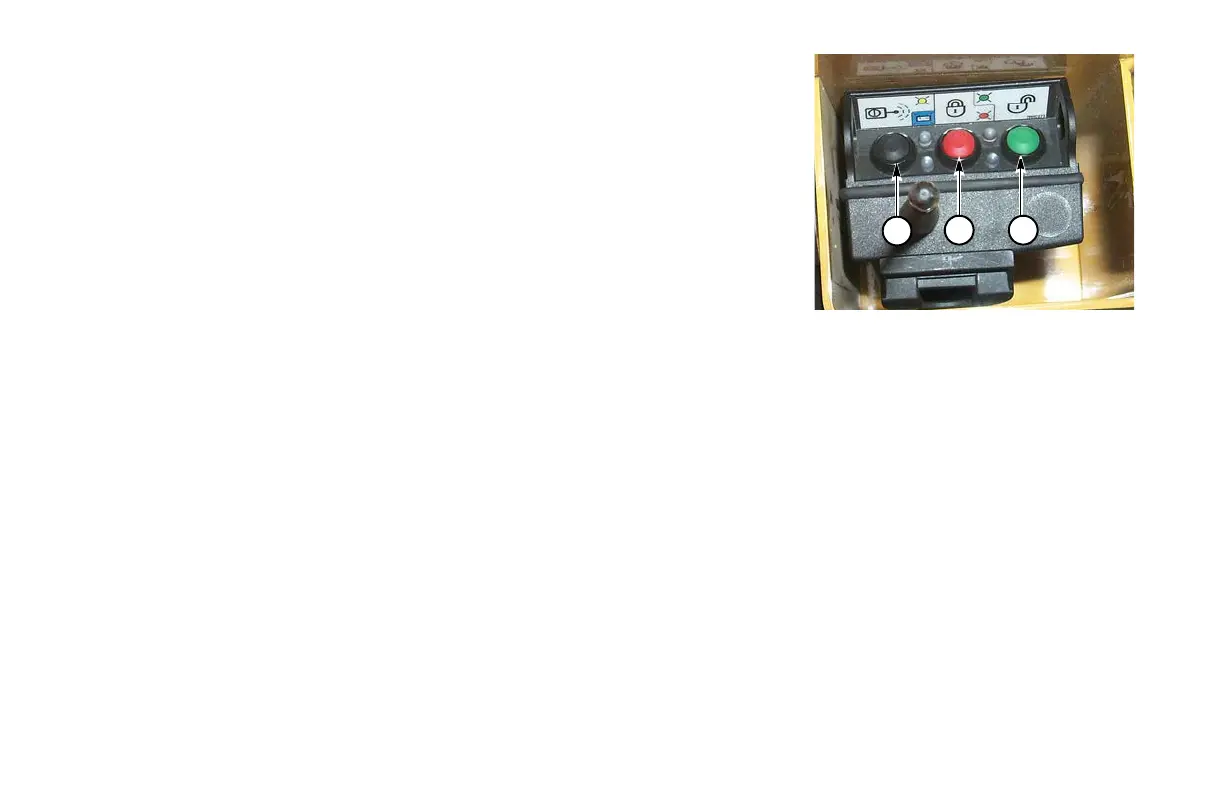

Step 2: Press and hold black Power On/Off Button (1) for two seconds.
Step 3: Press and hold green Run Button (3) for two seconds. Green light will
illuminate.
NOTE: Machine is now in Drill mode.
Step 4: Test thrust and rotation controls. They should work.
Step 5: Press and hold red Lockout Button (2) for two seconds. Red light will illuminate.
NOTE: Machine is now in Lockout mode.
Step 6: Test lockout of thrust and rotation by moving Thrust and Rotation Levers out of NEUTRAL. Thrust
and Rotation must not function. If Thrust or Rotation moves, contact your Vermeer dealer.
After successful Lockout test, press and hold the green button (3) for two seconds to return to Drill mode.
IMPORTANT: Perform Remote Lockout Test before drilling each day.
1
2 3
4_00
