30-8 Overview D7x11 Series II Navigator Directional Drill

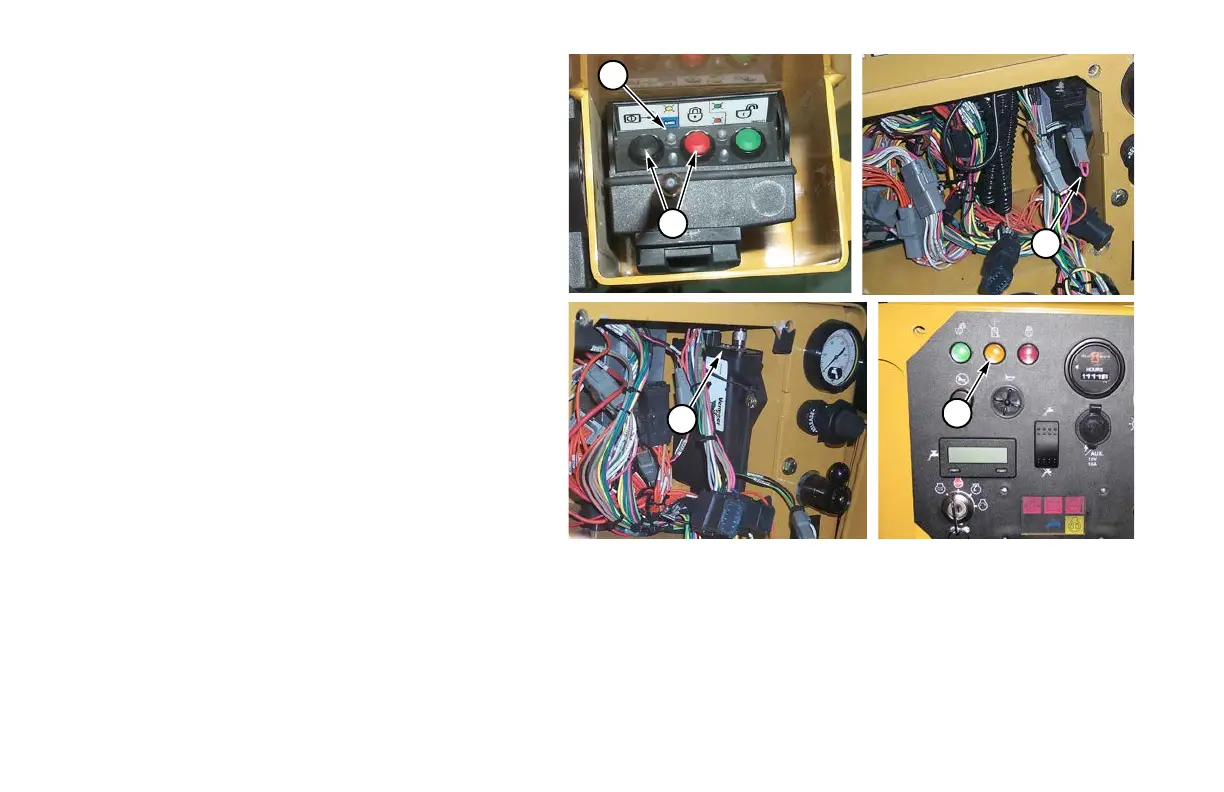

REMOTE REGISTRATION
If the Remote Lockout system base or transmitter are
replaced, registration of the two units must take place.
Step 1: Turn remote transmitter ON.
Step 2: Press and hold red Lockout and black Power
On/Off Buttons (1) until yellow “No
Communications” light (2) begins to double
flash. Remote is in the Registration mode
Step 3: Turn Ignition Switch to ON. Wait for more than
five seconds.
NOTE: Engine does not need to be running.
Step 4: Remove four bolts and control panel.
Step 5: Remove 2-pin jumper (3) used to select Engine
Shutdown or Hydraulic mode. Wait for 3
seconds.
Step 6: Install jumper in same position.
In about three seconds Light F1 on the base controller (4)
begins to double flash red. Base controller is in
Registration mode.
NOTE: Yellow light (5) on control panel comes on, and yellow light on remote transmitter flashes.
Step 7: Wait for registration results. Within 10 to 30 seconds, the yellow “No communications” lights on the
remote and the machine should turn off. Remote is now registered to the base and all previous
registration has been erased. Close compartment.
