TVM Series Installation and Operation Handbook 226
Copyright © 2008, Harris Corporation
Appendix B ♦ Pinouts

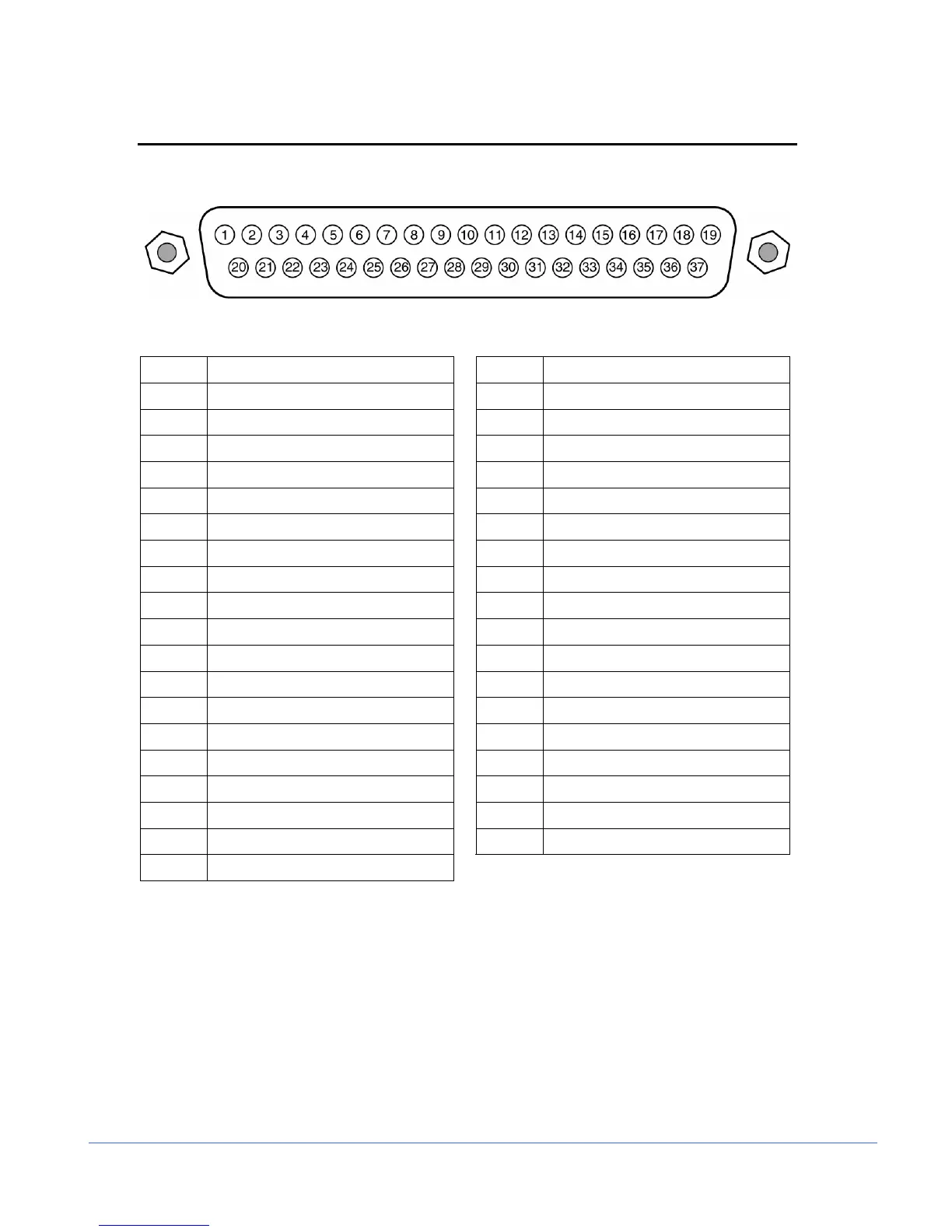

Figure B-1. ANALOG AUDIO IN/OUT 37-pin, Male, D-sub Connector For Audio Options
Table B-1. Pinouts for ANALOG AUDIO IN/OUT Connector and Audio Breakout Board
Pinout Signal Pinout Signal
1 Analog input 1 – 20 Analog input 1 +
2 Analog input 2 – 21 Analog input 2 +
3 Analog input 3 – 22 Analog input 3 +
4 GND 23 Analog input 4 +
5 Analog input 4 – 24 Analog input 5 +
6 Analog input 5 – 25 Analog input 6 +
7 Analog input 6 – 26 GND
8 Analog input 7 – 27 Analog input 7 +
9 Analog input 8 – 28 Analog input 8 +
10 GND 29 Analog output 1 +
11 Analog output 1 – 30 Analog output 2 +
12 Analog output 2 – 31 Analog output 3 +
13 Analog output 3 – 32 Analog output 4 +
14 Analog output 4 – 33 Analog output 5 +
15 Analog output 5 – 34 Analog output 6 +
16 Analog output 6 – 35 Analog output 7 +
17 Analog output 7 – 36 Analog output 8 +
18 Analog output 8 – 37 GND
19 GND
