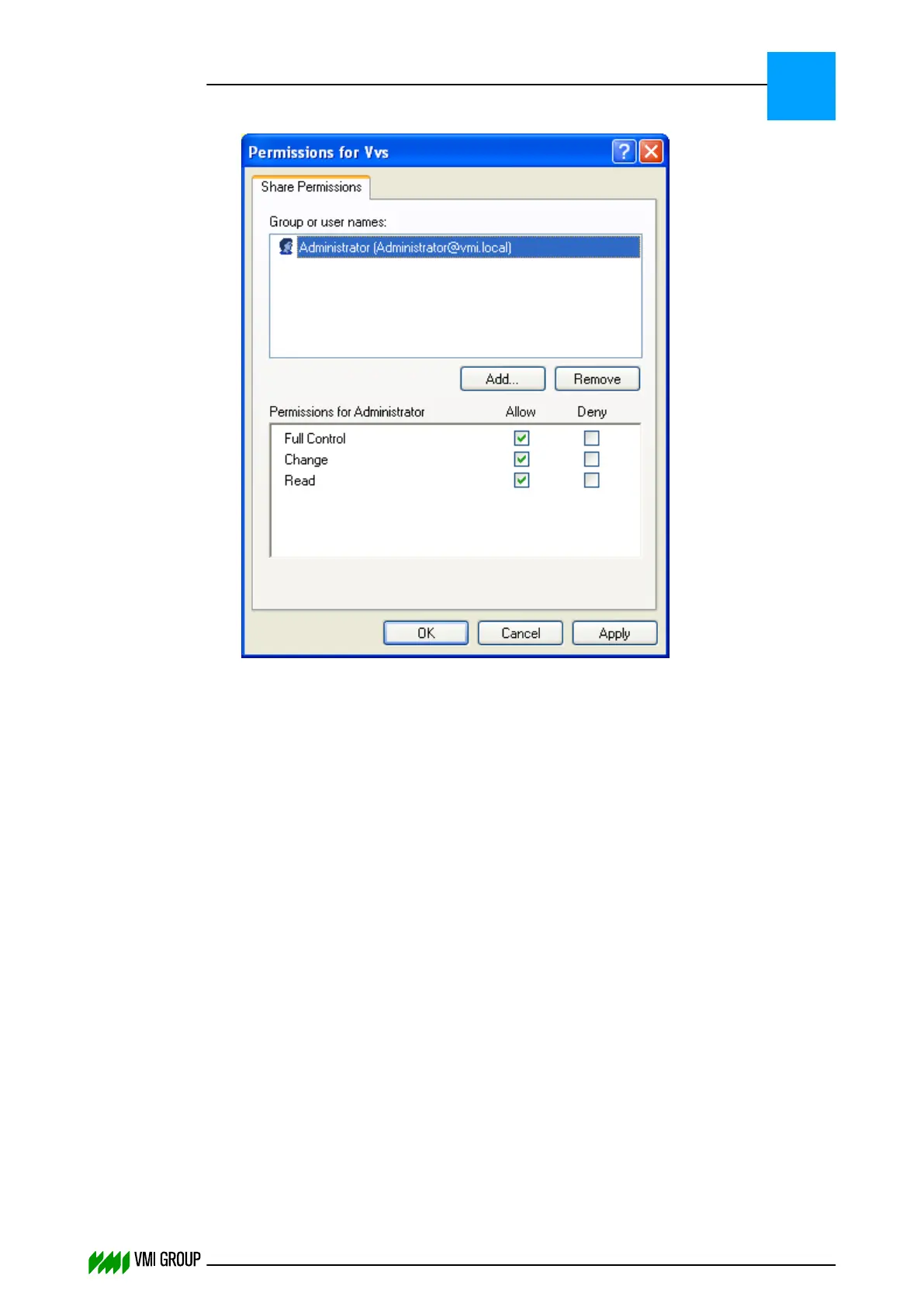

Make sure FULL CONTROL is checked for the account which is used by the VVSU

client.

TROUBLESHOOTING

Communication

THINKING FORWARD

VMI Vision System VVS (OL82) VVSX 13.0.12.0, VVSU 3.0.6 / 4 / 2016-07-11 / pd#175592

8-7
