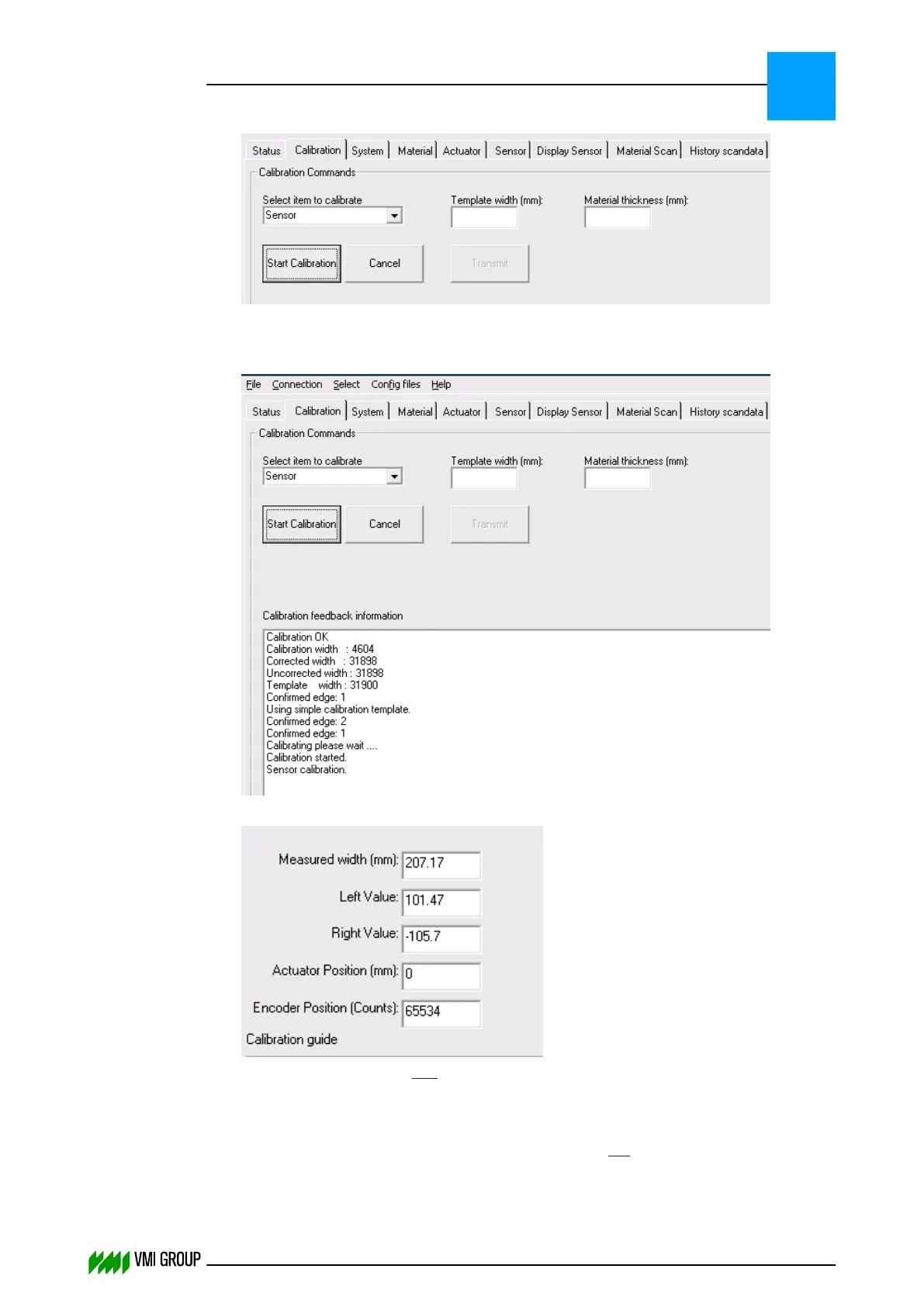

Click START CALIBRATION.
8. Check the CALIBRATION FEEDBACK INFORMATION window for any error during
the calibration process.
When the calibration is successful the message Calibration OK is shown.
9.
Check the LEFT VALUEandRIGHT VALUE.
The values must be equal with a maximum tolerance of 2 mm.
If the LEFT VALUE and RIGHT VALUE difference is within the tolerance of 2 mm, the
calibration is finished.
If the LEFT VALUE and RIGHT VALUE difference is not within the tolerance of 2 mm,
proceed with the next step.
