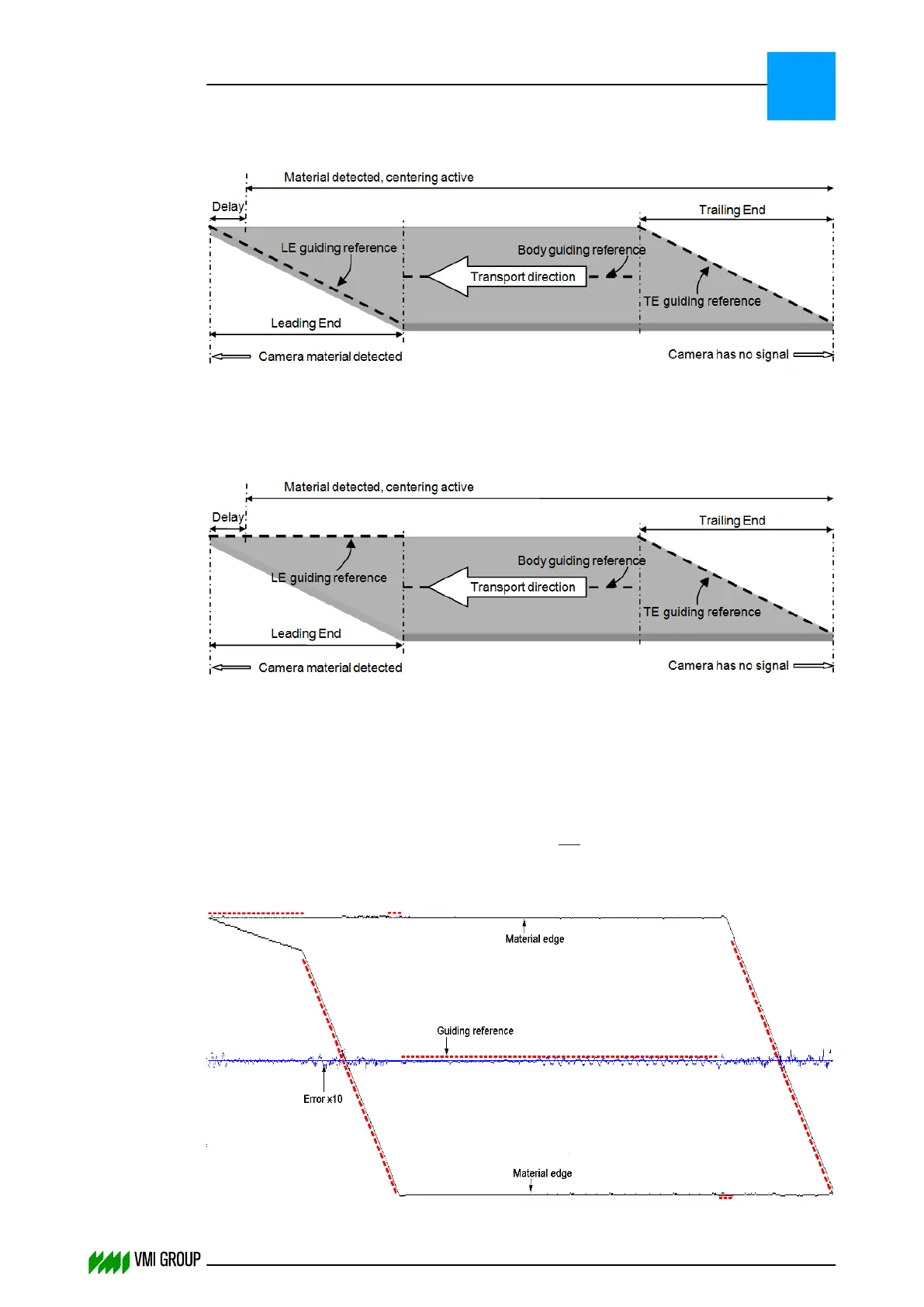

Splice guiding (Algorithm selection = 100%)
In the Leading End and Trailing End, the centering set point is the splice line of the breaker
material.
LE side and TE splice guiding (Algorithm selection = 200%)
In the Leading End, the centering set point is the straight edge, In the Trailing End
the centering set point is the splice line of the breaker material.
Algorithm selection < 0%
Algorithm selection settings < 0% are used for measuring materials:
● -1% = guiding is not active, material clamps are functioning.
● -2% = guiding is not active, material clamps are not functioning.
6.2.1.7 Material scan example
