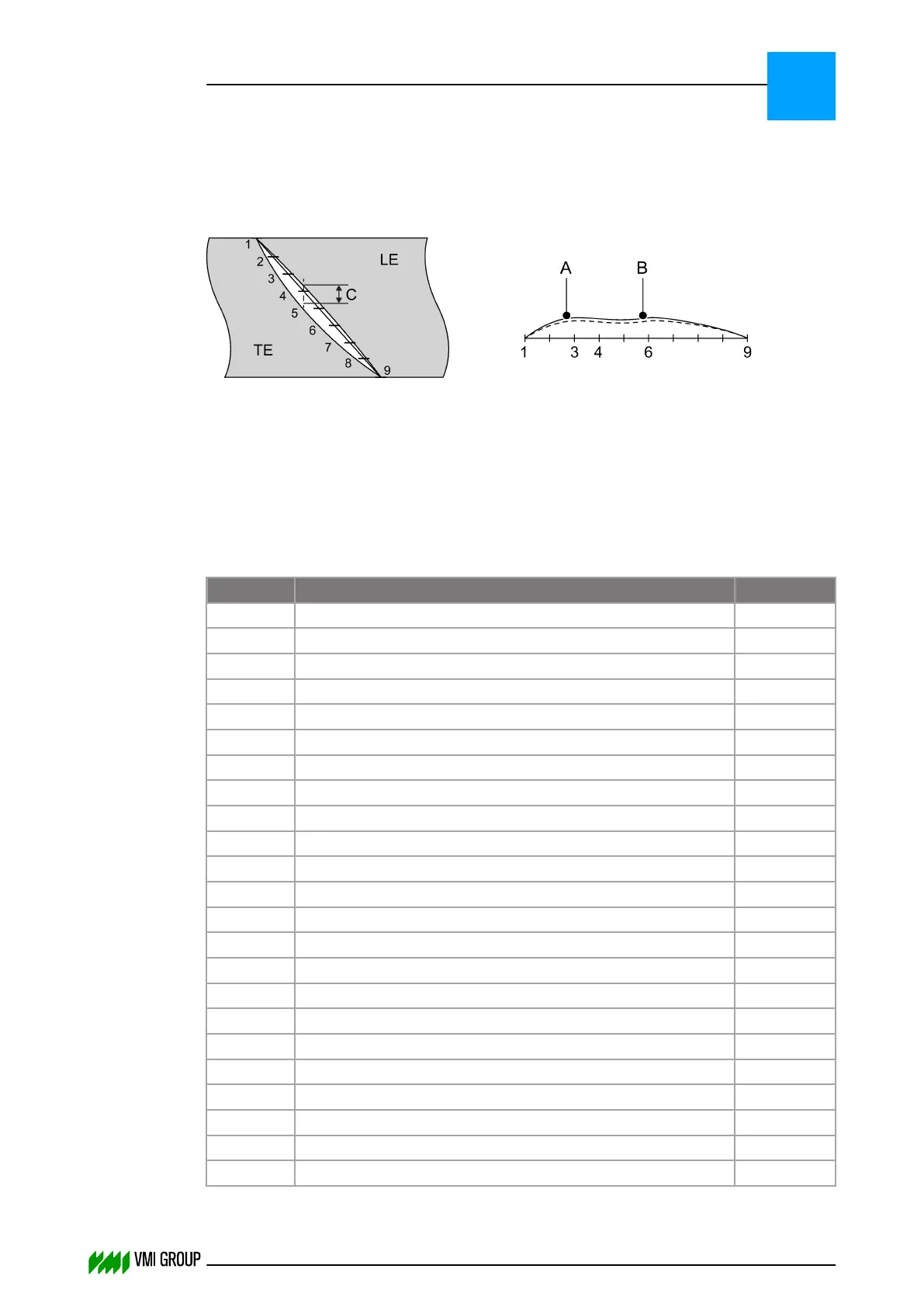

5. Enter approximately 80% of the largest value (C) for the parameter where this value
is measured (for example, location 4).
6. Apply a new breaker on the B&T drum.
7. Check the splice.
A Total splice
B Second correction
8. To close the splice, also enter approximately 70% of the remaining splice peak values
(for example, for the locations 3 and 6).
6.2.2 Material parameters for Carcass
The length of the carcass component parameters buffer is 50 words.
The parameter list is divided in 5 groups, one for each carcass component.
Word Parameter Dimension
0 Offset Pre Assembly 0.1 mm
1 Pre Assembly width 0.1 mm
2 Pre Assembly outer tolerance 0.1 mm
3 Pre Assembly inner tolerance 0.1 mm
4 Pre Assembly tilt tolerance 0.1 mm
5-9 Spare
10 Offset Body Ply 1 0.1 mm
11 Body Ply 1 width 0.1 mm
12 Body Ply 1 outer tolerance 0.1 mm
13 Body Ply 1 inner tolerance 0.1 mm
14 Body Ply 1 tilt tolerance 0.1 mm
15-19 Spare
20 Offset Body Ply 2 0.1 mm
21 Body Ply 2 width 0.1 mm
22 Body Ply 2 outer tolerance 0.1 mm
23 Body Ply 2 inner tolerance 0.1 mm
24 Body Ply 2 tilt tolerance 0.1 mm
25-29 Spare
30 Offset Sidewall 0.1 mm
31 Sidewall width 0.1 mm
32 Sidewall outer tolerance 0.1 mm
33 Sidewall inner tolerance 0.1 mm
34 Sidewall tilt tolerance 0.1 mm
PARAMETERS
Parameter buffer
6
THINKING FORWARD
VMI Vision System VVS (OL82) VVSX 13.0.12.0, VVSU 3.0.6 / 4 / 2016-07-11 / pd#175592
6-10
