Word Parameter Dimension
35-39 Spare
40 Offset Innerliner 0.1 mm
41 Innerliner width 0.1 mm
42 Innerliner outer tolerance 0.1 mm
43 Innerliner inner tolerance 0.1 mm
44 Innerliner tilt tolerance 0.1 mm
45-49 Spare

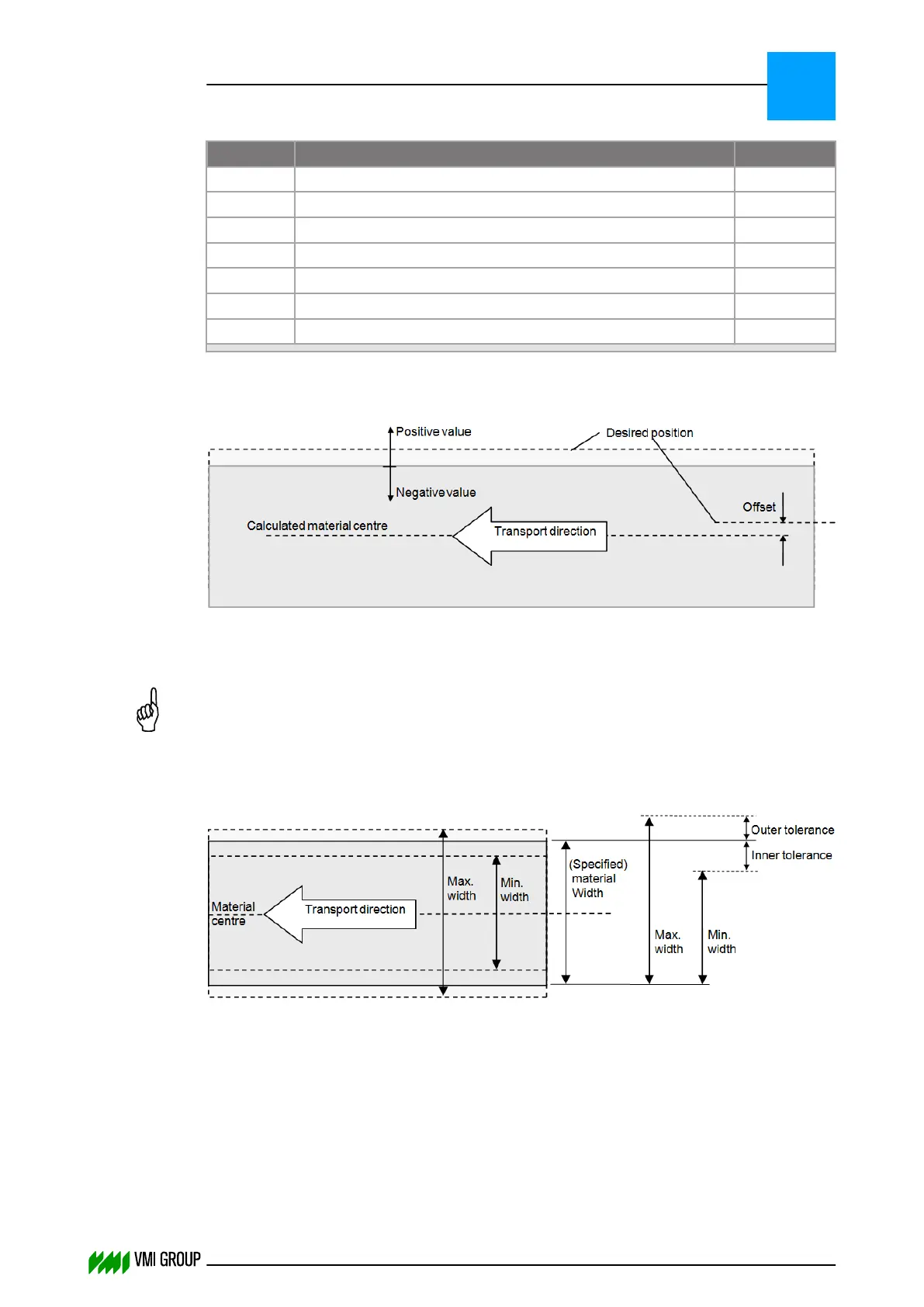

6.2.2.1 Offset
The Offset parameter shifts the center line to the right (positive value) or to the left
(negative value).
NOTICE
Left / right is determined by the flow of the material.
6.2.2.2 Width and width tolerances
Material width + outer tolerance = maximum allowed material width.
Material width – inner tolerance = minimum allowed material width.
The measured material width is the running average over 21 samples.
When the measured material width is outside the tolerance, an error message is given.
PARAMETERS
Parameter buffer
6
