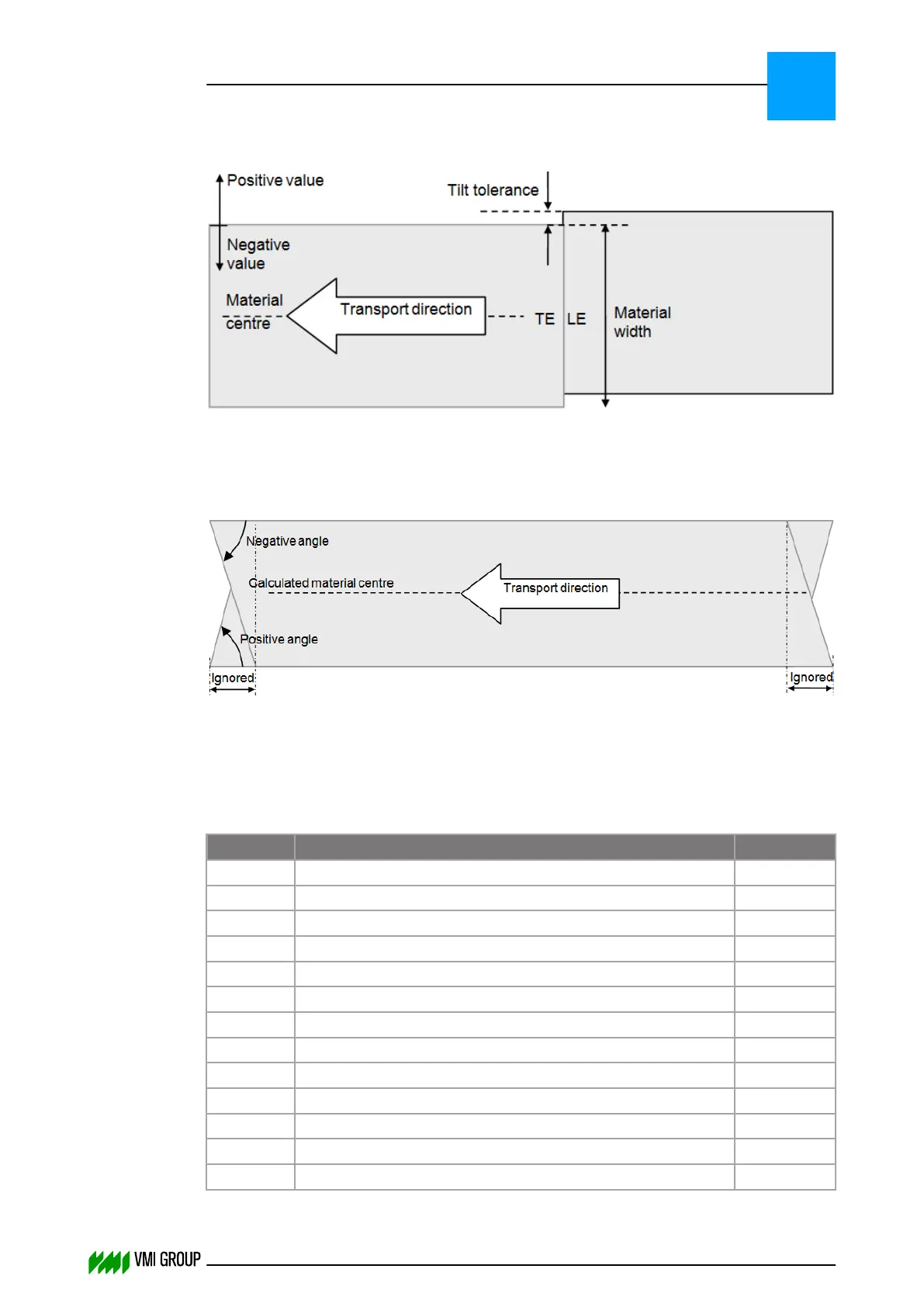

6.2.2.3 Tilt tolerances
The tilt tolerance is the jump between Trailing End and Leading End when the material is
applied to the drum, due to an angled position on the conveyor.
6.2.2.4 Material angle
When material angle is positive, the leading end tip is on the left-hand side.
When material angle is negative, the leading end tip is on the right-hand side.
6.2.3 Material parameters for Tread
The length of the tread parameter buffer is 15 words
Word Parameter Dimension
0 Spare
1 Offset Body 0.1 mm
2 Spare
3 Offset LE 0.1 mm
4 Spare
5 Spare
6 Spare
7 Thickness 0.1 mm
8 Tread width 0.1 mm
9 Spare
10 Tread outer tolerance 0.1 mm
11 Tread inner tolerance 0.1 mm
12 Spare
PARAMETERS
Parameter buffer
6
THINKING FORWARD
VMI Vision System VVS (OL82) VVSX 13.0.12.0, VVSU 3.0.6 / 4 / 2016-07-11 / pd#175592
6-12
