Creating a Gradient Table 107
Accessing the Program Gradient Screen
Press the Program Table function key to display the PowerLine Controller Program
Gradient screen (Figure 6-5).

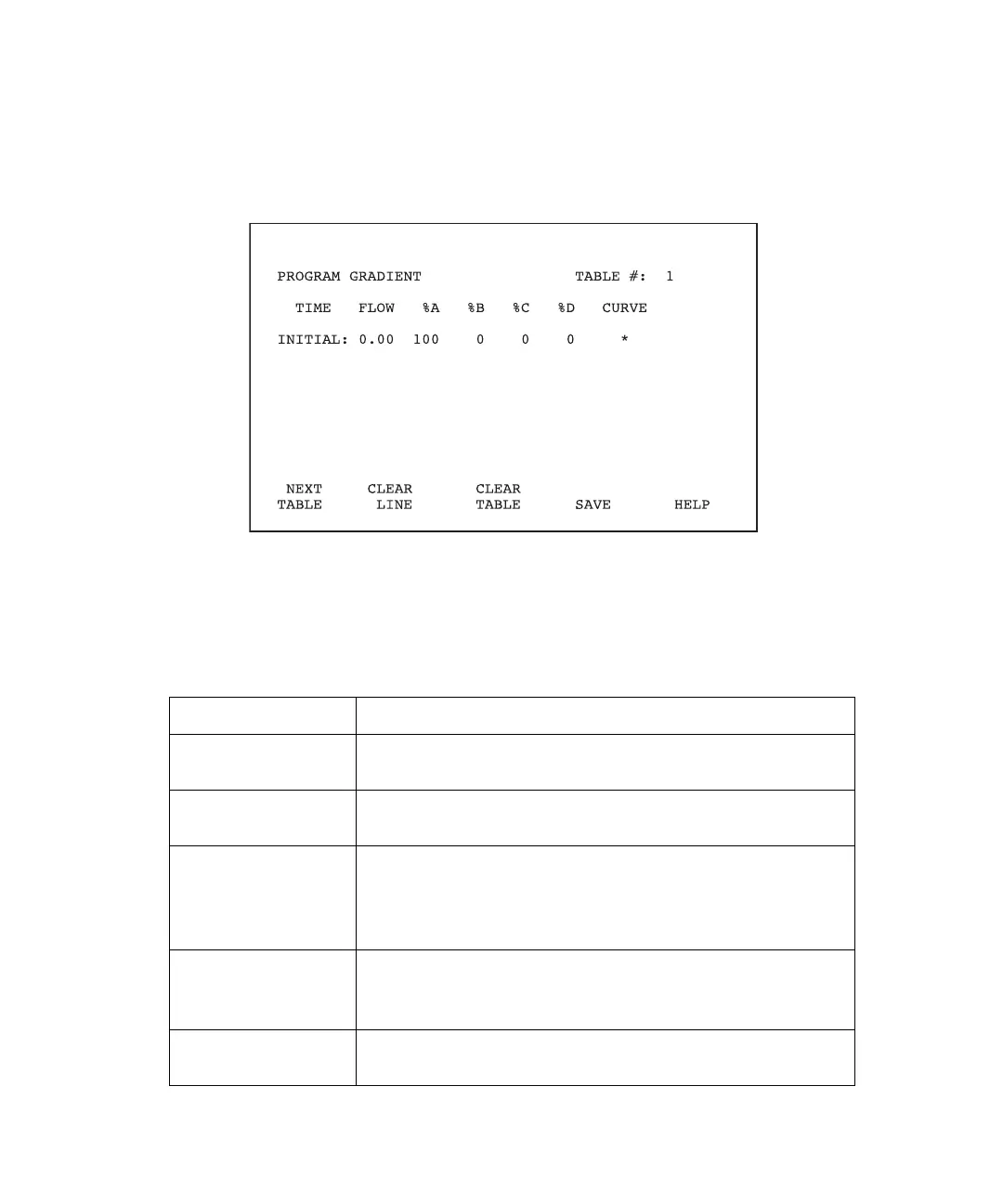

Figure 6-5 PowerLine Controller Program Gradient Screen
In addition to the gradient table parameters, there are five active screen keys. These screen
keys have the functions described in Table 6-1.
Table 6-1 Program Gradient Screen Keys
Key Function
Next Table Cycles through the Program Event screen, Detector Table
screen, and Program Gradient screen.
Clear Line Clears the line on which the cursor currently resides. The
line is not erased from permanent memory.
Clear Table Clears the entire table currently displayed on the screen and
returns the Initial conditions line to default status. The table
is not erased from permanent memory until a new table is
saved.
Save Saves the table currently displayed and erases the previous
values. You must save the table before advancing to the
next screen.
Help Displays the Help screen associated with the Program
Gradient screen.
