2 Introduction
– Linear change
– Four convex gradient curves
– Four concave gradient curves
• System control of PowerLine detectors and autoinjectors through IEEE-488
interface
• RS-232 serial communications interface for connection to optional integrator
• Optional shelf unit to house system modules
• Polymeric and stainless steel flow path with low-permeability CO
2
/O
2
tubing
• Optional column heater
Figure 1-1 illustrates the 600E system. Table 1-1 describes its major modules.

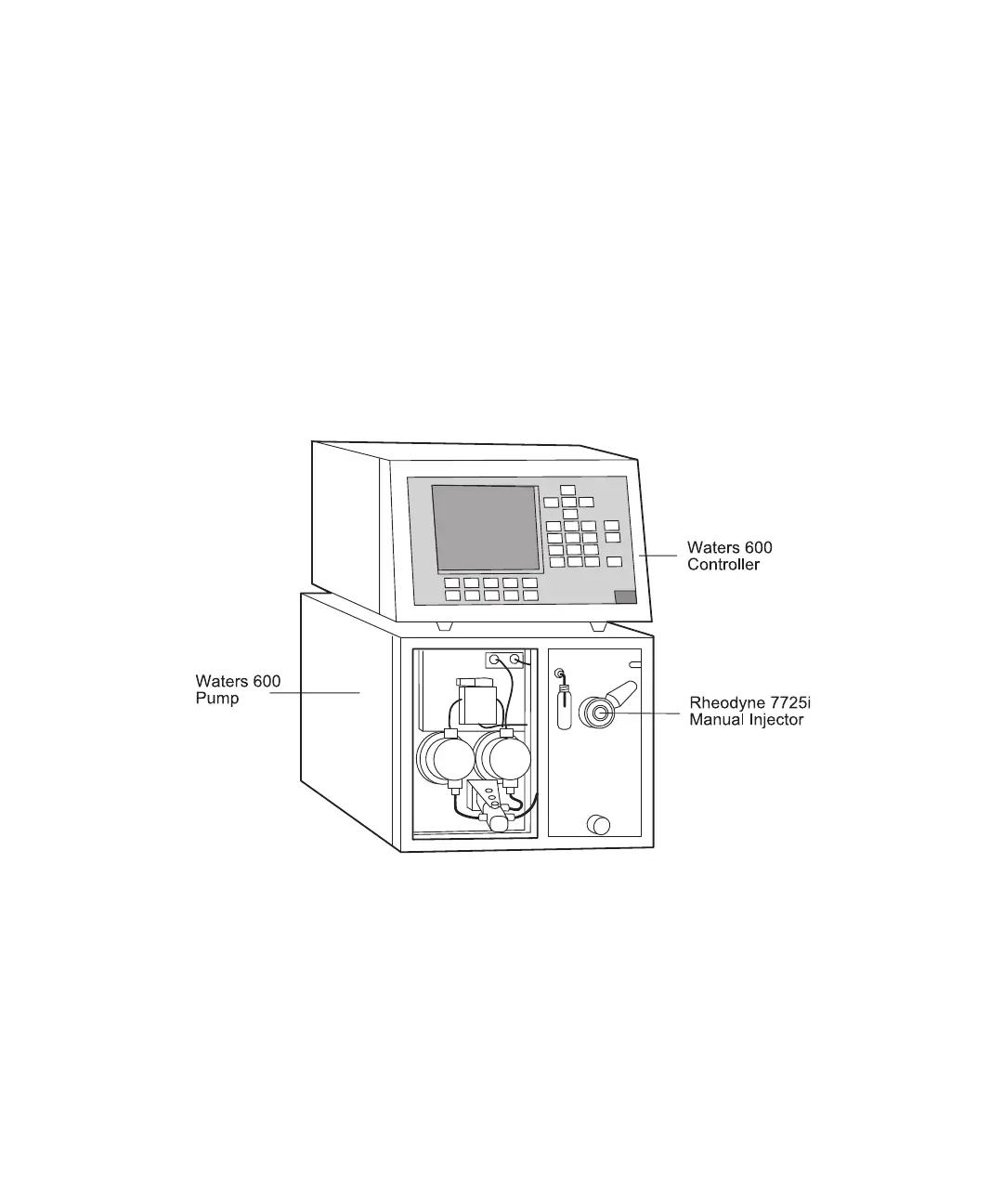

Figure 1-1 Waters 600E System
