SuperRack SoundGrid / User Guide
108

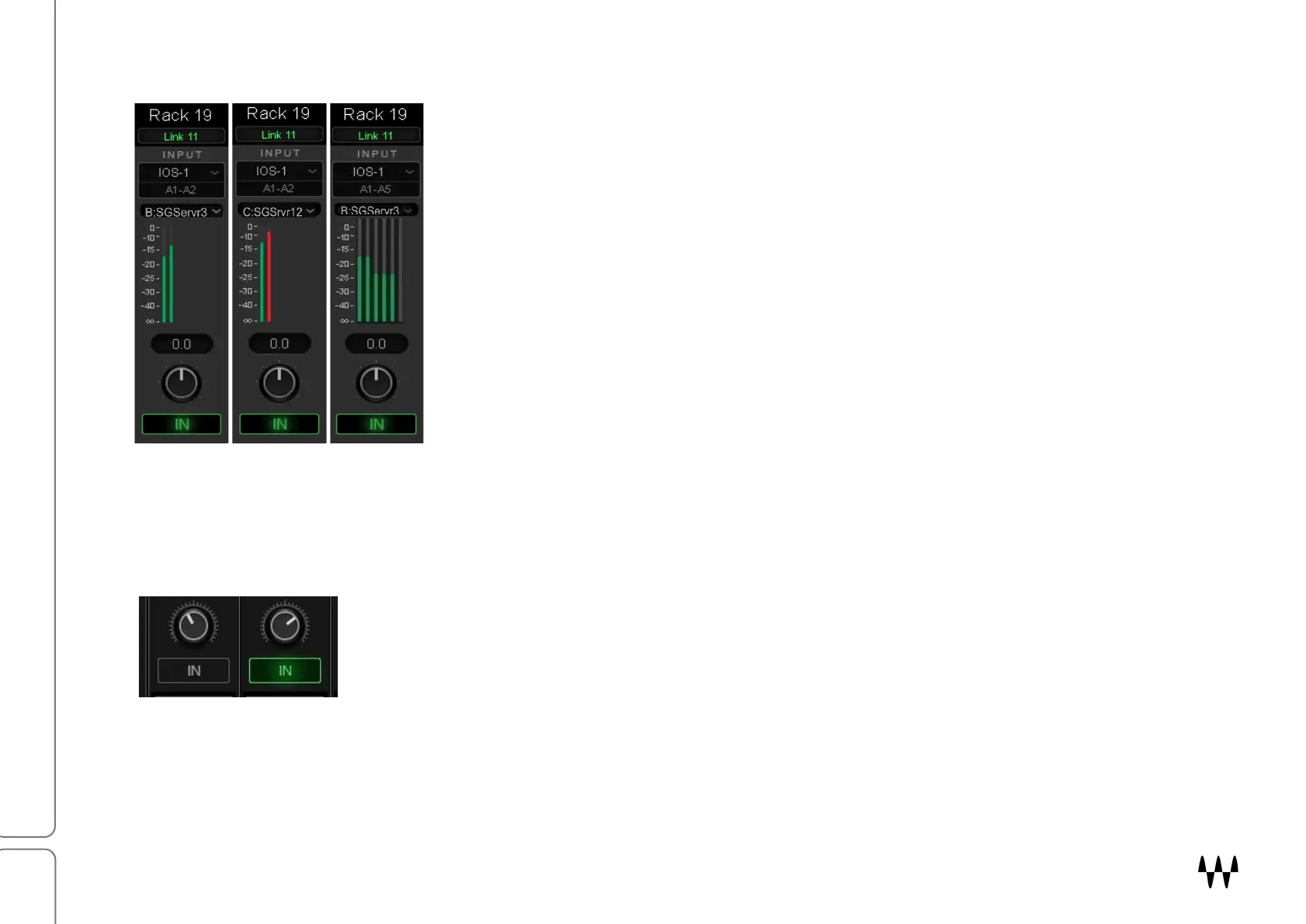

Input meter
Each rack has a full-scale Input meter. The number of meter bars reflects the
format of the I/O device. The meter on the far left indicates a stereo input, and
therefore a stereo rack.
Meters turn red (middle image) when the input signal is clipping. Behavior for
clip level and clip hold are controlled in the Settings page. On the right is a
5.1-channel input.
Input gain is controlled with the knob below the meter. Alt+Click on the knob
to reset.
Input Gain and Bypass
Use the Input Gain knob to adjust input gain to the rack. Knob position is indicated in the value box.
Range: -18 dB to +18 dB
The IN switch serves as the rack’s bypass.
IN: Normal rack operation
Not IN: Rack bypass
