SuperRack
So
undGrid /
User Guide
62

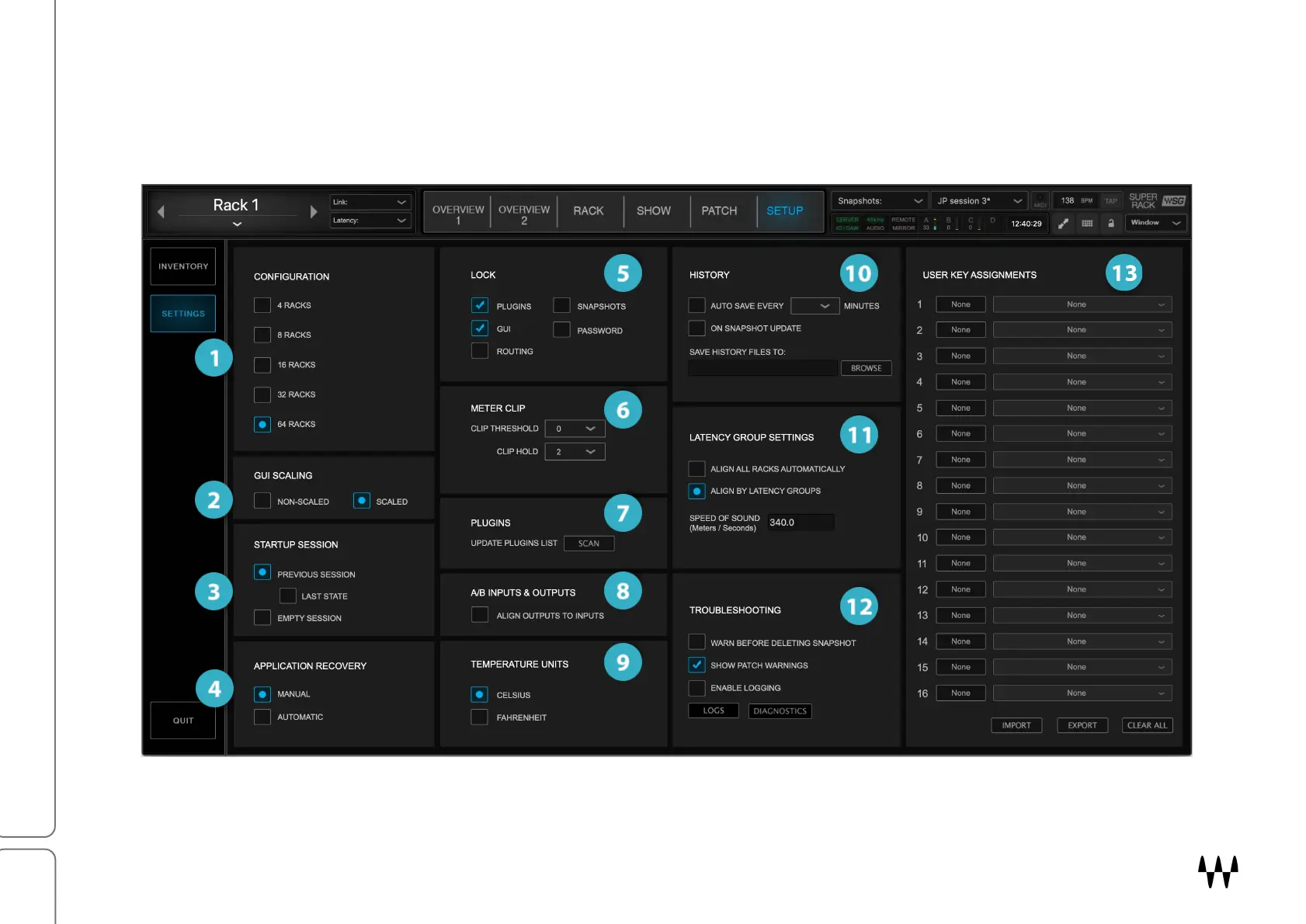

Settings Page
Use the Se
ttings page
to set over
all system pr
eferenc
es and to ass
ign user key
s that can be r
ecalled
in the Rack
and Overvi
ew windows.
61
63
Table of Contents
Table of Contents
2
Introduction
7
Part 1: Getting Started
8
Software Installation
8
Hardware Configurations
10
Connecting the Hardware
13
Superrack Soundgrid I/O Device Assignment
14
Routing I/O Channels to Racks
16
Inserting Plugins
18
Floating Panels
19
Detaching a Panel
19
Detached Plugin Panes
20
Hot Plugins Panel
20
Tear-Off Windows
21
System Requirements
21
Part 2: Top Bar
22
Left Panel: Rack Controls
23
Rack Name
23
Racks Menu
23
Rack Select
24
Racks Menu: Import and Export Presets
24
Racks Menu: Save and Copy Presets
25
Racks Menu: Copy/Paste Presets
25
Racks Menu: Rack Recall and Auto Route
26
Current Preset
26
Link Group Assignment
27
Latency Group Assignment
28
Center Section: Window Selection Tabs
29
Overview 1 and Overview 2 Windows
29
Rack Window
29
Show Window
30
Patch Window
30
Setup Window
31
Tearing off Windows for Multiple Displays
31
Right Panel: Snapshots and Utilities
32
Snapshots Menu
32
Session Menu
33
Status Panel
33
Indicator
33
Color
33
Status
33
Indicator
34
Color
34
Status
34
Utilities
35
Clock
35
MIDI Activity LED
35
Global Tempo Section
35
Full Screen Mode
35
On-Screen Keyboard
36
Lock Button
36
Floating Panels List
36
Part 3: Setup Window
37
Assigning Devices: Inventory Page
38
Network Control Section (Top)
38
Assignment Slots
40
Device Rack Elements
41
Assigning I/O Devices
42
I/O Device Icon Indicators
43
I/O Devices Menu Items
46
Setting Clock Master
47
Certain Device Menu Items Apply Only to Drivers
48
Working with Multiple Systems
49
Servers
54
Assigning Servers
54
Redundant Servers
55
Selecting a Server Group for a Rack
55
Server Assignment Menu: Other Functions
56
Server Status
57
Routing View Panel
59
Detaching the Routing View Panel
60
Assigning Controllers
61
Settings Page
62
Part 4: Patch Window
68
Patch Views
68
Patching Frameworks
69
Patch Grid
72
Managing Latency in Superrack
73
Latency Compensation
74
Latency Groups
75
Latency Group Alignment
76
Part 5: Rack Window
77
Selecting a Rack
78
Rack Input Section
78
Rack Output Section
80
Routing Racks Automatically
82
Selecting a Server Group
83
Inserting a Plugin
84
Plugins Chainer
85
Plugins Can Change the Rack Size
86
Plugin Pane
87
Managing Plugins
88
The Plugin Menu
88
Basic Plugin Menu
88
Expanded Plugin Menu
89
External Inserts
93
Recall-Safe Plugin
94
Plugin Position in the Rack
94
Touch and Slide Control
95
Rack Presets
96
Hot Plugins Panel
96
Part 6: Overview Windows
97
Layers
100
Factory Layers
100
Custom Layers
100
Wide View Layer
102
Modes
103
Racks
104
Selecting Rack Input
105
Selecting a Server Group
107
Plugin Chainer
109
Inserting a Plugin
109
Other Plugin Menu Items
110
Managing Plugin Icons in the Overview Window
111
Output Section
112
Dugan Automixer
113
Part 7: Show Window
115
Sessions Page
116
Sessions List
118
Saving a Session
118
Loading a Session
119
Resolving Load Errors
120
Templates
122
Auto-Save Sessions (History)
122
Snapshots Page
124
Snapshots List
126
Storing Snapshots in the Snapshots List
126
Recalling Snapshots from the Snapshots List
127
Changing the Order of the Snapshots List
127
Storing a Snapshot with the Top Bar Snapshot Menu
127
Hot Snapshots
128
Assigning Remote Ids to Snapshots
129
Scope Page
130
Scope Parameters
131
Recall Safe Page
132
Recall Safe for Specific Plugins
133
Rack Recall Safe
133
Supplementary Material
134
Controlling Superrack Remotely
134
Assigning Controls
135
MIDI Controller
136
Plugin MIDI Mapping
138
Console Remote Control
140
Touch and Turn
141
Console Mirroring
142
Keyboard Shortcuts and Modifiers
144
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Waves SuperRack SoundGrid and is the answer not in the manual?
Ask a question
Waves SuperRack SoundGrid Specifications
General
Brand
Waves
Model
SuperRack SoundGrid
Category
Recording Equipment
Language
English
